Fraunhofer Institute for Applied Polymer Research IAP, Geiselbergstr. 69, 14476 Potsdam, Germany.
Fraunhofer Institute for Telecommunications, Heinrich Hertz Institute, HHI, Einsteinufer 37, 10587 Berlin, Germany.
Biosensors (Basel). 2019 Feb 12;9(1):24. doi: 10.3390/bios9010024.

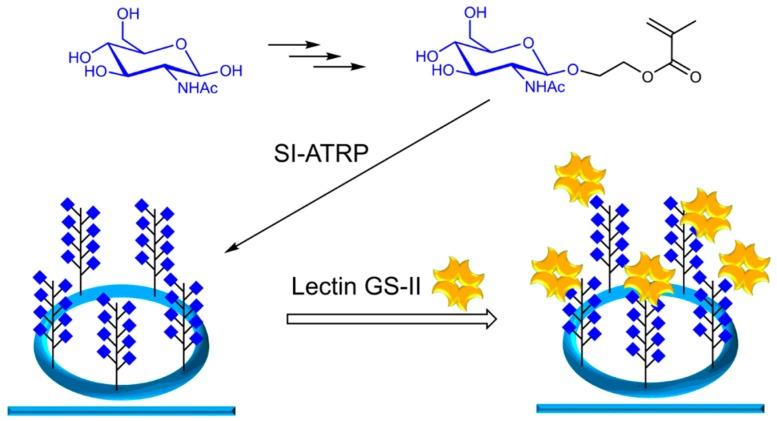

We fabricated a simple sensor system for qualitative analysis of glycan-mediated interactions. Our main aim was to establish a ronbbust system that allowes drop-tests without complex fluidics. The test system should be usable in routine analytics in the future and bear sufficient sensitivity to detect binding events in the nanomolar range. For this, we employed optical ring resonators and coated them with high avidity glycopolymers based on -acetylglucosamine (GlcNAc). These hydrophilic polymers are also very feasible in preventing unspecific protein adsorption. Drop-on binding studies with suitable lectins showed that glycopolymers were specifically recognized by a lectin with GlcNAc-specificity and prevented unspecific protein interactions very well. The system could be elaborated in the future for detection of glycan-mediated interactions in the biomedical field and is promising in means of multiplexed analysis and usage in routine analysis.
我们构建了一个简单的传感器系统,用于定性分析糖基介导的相互作用。我们的主要目的是建立一个允许进行无需复杂流体力学的跌落测试的稳健系统。该测试系统未来应可用于常规分析,并具有足够的灵敏度以检测纳摩尔范围内的结合事件。为此,我们使用了光学环形谐振器,并在其上涂覆了基于 N-乙酰葡萄糖胺(GlcNAc)的高亲和力糖聚合物。这些亲水性聚合物在防止非特异性蛋白质吸附方面也非常有效。用合适的凝集素进行的液滴结合研究表明,糖聚合物被具有 GlcNAc 特异性的凝集素特异性识别,并能很好地防止非特异性蛋白质相互作用。该系统未来可用于生物医学领域中糖基介导的相互作用的检测,并有望用于多重分析和常规分析。
