He Zhiqi, Alexandridis Paschalis
Department of Chemical and Biological Engineering, University at Buffalo, The State University of New York (SUNY), Buffalo, NY 14260-4200, USA.
Polymers (Basel). 2017 Dec 28;10(1):32. doi: 10.3390/polym10010032.

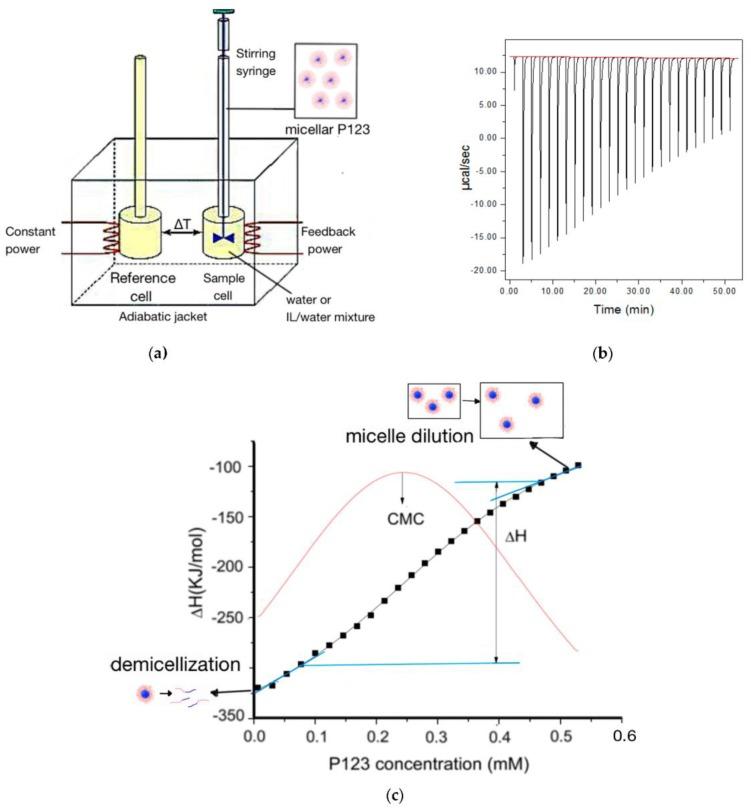

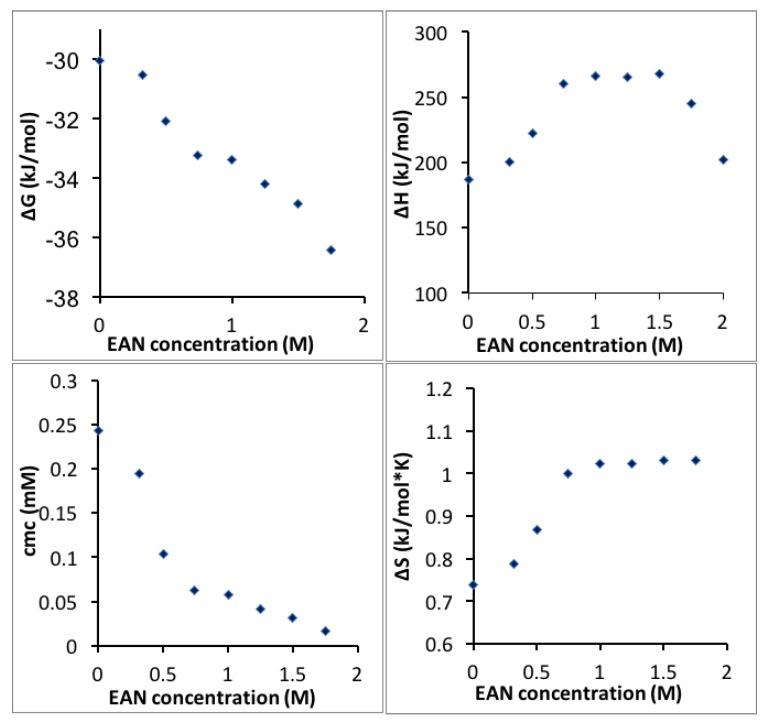

Poly(ethylene oxide)-poly(propylene oxide)-poly(ethylene oxide) (PEO-PPO-PEO) block copolymers (commercially available as Pluronics or Poloxamers) can self-assemble into various nanostructures in water and its mixtures with polar organic solvents. Ethylammonium nitrate (EAN) is a well-known protic ionic liquid that is expected to affect amphiphile self-assembly due to its ionic nature and hydrogen bonding ability. By proper design of isothermal titration calorimetry (ITC) experiments, we determined the enthalpy and other thermodynamic parameters of Pluronic P123 (EOPOEO) micellization in aqueous solution at varied EAN concentration. Addition of EAN promoted micellization in a manner similar to increasing temperature, e.g., the addition of 1.75 M EAN lowered the critical micelle concentration (CMC) to the same extent as a temperature increase from 20 to 24 °C. The presence of EAN disrupts the water solvation around the PEO-PPO-PEO molecules through electrostatic interactions and hydrogen bonding, which dehydrate PEO and promote micellization. At EAN concentrations lower than 1 M, the PEO-PPO-PEO micellization enthalpy and entropy increase with EAN concentration, while both decrease above 1 M EAN. Such a change can be attributed to the formation by EAN of semi-ordered nano-domains with water at higher EAN concentrations. Pyrene fluorescence suggests that the polarity of the mixed solvent decreased linearly with EAN addition, whereas the polarity of the micelle core remained unaltered. This work contributes to assessing intermolecular interactions in ionic liquid + polymer solutions, which are relevant to a number of applications, e.g., drug delivery, membrane separations, polymer electrolytes, biomass processing and nanomaterial synthesis.
聚环氧乙烷-聚环氧丙烷-聚环氧乙烷(PEO-PPO-PEO)嵌段共聚物(商业上称为普朗尼克或泊洛沙姆)在水及其与极性有机溶剂的混合物中可自组装成各种纳米结构。硝酸乙铵(EAN)是一种著名的质子离子液体,由于其离子性质和氢键能力,预计会影响两亲分子的自组装。通过对等温滴定量热法(ITC)实验进行适当设计,我们测定了在不同EAN浓度下,普朗尼克P123(EOPOEO)在水溶液中胶束化的焓和其他热力学参数。添加EAN促进胶束化的方式类似于升高温度,例如,添加1.75 M EAN可将临界胶束浓度(CMC)降低到与温度从20℃升高到24℃相同的程度。EAN的存在通过静电相互作用和氢键破坏了PEO-PPO-PEO分子周围的水溶剂化,使PEO脱水并促进胶束化。在EAN浓度低于1 M时,PEO-PPO-PEO胶束化的焓和熵随EAN浓度增加,而在EAN浓度高于1 M时两者均降低。这种变化可归因于在较高EAN浓度下EAN与水形成的半有序纳米域。芘荧光表明,混合溶剂的极性随EAN添加呈线性降低,而胶束核心的极性保持不变。这项工作有助于评估离子液体+聚合物溶液中的分子间相互作用,这与许多应用相关,例如药物递送、膜分离、聚合物电解质、生物质加工和纳米材料合成。
