Fu Lian-Hua, Liu Yan-Jun, Ma Ming-Guo, Zhang Xue-Ming, Xue Zhi-Min, Zhu Jie-Fang
Beijing Key Laboratory of Lignocellulosic Chemistry, College of Materials Science and Technology, Beijing Forestry University, Beijing 100083, China.
Department of Chemistry-Ångström Laboratory, Uppsala University, Uppsala 75121, Sweden.
Polymers (Basel). 2016 Sep 20;8(9):316. doi: 10.3390/polym8090316.

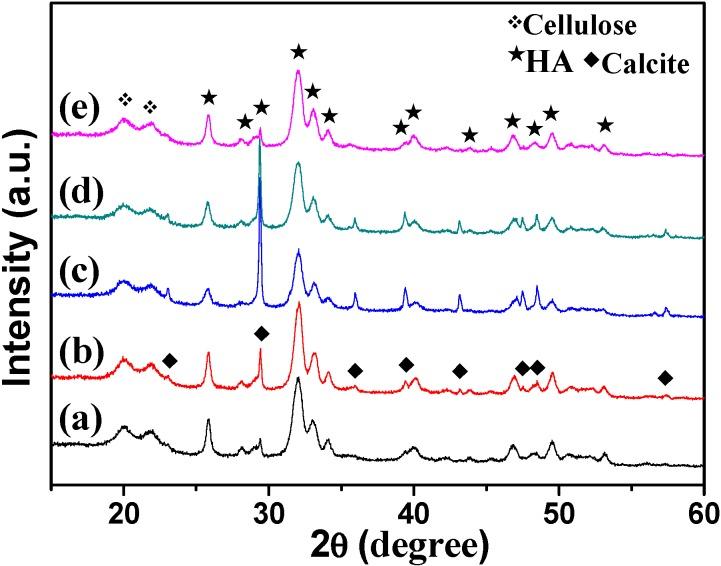

In this paper, we report a facile, rapid, and green strategy for the synthesis of cellulose/hydroxyapatite (HA) nanocomposites using an inorganic phosphorus source (sodium dihydrogen phosphate dihydrate (NaH₂PO₄·2H₂O)), or organic phosphorus sources (adenosine 5'-triphosphate disodium salt (ATP), creatine phosphate disodium salt tetrahydrate (CP), or D-fructose 1,6-bisphosphate trisodium salt octahydrate (FBP)) through the microwave-assisted hydrothermal method. The effects of the phosphorus sources, heating time, and heating temperature on the phase, size, and morphology of the products were systematically investigated. The experimental results revealed that the phosphate sources played a critical role on the phase, size, and morphology of the minerals in the nanocomposites. For example, the pure HA was obtained by using NaH₂PO₄·2H₂O as phosphorus source, while all the ATP, CP, and FBP led to the byproduct, calcite. The HA nanostructures with various morphologies (including nanorods, pseudo-cubic, pseudo-spherical, and nano-spherical particles) were obtained by varying the phosphorus sources or adjusting the reaction parameters. In addition, this strategy is surfactant-free, avoiding the post-treatment procedure and cost for the surfactant removal from the product. We believe that this work can be a guidance for the green synthesis of cellulose/HA nanocomposites in the future.
在本文中,我们报道了一种简便、快速且绿色的策略,通过微波辅助水热法,使用无机磷源(磷酸二氢钠二水合物(NaH₂PO₄·2H₂O))或有机磷源(腺苷 5'-三磷酸二钠盐(ATP)、磷酸肌酸二钠盐四水合物(CP)或 D-果糖 1,6-二磷酸三钠盐八水合物(FBP))来合成纤维素/羟基磷灰石(HA)纳米复合材料。系统研究了磷源、加热时间和加热温度对产物的相、尺寸和形貌的影响。实验结果表明,磷酸盐源对纳米复合材料中矿物质的相、尺寸和形貌起着关键作用。例如,使用 NaH₂PO₄·2H₂O 作为磷源可获得纯 HA,而所有的 ATP、CP 和 FBP 都会产生副产物方解石。通过改变磷源或调整反应参数,可获得具有各种形貌(包括纳米棒、伪立方、伪球形和纳米球形颗粒)的 HA 纳米结构。此外,该策略无需表面活性剂,避免了从产物中去除表面活性剂的后处理过程和成本。我们相信这项工作可为未来纤维素/HA 纳米复合材料的绿色合成提供指导。
