Lee Li-Ting, Yang Chun-Ting
Department of Materials Science and Engineering, Feng Chia University, Taichung 40724, Taiwan.
Polymers (Basel). 2016 Dec 21;8(12):444. doi: 10.3390/polym8120444.

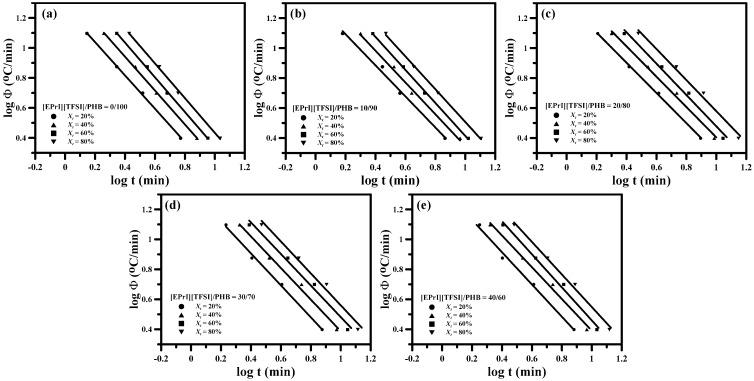

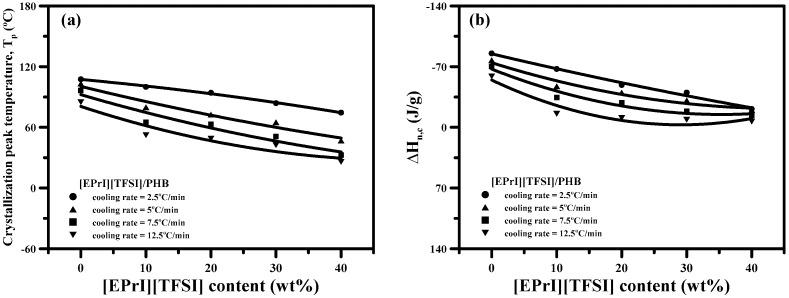

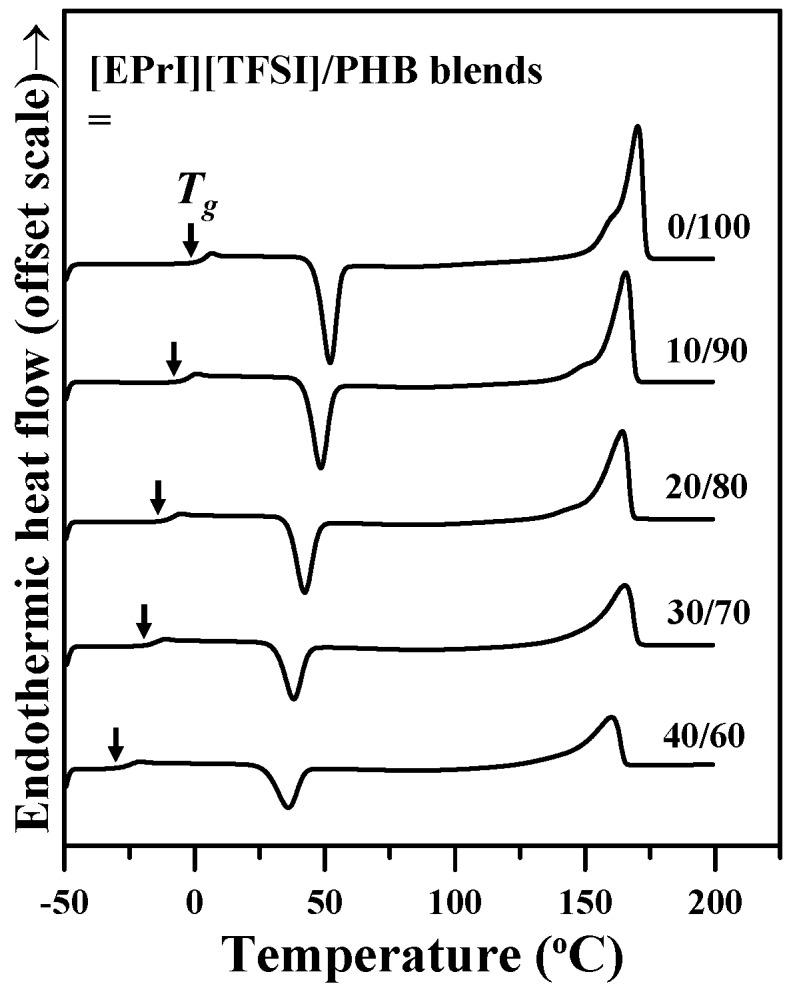

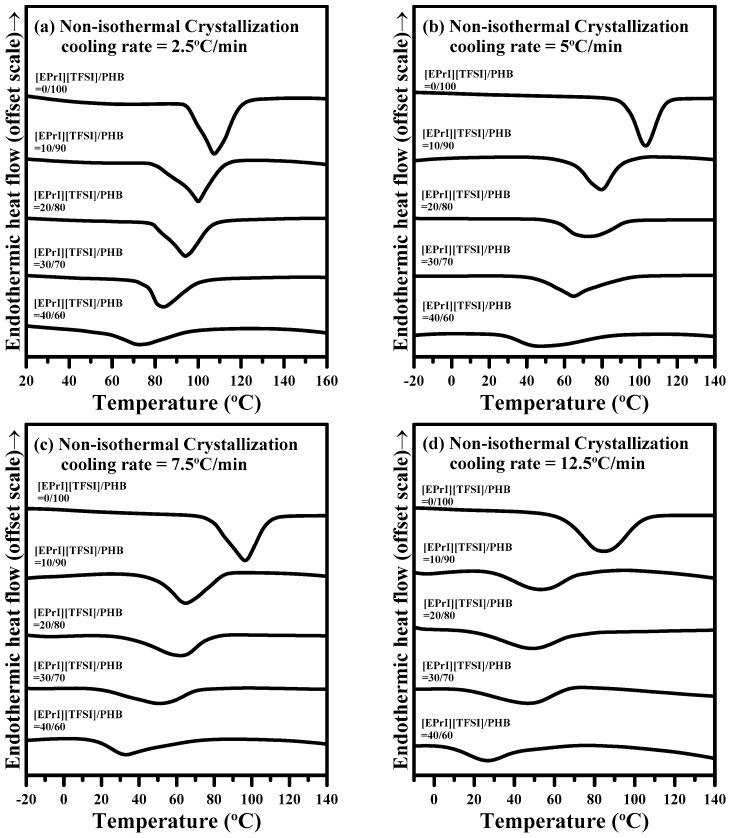

The green blends of an ionic liquid, 1-ethyl-3-propylimidazolium bis(trifluoromethanesulfonyl)imide {[EPrI][TFSI]}, and a biodegradable polymer, poly(3-hydroxybutyrate) (PHB), were investigated in this study. The influence of an ionic liquid on the crystallization behaviors of a biodegradable polymer was explored. In the blends, the presence of [EPrI][TFSI] decreased the and of PHB. Incorporating [EPrI][TFSI] in the blends reduced the degree of crystallinity of PHB, inferring that the [EPrI][TFSI] weakened the crystallization of PHB. It further showed retarded isothermal and non-isothermal crystallization for PHB with the presence of [EPrI][TFSI]. The smaller K and 1/ estimated by the Avrami equation for the blends indicated that [EPrI][TFSI] weakened the isothermal crystallization of PHB with exhibiting the slower crystallization rate. The present study also discussed non-isothermal crystallization of the blends. We found that the Mo model, which is generally used to discuss the non-isothermal crystallization, adequately described the non-isothermal behaviors of the [EPrI][TFSI]/PHB blends. By increasing the [EPrI][TFSI] content, the rate-related parameter () systematically increased, inferring a decreased crystallization rate of PHB with the addition of [EPrI][TFSI] in the blends. The FTIR results suggested an ion⁻dipole interaction between [EPrI][TFSI] and PHB. This proposes the occurrence of possible complexation between [EPrI][TFSI] and PHB.

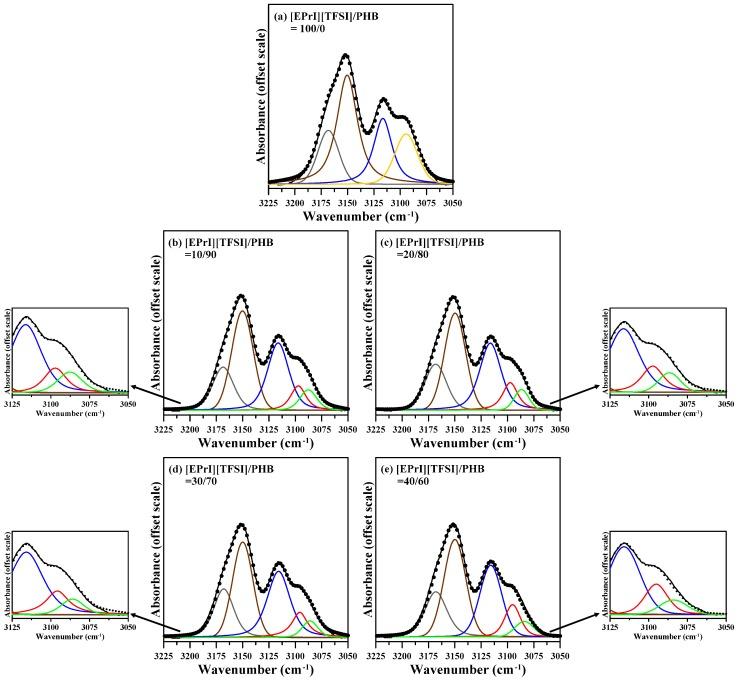

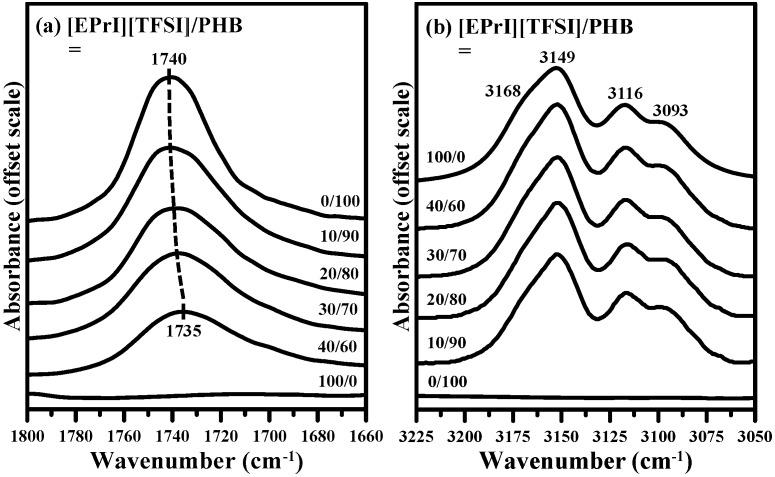

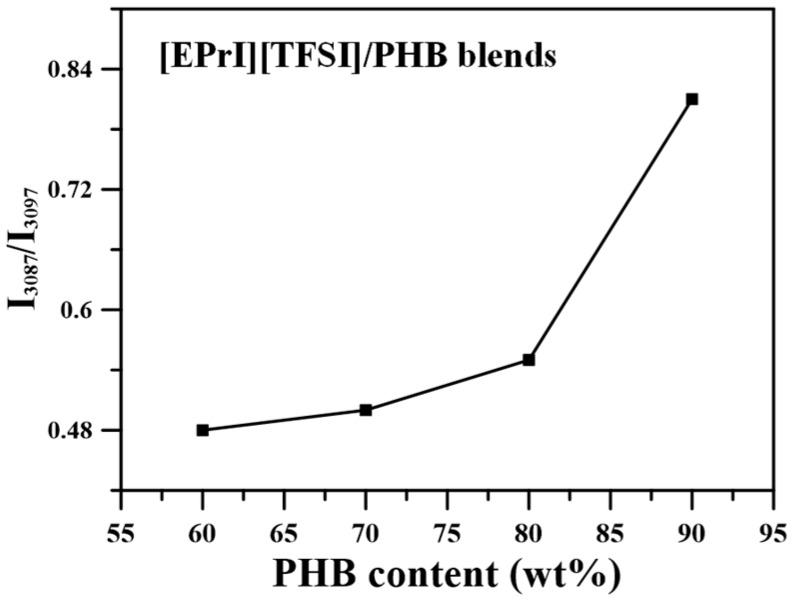

本研究对离子液体1-乙基-3-丙基咪唑双(三氟甲磺酰)亚胺{[EPrI][TFSI]}与可生物降解聚合物聚(3-羟基丁酸酯)(PHB)的绿色共混物进行了研究。探讨了离子液体对可生物降解聚合物结晶行为的影响。在共混物中,[EPrI][TFSI]的存在降低了PHB的[具体参数1]和[具体参数2]。在共混物中加入[EPrI][TFSI]降低了PHB的结晶度,这表明[EPrI][TFSI]削弱了PHB的结晶。进一步研究表明,在[EPrI][TFSI]存在下,PHB的等温结晶和非等温结晶均受到抑制。通过Avrami方程估算的共混物的较小K值和1/[具体参数3]值表明,[EPrI][TFSI]削弱了PHB的等温结晶,表现出较慢的结晶速率。本研究还讨论了共混物的非等温结晶。我们发现,通常用于讨论非等温结晶的Mo模型能够充分描述[EPrI][TFSI]/PHB共混物的非等温行为。随着[EPrI][TFSI]含量的增加,速率相关参数([具体参数4])系统性增加,这表明在共混物中加入[EPrI][TFSI]会降低PHB的结晶速率。傅里叶变换红外光谱(FTIR)结果表明[EPrI][TFSI]与PHB之间存在离子-偶极相互作用。这表明[EPrI][TFSI]与PHB之间可能发生络合作用。
