Yan Yaping, Song Kyeong-Youn, Cho Minwoo, Lee Tae Hoon, Kang Chiwon, Lee Hoo-Jeong
School of Advanced Materials Science and Engineering, Sungkyunkwan University (SKKU), Suwon 16419, Korea.
Department of Physics and Institute of Basic Science, Sungkyunkwan University, 2066, Seobu-ro, Jangan-gu, Suwon 16419, Gyeonggi-do, Korea.
Materials (Basel). 2019 May 13;12(9):1563. doi: 10.3390/ma12091563.

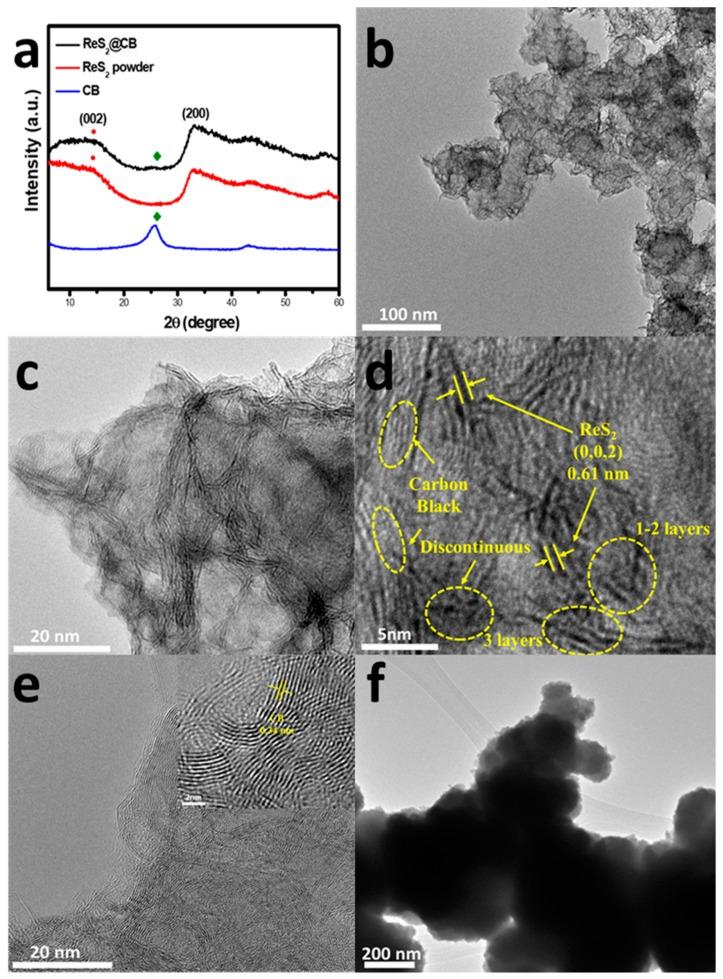

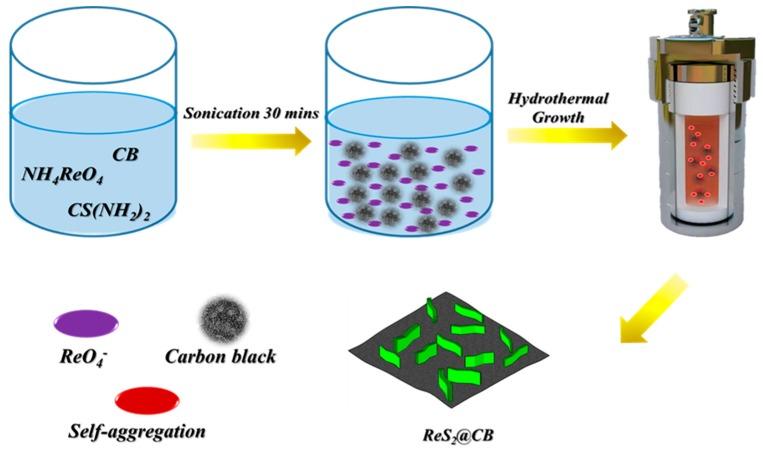

ReS nanosheets are grown on the surface of carbon black (CB) via an efficient hydrothermal method. We confirmed the ultra-thin ReS nanosheets with ≈1-4 layers on the surface of the CB (ReS@CB) by using analytical techniques of field emission scanning electron microscopy (FESEM) and high-resolution transmission electron microscopy (HRTEM). The ReS@CB nanocomposite showed high specific capacities of 760, 667, 600, 525, and 473 mAh/g at the current densities of 0.1 (0.23 C), 0.2 (0.46 C), 0.3 (0.7 C), 0.5 (1.15 C) and 1.0 A/g (2.3 C), respectively, in conjunction with its excellent cycling performance (432 mAh/g at 2.3 C; 91.4% capacity retention) after 100 cycles. Such LIB performance is greatly higher than pure CB and ReS powder samples. These results could be due to the following reasons: (1) the low-cost CB serves as a supporter enabling the formation of ≈1-4 layered nanosheets of ReS, thus avoiding its agglomeration; (2) the CB enhances the electrical conductivity of the ReS@CB nanocomposite; (3) the ultra-thin (1-4 layers) ReS nanosheets with imperfect structure can function as increasing the number of active sites for reaction of Li ions with electrolytes. The outstanding performance and unique structural characteristics of the ReS@CB anodes make them promising candidates for the ever-increasing development of advanced LIBs.
通过一种高效的水热法在炭黑(CB)表面生长二硫化铼(ReS)纳米片。我们使用场发射扫描电子显微镜(FESEM)和高分辨率透射电子显微镜(HRTEM)等分析技术,证实了在CB表面存在约1 - 4层的超薄ReS纳米片(ReS@CB)。ReS@CB纳米复合材料在电流密度分别为0.1(0.23 C)、0.2(0.46 C)、0.3(0.7 C)、0.5(1.15 C)和1.0 A/g(2.3 C)时,展现出760、667、600、525和473 mAh/g的高比容量,并且在100次循环后具有出色的循环性能(在2.3 C时为432 mAh/g;容量保持率为91.4%)。这种锂离子电池(LIB)性能大大高于纯CB和ReS粉末样品。这些结果可能归因于以下原因:(1)低成本的CB作为支撑体,使得能够形成约1 - 4层的ReS纳米片,从而避免其团聚;(2)CB提高了ReS@CB纳米复合材料的电导率;(3)具有不完美结构的超薄(1 - 4层)ReS纳米片可起到增加锂离子与电解质反应活性位点数量的作用。ReS@CB阳极出色的性能和独特的结构特征使其成为先进LIB不断发展的有前途的候选材料。
