Veraa Stefanie, Bergmann Wilhelmina, Wijnberg Inge D, Back Willem, Vernooij Hans, Nielen Mirjam, van den Belt Antoon-Jan M
Division of Diagnostic Imaging, Faculty of Veterinary Medicine, Utrecht University, Utrecht, The Netherlands.
Department of Pathobiology, Faculty of Veterinary Medicine, Utrecht University, Utrecht, The Netherlands.
Vet Radiol Ultrasound. 2019 Nov;60(6):696-706. doi: 10.1111/vru.12794. Epub 2019 Jul 28.

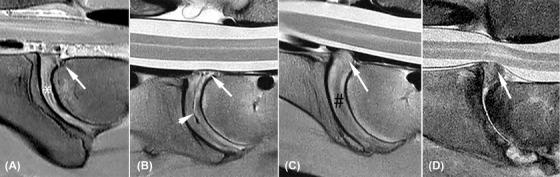

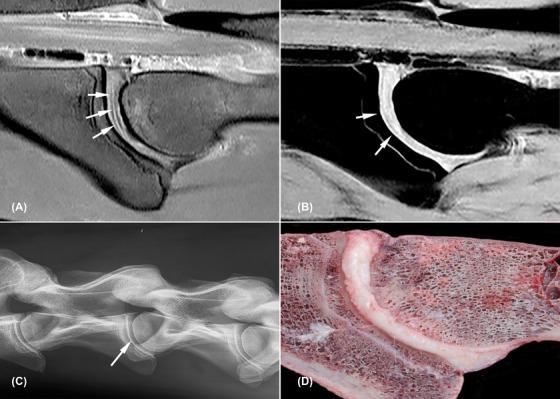

Morphology of the equine cervical intervertebral disc is different from that in humans and small companion animals and published imaging data are scarcely available. The objectives of this exploratory, methods comparison study were (a) to describe MRI features of macroscopically nondegenerated and degenerated intervertebral discs (b) to test associations between spinal location and macroscopic degeneration or MRI-detected annular protrusion and between MRI-detected annular protrusion and macroscopic degeneration, and (c) to define MRI sequences for characterizing equine cervical intervertebral disc degeneration. Ex vivo MRI of intervertebral discs was performed in 11 horses with clinical signs related to the cervical region prior to macroscopic assessment. Mixed-effect logistic regression modeling included spinal location, MRI-detected annular protrusion, and presence of macroscopic degeneration with "horse" as random effect. Odds ratio and 95% confidence interval were determined. Reduced signal intensity in proton density turbo SE represented intervertebral disc degeneration. Signal voids due to presence of gas and/or hemorrhage were seen in gradient echo sequences. Presence of macroscopic intervertebral disc degeneration was significantly associated with spinal location with odds being higher in the caudal (C5 to T1) versus cranial (C2 to C5) part of the cervical vertebral column. Intervertebral discs with MRI-detected annular protrusion grades 2-4 did have higher odds than with grade 1 to have macroscopic degeneration. It was concluded that MRI findings corresponded well with gross macroscopic data. Magnetic resonance imaging of the equine cervical intervertebral disc seems to be a promising technique, but its potential clinical value for live horses needs to be explored further in a larger and more diverse population of horses.
马颈椎椎间盘的形态与人类和小型伴侣动物不同,且几乎没有已发表的影像学数据。这项探索性的方法比较研究的目的是:(a) 描述宏观上未退变和退变的椎间盘的MRI特征;(b) 测试脊柱位置与宏观退变或MRI检测到的椎间盘突出之间以及MRI检测到的椎间盘突出与宏观退变之间的关联;(c) 确定用于表征马颈椎椎间盘退变的MRI序列。在11匹有颈部相关临床症状的马身上,在进行宏观评估之前对椎间盘进行了离体MRI检查。混合效应逻辑回归模型包括脊柱位置、MRI检测到的椎间盘突出以及宏观退变的存在情况,并将“马”作为随机效应。确定了比值比和95%置信区间。质子密度快速自旋回波序列中信号强度降低代表椎间盘退变。梯度回波序列中可见由于气体和/或出血导致的信号缺失。宏观椎间盘退变的存在与脊柱位置显著相关,颈椎尾端(C5至T1)比头端(C2至C5)的几率更高。MRI检测到的椎间盘突出等级为2 - 4级的椎间盘比1级椎间盘出现宏观退变的几率更高。研究得出结论,MRI结果与大体宏观数据吻合良好。马颈椎椎间盘的磁共振成像似乎是一项有前景的技术,但其对活马的潜在临床价值需要在更大且更多样化的马群中进一步探索。
