Zhang Lei, Tang Yao, Tong Limin
State Key Laboratory of Modern Optical Instrumentation, College of Optical Science and Engineering, Zhejiang University, Hangzhou 310027, China.
State Key Laboratory of Modern Optical Instrumentation, College of Optical Science and Engineering, Zhejiang University, Hangzhou 310027, China.
iScience. 2020 Jan 24;23(1):100810. doi: 10.1016/j.isci.2019.100810. Epub 2019 Dec 28.

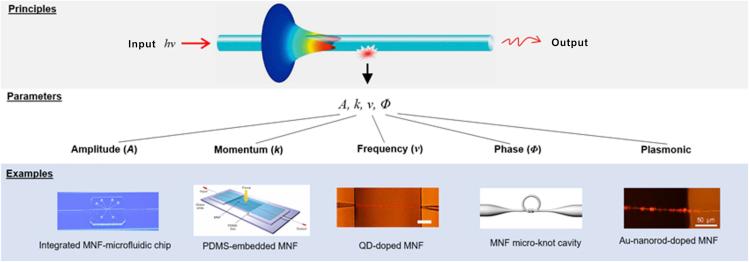

Micro-/nanofibers (MNFs) are optical fibers with diameters close to or below the wavelength of the guided light. These tiny fibers can offer engineerable waveguiding properties including optical confinement, fractional evanescent fields, and surface intensity, which is very attractive to optical sensing on the micro-/nano scale. In this review, we first introduce the basics of MNF optics and MNF optical sensors from physical and chemical to biological applications and review the progress and current status of this field. Then, we review and discuss hybrid MNF structures for advanced optical sensing by merging MNFs with functional structures including chemical indicators, quantum dots, dye molecules, plasmonic nanoparticles, 2-D materials, and optofluidic chips. Thirdly, we introduce the emerging trends in developing MNF-based advanced sensing technology for ultrasensitive, active, and wearable sensors and discuss the future prospects and challenges in this exciting research field. Finally, we end the review with a brief conclusion.
微/纳米纤维(MNFs)是直径接近或低于导波光波长的光纤。这些微小的纤维可以提供可设计的波导特性,包括光学限制、分数倏逝场和表面强度,这对于微/纳米尺度的光学传感非常有吸引力。在这篇综述中,我们首先介绍MNF光学和MNF光学传感器的基础知识,从物理、化学到生物应用,并回顾该领域的进展和现状。然后,我们回顾并讨论通过将MNFs与包括化学指示剂、量子点、染料分子、等离子体纳米颗粒、二维材料和光流控芯片在内的功能结构合并来实现先进光学传感的混合MNF结构。第三,我们介绍了用于超灵敏、有源和可穿戴传感器的基于MNF的先进传感技术的新兴趋势,并讨论了这个令人兴奋的研究领域的未来前景和挑战。最后,我们以简要的结论结束综述。
