Lee Chang-Chun, Chuang Jui-Chang, Shih Ruei-Ci, Wang Chi-Wei
Department of Power Mechanical Engineering, National Tsing Hua University, No. 101, Section 2, Kuang-Fu Road, Hsinchu 30013, Taiwan.
Industrial Technology Research Institute, No. 195, Section 4, Chung Hsing Road, Chutung, Hsinchu 31040, Taiwan.
Micromachines (Basel). 2020 Jan 19;11(1):106. doi: 10.3390/mi11010106.

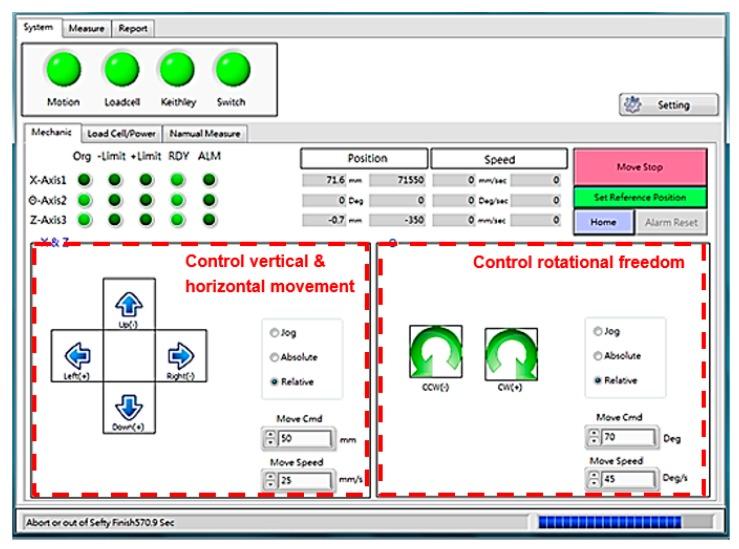

Mainstream next generation electronic devices with miniaturized structures and high levels of performance are needed to meet the characteristic requirements of electronics with flexible and stretchable capabilities. Accordingly, several applied fields of innovative electronic component techniques, such as wearable devices, foldable curtain-like displays, and flexible hybrid electronic (FHE) biosensors, are considered. This study presents a novel inspection system with multifunctions of stressing tensile and bending mechanical loads to acquire the stretchable and rollable characteristics of soft specimens. The performance of the proposed measurement platform using samples of three different geometric types is evaluated in terms of its stretchability. The results show a remarkable enhancement of mechanical reliability when the sine wave geometric structure is used. A symmetrical sine wave-shaped sample is designed to measure performance under cyclic rolling. The proposed measurement platform of flexible electronics meets the testing requirements of mechanical reliability for the development of future flexible electronic components and FHE products.
为满足具有柔性和可拉伸能力的电子产品的特性要求，需要具备小型化结构和高性能的主流下一代电子设备。因此，人们考虑了创新电子元件技术的几个应用领域，如可穿戴设备、可折叠幕帘式显示器和柔性混合电子（FHE）生物传感器。本研究提出了一种新型检测系统，该系统具有施加拉伸和弯曲机械载荷的多功能，以获取软质试样的可拉伸和可卷曲特性。使用三种不同几何类型的样品对所提出的测量平台的性能进行了拉伸性评估。结果表明，当使用正弦波几何结构时，机械可靠性有显著提高。设计了一种对称的正弦波形状的样品来测量循环滚动下的性能。所提出的柔性电子测量平台满足了未来柔性电子元件和FHE产品开发的机械可靠性测试要求。
