BACKGROUND

Home-based resistance training offers an alternative to traditional, hospital-based or rehabilitation center-based resistance training and has attracted much attention recently. However, without the supervision of a therapist or the assistance of an exercise monitoring system, one of the biggest challenges of home-based resistance training is that the therapist may not know if the patient has performed the exercise as prescribed. A lack of objective measurements limits the ability of researchers to evaluate the outcome of exercise interventions and choose suitable training doses.

OBJECTIVE

To create an automated and objective method for segmenting resistance force data into contraction phase-specific segments and calculate the repetition number and time-under-tension (TUT) during elbow flexor resistance training. A pilot study was conducted to evaluate the performance of the segmentation algorithm and to show the capability of the system in monitoring the compliance of patients to a prescribed training program in a practical resistance training setting.

METHODS

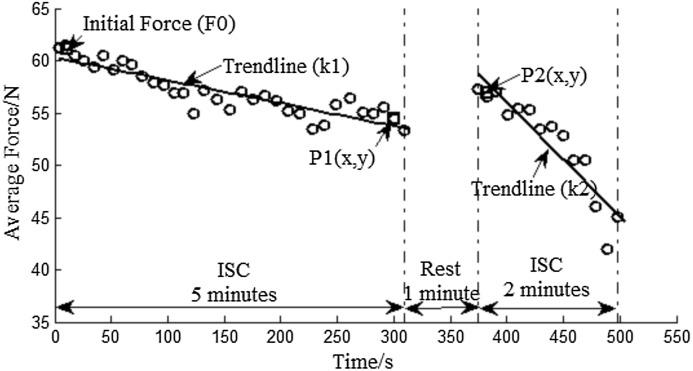

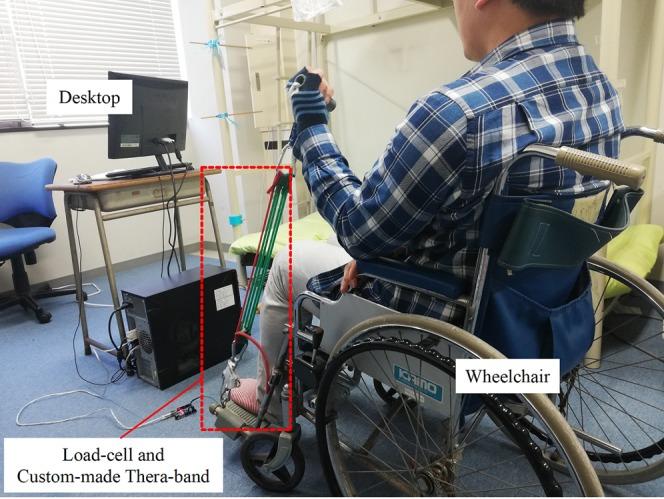

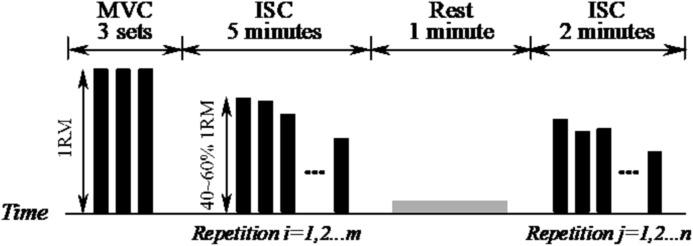

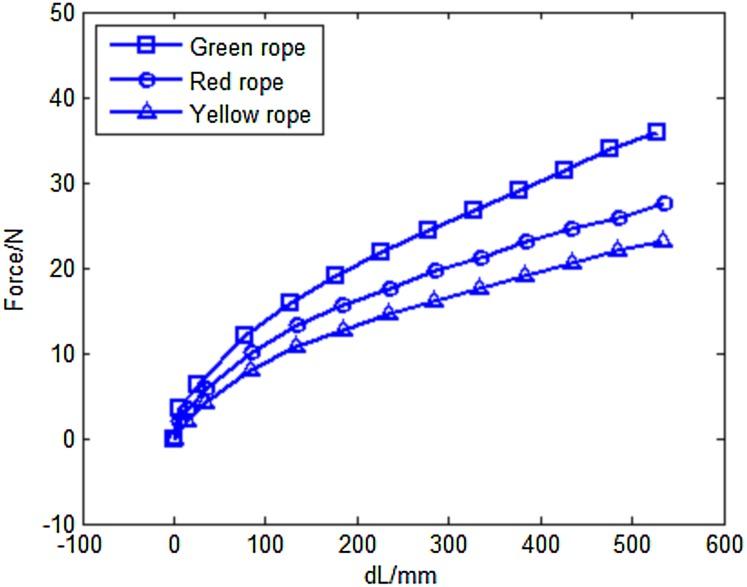

Six subjects (three male and three female) volunteered to participate in a fatigue and recovery experiment (5 min intermittent submaximal contraction (ISC); 1 min rest; 2 min ISC). A custom-made resistance band was used to help subjects perform biceps curl resistance exercises and the resistance was recorded through a load cell. The maximum and minimum values of the force-derivative were obtained as distinguishing features and a segmentation algorithm was proposed to divide the biceps curl cycle into concentric, eccentric and isometric contraction, and rest phases. Two assessors, who were unfamiliar with the study, were recruited to manually pick the visually observed cut-off point between two contraction phases and the TUT was calculated and compared to evaluate performance of the segmentation algorithm.

RESULTS

The segmentation algorithm was programmatically implemented and the repetition number and contraction-phase specific TUT were calculated. During isometric, the average TUT (3.75 ± 0.62 s) was longer than the prescribed 3 s, indicating that most subjects did not perform the exercise as prescribed. There was a good TUT agreement and contraction segment agreement between the proposed algorithm and the assessors.

CONCLUSION

The good agreement in TUT between the proposed algorithm and the assessors indicates that the proposed algorithm can correctly segment the contraction into contraction phase-specific parts, thereby providing clinicians and researchers with an automated and objective method for quantifying home-based elbow flexor resistance training. The instrument is easy to use and cheap, and the segmentation algorithm is programmatically implemented, indicating good application prospect of the method in a practical setting.
