Fabrication of PCL Scaffolds by Supercritical CO Foaming Based on the Combined Effects of Rheological and Crystallization Properties.

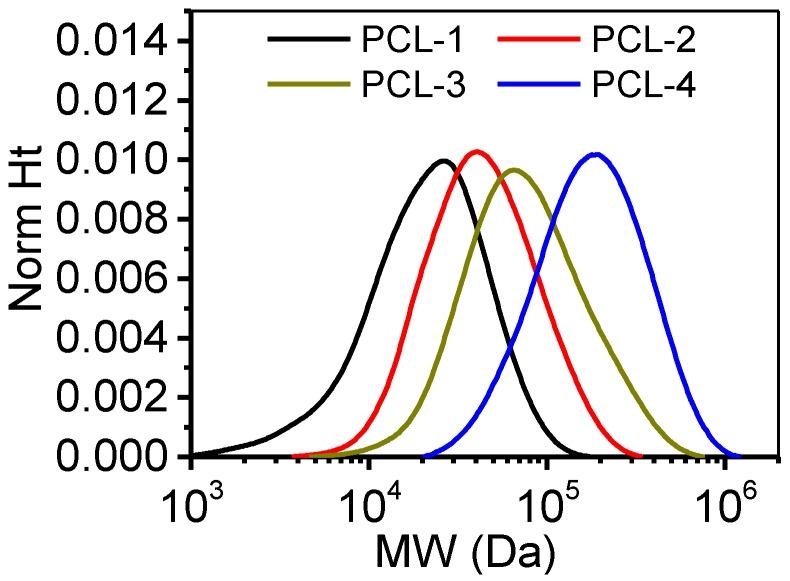

Polycaprolactone (PCL) scaffolds have recently been developed via efficient and green supercritical carbon dioxide (scCO) melt-state foaming. However, previously reported gas-foamed scaffolds sometimes showed insufficient interconnectivity or pore size for tissue engineering. In this study, we have correlated the thermal and rheological properties of PCL scaffolds with their porous morphology by studying four foamed samples with varied molecular weight (MW), and particularly aimed to clarify the required properties for the fabrication of scaffolds with favorable interconnected macropores. DSC and rheological tests indicate that samples show a delayed crystallization and enhanced complex viscosity with the increasing of MW. After foaming, scaffolds (27 kDa in weight-average molecular weight) show a favorable morphology (pore size = 70-180 μm, porosity = 90% and interconnectivity = 96%), where the lowest melt strength favors the generation of interconnected macropore, and the most rapid crystallization provides proper foamability. The scaffolds (27 kDa) also possess the highest Young's modulus. More importantly, owing to the sufficient room and favorable material transportation provided by highly interconnected macropores, cells onto the optimized scaffolds (27 kDa) perform vigorous proliferation and superior adhesion and ingrowth, indicating its potential for regeneration applications. Furthermore, our findings provide new insights into the morphological control of porous scaffolds fabricated by scCO foaming, and are highly relevant to a broader community that is focusing on polymer foaming.
