Nogourani Mehdi Karami, Moradi Maryam, Khajouei Amirreza Sajjadieh, Farghadani Maryam, Eshaghian Atefeh
Departments of Radiology, School of Medicine, Isfahan University of Medical Sciences, Isfahan, Iran.
Departments of Cardiology, School of Medicine, Isfahan University of Medical Sciences, Isfahan, Iran.
J Clin Imaging Sci. 2020 Mar 31;10:12. doi: 10.25259/JCIS_153_2019. eCollection 2020.
In-stent restenosis (ISR) diagnosis is among the most serious complications of patients undergone stent implantation. Although coronary computed tomography angiography (CCTA) has been widely used for ISR assessing, stent narrow lumen and presence of stent's struts artifacts have limited its efficacy. The use of quantitative techniques may provide more valuable findings for ISR diagnosis. The aim of this study is to assess the predictive value of a quantitative technique of ISR estimation based on stent intraluminal enhancement derived from CCTA.
In the current study, 40 patients with the previous history of coronary artery diseases (CADs) and coronary stent placement who reexperienced CAD symptoms and referred for CCTA were assessed in 2017-2018. Stent intraluminal "enhancement value" (EV) was measured using calcium score and post-contrast images of CCTA. The cutoff point was determined using conventional invasive coronary angiography as the gold standard.

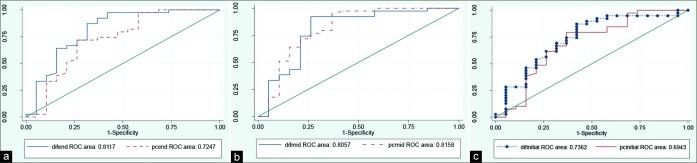

Total numbers of 58 stents were evaluated, in which stent intraluminal enhancement was assessed in initial, middle, and end sites of stent, achieved cutoff points for more than 50% of ISR were 204, 168, and 204 Hounsfield units, respectively. These cutoff points had diagnostic value of 77.5% for initial part, 86% for midpart, and 81% for end part, respectively.
The use of quantitative method of stent intraluminal EV for ISR estimation has better diagnostic value in comparison to qualitative techniques that can help better clinical decision making. Moreover, measurements of this method are somewhat easier and also secondary artifacts of stent struts and calcified plaques would be eliminated.
支架内再狭窄(ISR)诊断是接受支架植入患者最严重的并发症之一。尽管冠状动脉计算机断层扫描血管造影(CCTA)已广泛用于ISR评估,但支架狭窄管腔和支架支柱伪影的存在限制了其有效性。定量技术的应用可能为ISR诊断提供更有价值的结果。本研究的目的是评估基于CCTA得出的支架腔内强化的ISR定量评估技术的预测价值。
在本研究中,对2017 - 2018年40例有冠状动脉疾病(CAD)病史且接受过冠状动脉支架置入术、再次出现CAD症状并接受CCTA检查的患者进行了评估。使用CCTA的钙化积分和造影后图像测量支架腔内“强化值”(EV)。以传统有创冠状动脉造影作为金标准确定截断点。
共评估了58个支架,在支架的起始、中间和末端部位评估支架腔内强化,超过50%的ISR的截断点分别为204、168和204亨氏单位。这些截断点对起始部位的诊断价值为77.5%,对中间部位为86%,对末端部位为81%。
与定性技术相比,使用支架腔内EV定量方法评估ISR具有更好的诊断价值,有助于更好地进行临床决策。此外,该方法的测量 somewhat easier,并且支架支柱和钙化斑块的二次伪影将被消除。 (注:原文中“somewhat easier”翻译可能不太准确,可根据实际情况调整为更合适表述,这里先保留原文翻译形式)
