Chen Xing, Partheniadis Ioannis, Nikolakakis Ioannis, Al-Obaidi Hisham
The School of Pharmacy, University of Reading, Reading RG6 6AD, UK.
Department of Pharmaceutical Technology, School of Pharmacy, Faculty of Health Sciences, Aristotle University of Thessaloniki, 54124 Thessaloniki, Greece.
Polymers (Basel). 2020 Apr 7;12(4):854. doi: 10.3390/polym12040854.

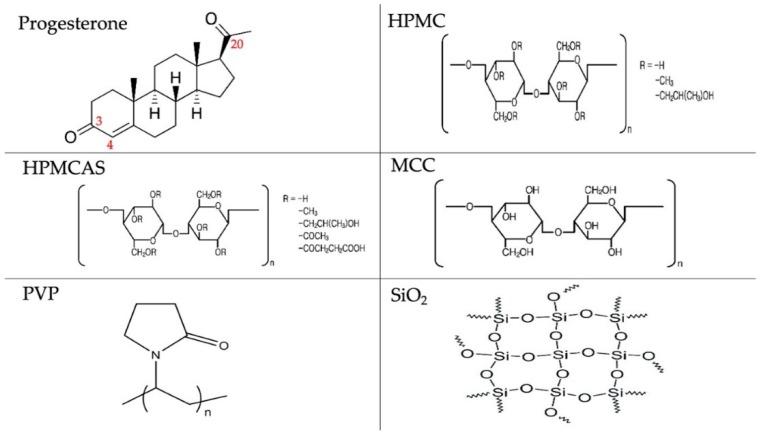

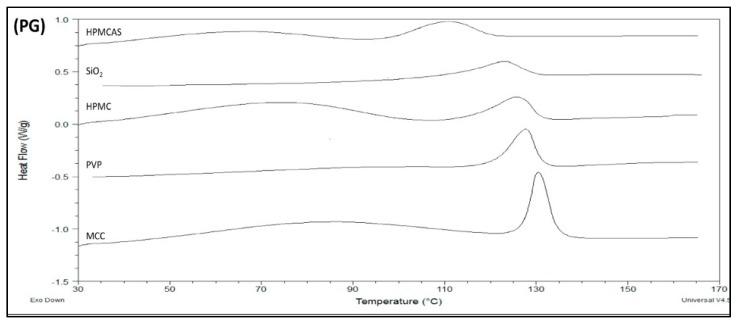

The aim of this contribution was to evaluate the impact of processing methods and polymeric carriers on the physicochemical properties of solid dispersions of the poorly soluble drug progesterone (PG). Five polymers: hydroxypropyl methylcellulose (HPMC), hydroxypropyl methylcellulose acetate succinate (HPMCAS), microcrystalline cellulose (MCC), polyvinylpyrrolidone (PVP) and silica (SiO), and two processing methods: solvent evaporation (SE) and mechano-chemical activation by co-milling (BM) were applied. H-bonding was demonstrated by FTIR spectra as clear shifting of drug peaks at 1707 cm (C20 carbonyl) and 1668 cm (C3 carbonyl). Additionally, spectroscopic and thermal analysis revealed the presence of unstable PG II polymorphic form and a second heating DSC cycle, the presence of another polymorph possibly assigned to form III, but their influence on drug solubility was not apparent. Except for PG-MCC, solid dispersions improved drug solubility compared to physical mixtures. For SE dispersions, an inverse relationship was found between drug water solubility and drug-polymer Hansen solubility parameter difference (Δδt), whereas for BM dispersions, the solubility was influenced by both the intermolecular interactions and the polymer T. Solubility improvement with SE was demonstrated for all except PG-MCC dispersions, whereas improvement with BM was demonstrated by the PG-HPMC, PG-PVP and PG-HPMCAS dispersions, the last showing impressive increase from 34.21 to 82.13 μg/mL. The extensive H-bonding between PG and HPMCAS was proved by FTIR analysis of the dispersion in the liquid state. In conclusion, although SE improved drug solubility, BM gave more than twice greater improvement. This indicates that directly operating intermolecular forces are more efficient than the solvent mediated.
本研究的目的是评估加工方法和聚合物载体对难溶性药物黄体酮(PG)固体分散体物理化学性质的影响。应用了五种聚合物:羟丙基甲基纤维素(HPMC)、羟丙基甲基纤维素醋酸琥珀酸酯(HPMCAS)、微晶纤维素(MCC)、聚乙烯吡咯烷酮(PVP)和二氧化硅(SiO),以及两种加工方法:溶剂蒸发法(SE)和共研磨机械化学活化法(BM)。傅里叶变换红外光谱(FTIR)显示,药物在1707 cm(C20羰基)和1668 cm(C3羰基)处的峰明显位移,证明了氢键的存在。此外,光谱和热分析揭示了不稳定的PG II多晶型形式的存在以及第二次加热差示扫描量热法(DSC)循环,可能存在另一种归属于III型的多晶型,但它们对药物溶解度的影响并不明显。除PG-MCC外,与物理混合物相比,固体分散体提高了药物溶解度。对于SE分散体,发现药物水溶性与药物-聚合物汉森溶解度参数差(Δδt)之间呈反比关系,而对于BM分散体,溶解度受分子间相互作用和聚合物玻璃化转变温度(T)的影响。除PG-MCC分散体外,所有SE分散体均表现出溶解度提高,而PG-HPMC、PG-PVP和PG-HPMCAS分散体则证明了BM法可提高溶解度,最后一种分散体的溶解度从34.21 μg/mL显著增加至82.13 μg/mL。通过对液态分散体的FTIR分析,证明了PG与HPMCAS之间存在广泛的氢键。总之,虽然SE提高了药物溶解度,但BM的改善效果是SE的两倍多。这表明直接作用于分子间力比溶剂介导更有效。
