Karamanova Boryana, Stoyanova Antonia, Shipochka Maria, Veleva Svetlana, Stoyanova Radostina
Institute of Electrochemistry and Energy Systems, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria.
Institute of General and Inorganic Chemistry, Bulgarian Academy of Sciences, 1113 Sofia, Bulgaria.
Materials (Basel). 2020 Jun 30;13(13):2941. doi: 10.3390/ma13132941.

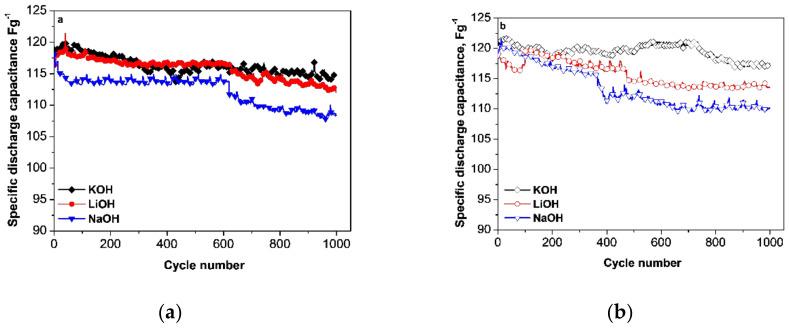

The present work explores in detail the effect of alkaline-basic electrolytes on the capacitance performance of biomass-derived carbonaceous materials used as electrodes in symmetric supercapacitors. The proof-of-concept is demonstrated by two commercial carbon products (YP-50F and YP-80F, Kuraray Europe GmbH, Vantaa, Finland), obtained from coconuts. The capacitance performance of YP-50F and YP-80F was evaluated in three types of basic electrolytes: 6 M LiOH, 6 M NaOH and 6 M KOH. It was found that the capacitance performance of YP-50F improved in the following order: NaOH < LiOH < KOH; Meanwhile, for YP-80F, the order changes to LiOH < NaOH < KOH. After 1000 cycles, the cycling stability of both YP-50F and YP-80F increased in the order NaOH < LiOH < KOH. This order of performance improvement is determined by both the electrolyte conductivity and the interaction between the functional groups of carbonaceous materials and alkaline electrolytes. The reactivity of the functional groups was assessed by postmortem SEM/EDS and X-ray photoelectron spectroscopy (XPS) analyses of the electrodes after prolonged cycling.
本工作详细探讨了碱性电解质对用作对称超级电容器电极的生物质衍生碳质材料电容性能的影响。通过两种从椰子中获得的商用碳产品(YP - 50F和YP - 80F,可乐丽欧洲有限公司,芬兰万塔)证明了这一概念验证。在三种碱性电解质中评估了YP - 50F和YP - 80F的电容性能:6 M LiOH、6 M NaOH和6 M KOH。发现YP - 50F的电容性能按以下顺序提高:NaOH < LiOH < KOH;同时,对于YP - 80F,顺序变为LiOH < NaOH < KOH。经过1000次循环后,YP - 50F和YP - 80F的循环稳定性均按NaOH < LiOH < KOH的顺序增加。这种性能改善的顺序由电解质电导率以及碳质材料官能团与碱性电解质之间的相互作用决定。通过对长时间循环后的电极进行死后扫描电子显微镜/能谱分析(SEM/EDS)和X射线光电子能谱(XPS)分析来评估官能团的反应性。
