Monitoring Viscosity and Total Solids Content of Milk Protein Concentrate Using an Inline Acoustic Flowmeter at Laboratory Scale.

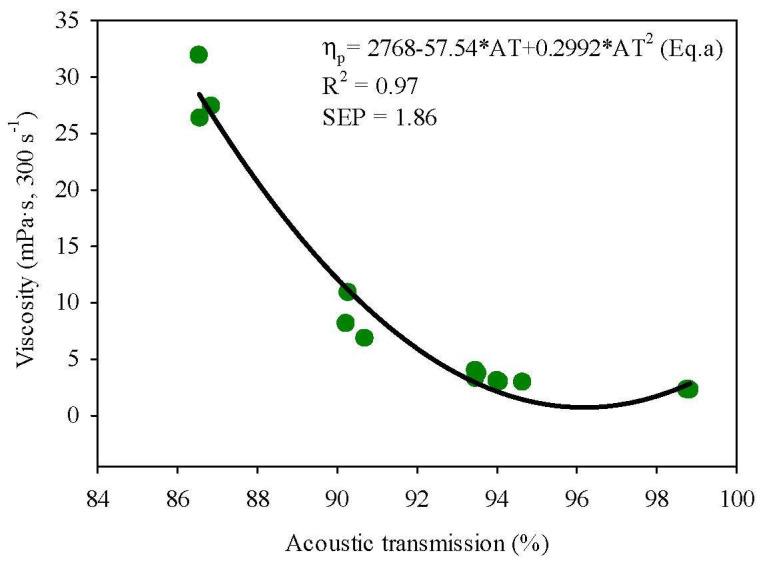

Control of milk concentrate viscosity and total solids (TS) content prior to spray drying can improve dairy ingredient manufacture. However, the availability of hygienic and appropriately pressure rated process viscometers for inline monitoring of viscosity is limited. An acoustic flowmeter (FLOWave) is an inline process analytical technology (PAT) tool that measures changes in acoustic signals in response to changes in liquid properties (i.e., acoustic transmission (AT), acoustic impedance (AI), temperature and volume flowrate). In this study, an acoustic flowmeter is evaluated as an inline PAT tool for monitoring viscosity of milk protein concentrate (MPC85), protein and TS content of (MPC85), and standardised MPC (sMPC). Laboratory scale experiments were carried out at 45 °C for five different concentrations (4-21%) of MPC85 and sMPC. Results showed that AT decreased with an increase in MPC85 viscosity (e.g., AT was 98.79 ± 0.04% and 86.65 ± 0.17% for 4% and 21% TS content, respectively). Non-linear regression was carried out to develop a relationship between AT and offline viscosity (R (coefficient of determination) value = 0.97 and standard error of prediction = 1.86 mPa·s). AI was observed to increase at higher protein and TS content which was dependent on protein to total solid ratio (P_TSR). Multiple linear regression was carried out to develop the relationship between AI, protein content, TS content and P_TSR. Results demonstrated that AI could be used to monitor the protein and TS content of milk protein concentrate (R > 0.96). Overall this study demonstrated the potential of an inline acoustic flowmeter for monitoring process viscosity, protein and TS during dairy concentrate processing.
