Research Assistant Center, Show Chwan Memorial Hospital, Changhua 500, Taiwan.
Department of Biology, National Changhua University of Education, Changhua 500, Taiwan.
Molecules. 2020 Dec 4;25(23):5732. doi: 10.3390/molecules25235732.

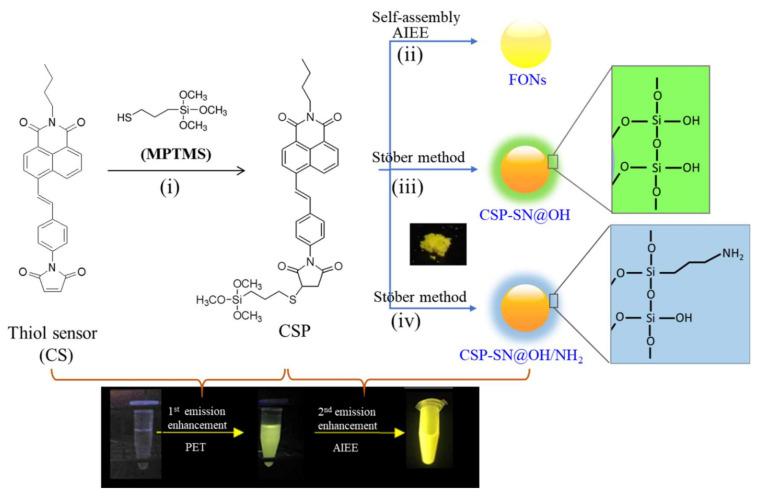

The major challenge in the fabrication of fluorescent silica nanoparticles (FSNs) based on dye-doped silica nanoparticles (DDSNs) is aggregation-caused fluorescence quenching. Here, we constructed an FSN based on a double emission enhancement (DEE) platform. A thio-reactive fluorescence turn-on molecule, -butyl-4-(4-maleimidostyryl)-1,8-naphthalimide (CS), was bound to a silane coupling agent, (3-mercaptopropyl)-trimethoxysilane (MPTMS), and the product -butyl-4-(3-(trimethoxysilyl-propylthio)styryl)-1,8-naphthalimide (CSP) was further used to fabricate a core-shell nanoparticle through the Stöber method. We concluded that the turn-on emission by CSP originated from the photoinduced electron transfer (PET) between the maleimide moiety and the CSP core scaffold, and the second emission enhancement was attributed to the aggregation-induced emission enhancement (AIEE) in CSP when encapsulated inside a core-shell nanoparticle. Thus, FSNs could be obtained through DEE based on a combination of PET and AIEE effects. Systematic investigations verified that the resulting FSNs showed the traditional solvent-independent and photostable optical properties. The results implied that the novel FSNs are suitable as biomarkers in living cells and function as fluorescent visualizing agents for intracellular imaging and drug carriers.
基于染料掺杂二氧化硅纳米粒子(DDSN)的荧光二氧化硅纳米粒子(FSN)的制备主要面临的挑战是聚集引起的荧光猝灭。在这里,我们构建了基于双发射增强(DEE)平台的 FSN。一种硫反应性荧光开启分子,-丁基-4-(4-马来酰亚胺基-苯乙烯基)-1,8-萘二甲酰亚胺(CS),与硅烷偶联剂(3-巯丙基)-三甲氧基硅烷(MPTMS)结合,产物-丁基-4-(3-(三甲氧基硅基丙基硫基)苯乙烯基)-1,8-萘二甲酰亚胺(CSP)进一步通过 Stöber 法制备核壳纳米粒子。我们得出结论,CSP 的开启发射源于马来酰亚胺部分和 CSP 核支架之间的光诱导电子转移(PET),第二个发射增强归因于 CSP 在核壳纳米粒子内部封装时的聚集诱导发射增强(AIEE)。因此,通过 PET 和 AIEE 效应的组合,可以获得基于 DEE 的 FSN。系统的研究验证了所得的 FSN 表现出传统的溶剂独立性和光稳定性光学性质。结果表明,新型 FSN 适合作为活细胞中的生物标志物,并作为细胞内成像和药物载体的荧光可视化剂。
