Nasser Sarah B, Doeblin Patrick, Doltra Adelina, Schnackenburg Bernhard, Wassilew Katharina, Berger Alexander, Gebker Rolf, Bigvava Tamuna, Hennig Felix, Pieske Burkert, Kelle Sebastian
Department of Cardiology, Dar Al Fouad Hospital, Cairo, Egypt.
Department of Internal Medicine/Cardiology, Deutsches Herzzentrum Berlin, Berlin, Germany.
Front Cardiovasc Med. 2020 Nov 19;7:602137. doi: 10.3389/fcvm.2020.602137. eCollection 2020.

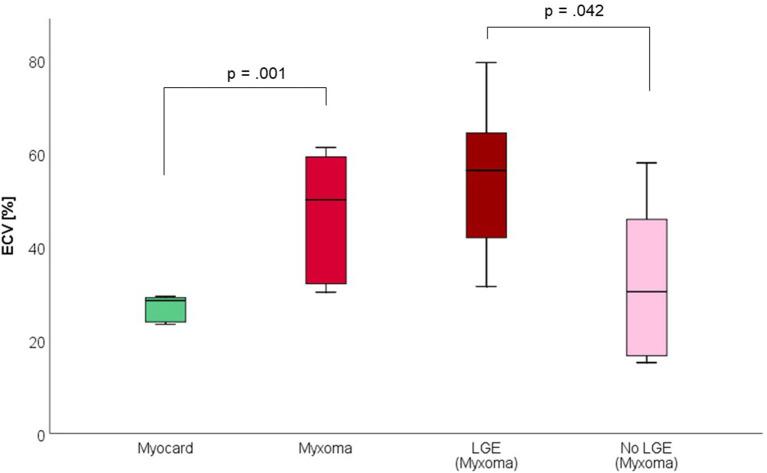

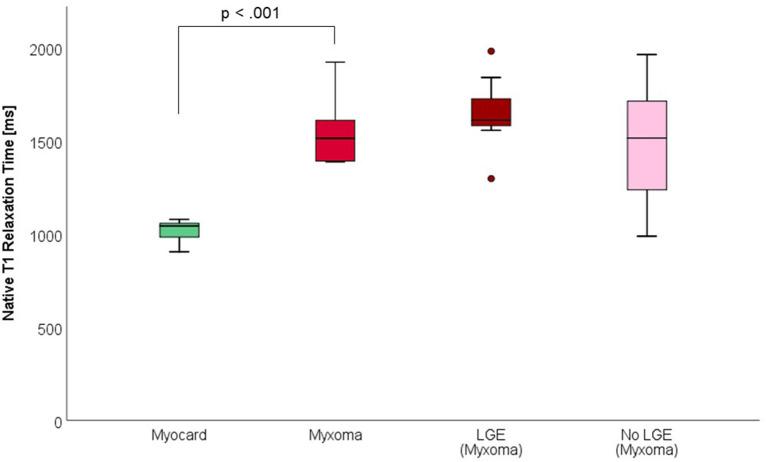

While cardiac tumors are rare, their identification and differentiation has wide clinical implications. Recent cardiac magnetic resonance (CMR) parametric mapping techniques allow for quantitative tissue characterization. Our aim was to examine the range of values encountered in cardiac myxomas in correlation to histological measurements. Nine patients with histologically proven cardiac myxomas were included. CMR (1.5 Tesla, Philips) including parametric mapping was performed in all patients pre-operatively. All data are reported as mean ± standard deviation. Compared to myocardium, cardiac myxomas demonstrated higher native T1 relaxation times (1,554 ± 192 ms vs. 1,017 ± 58 ms, < 0.001), ECV (46.9 ± 13.0% vs. 27.1 ± 2.6%, = 0.001), and T2 relaxation times (209 ± 120 ms vs. 52 ± 3 ms, = 0.008). Areas with LGE showed higher ECV than areas without (54.3 ± 17.8% vs. 32.7 ± 18.6%, = 0.042), with differences in native T1 relaxation times (1,644 ± 217 ms vs. 1,482 ± 351 ms, = 0.291) and T2 relaxation times (356 ± 236 ms vs. 129 ± 68 ms, = 0.155) not reaching statistical significance. Parametric CMR showed elevated native T1 and T2 relaxation times and ECV values in cardiac myxomas compared to normal myocardium, reflecting an increased interstitial space and fluid content. This might help in the differentiation of cardiac myxomas from other tumor entities.
虽然心脏肿瘤很少见,但其识别和鉴别具有广泛的临床意义。最近的心脏磁共振(CMR)参数成像技术可实现组织定量特征分析。我们的目的是研究心脏黏液瘤中所遇到的值的范围,并与组织学测量结果进行相关性分析。纳入了9例经组织学证实的心脏黏液瘤患者。所有患者术前均接受了CMR(1.5特斯拉,飞利浦)检查,包括参数成像。所有数据均以平均值±标准差报告。与心肌相比,心脏黏液瘤的固有T1弛豫时间更长(1554±192毫秒对1017±58毫秒,<0.001),细胞外容积(ECV)更高(46.9±13.0%对27.1±2.6%,=0.001),T2弛豫时间更长(209±120毫秒对52±3毫秒,=0.008)。存在延迟强化(LGE)的区域比无LGE的区域ECV更高(54.3±17.8%对32.7±18.6%,=0.042),固有T1弛豫时间(1644±217毫秒对1482±351毫秒,=0.291)和T2弛豫时间(356±236毫秒对129±68毫秒,=0.155)的差异未达到统计学意义。参数化CMR显示,与正常心肌相比,心脏黏液瘤的固有T1和T2弛豫时间以及ECV值升高,反映了间质空间和液体含量增加。这可能有助于将心脏黏液瘤与其他肿瘤实体区分开来。
