Departamento de Patologia, Faculdade de Medicina da Universidade de São Paulo, Av. Dr. Arnaldo, 455, sala 1155, Sao Paulo, SP, 01246-903, Brazil.
Serviço de Verificação de Óbitos da Capital, Universidade de São Paulo, Sao Paulo, Brazil.
Intensive Care Med. 2021 Feb;47(2):199-207. doi: 10.1007/s00134-020-06328-4. Epub 2021 Jan 3.
This study was designed to evaluate the usefulness of lung ultrasound (LUS) imaging to characterize the progression and severity of lung damage in cases of COVID-19.

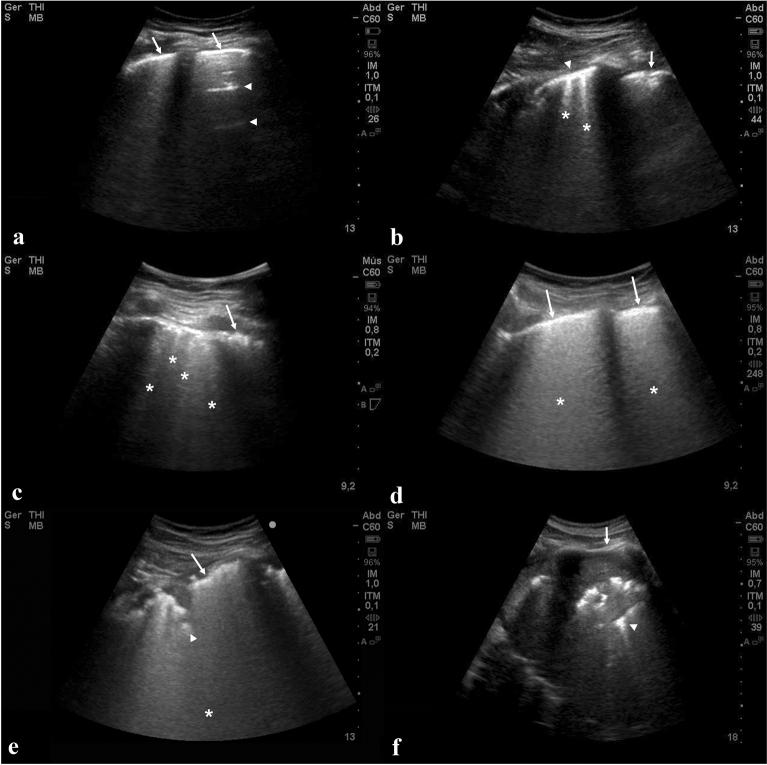

We employed a set of combined ultrasound parameters and histopathological images obtained simultaneously in 28 patients (15 women, 0.6-83 years) with fatal COVID-19 submitted to minimally invasive autopsies, with different times of disease evolution from initial symptoms to death (3-37 days, median 18 days). For each patient, we analysed eight post-mortem LUS parameters and the proportion of three histological patterns (normal lung, exudative diffuse alveolar damage [DAD] and fibroproliferative DAD) in eight different lung regions. The relationship between histopathological and post-mortem ultrasonographic findings was assessed using various statistical approaches.
Statistically significant positive correlations were observed between fibroproliferative DAD and peripheral consolidation (coefficient 0.43, p = 0.02) and pulmonary consolidation (coefficient 0.51, p = 0.005). A model combining age, time of evolution, sex and ultrasound score predicted reasonably well (r = 0.66) the proportion of pulmonary parenchyma with fibroproliferative DAD.
The present study adds information to previous studies related to the use of LUS as a tool to assess the severity of acute pulmonary damage. We provide a histological background that supports the concept that LUS can be used to characterize the progression and severity of lung damage in severe COVID-19.
本研究旨在评估肺部超声(LUS)成像在 COVID-19 病例中对肺损伤进展和严重程度的特征化的有用性。
我们采用了一组联合超声参数和同时获得的 28 例致命 COVID-19 患者的组织病理学图像(15 名女性,0.6-83 岁),这些患者接受了微创尸检,疾病从初始症状到死亡的时间不同(3-37 天,中位数 18 天)。对于每个患者,我们分析了 8 个死后 LUS 参数以及 8 个不同肺区中三种组织学模式(正常肺、渗出性弥漫性肺泡损伤 [DAD] 和纤维增生性 DAD)的比例。使用各种统计方法评估组织病理学和死后超声检查结果之间的关系。
观察到纤维增生性 DAD 与外周实变(系数 0.43,p=0.02)和肺实变(系数 0.51,p=0.005)之间存在显著正相关。结合年龄、演变时间、性别和超声评分的模型可以很好地预测(r=0.66)肺实质中纤维增生性 DAD 的比例。
本研究增加了之前关于使用 LUS 作为评估急性肺损伤严重程度的工具的研究的信息。我们提供了一个组织学背景,支持了 LUS 可用于特征化严重 COVID-19 中肺损伤进展和严重程度的概念。
