Franceschi Mattia, Pezzato Luca, Settimi Alessio Giorgio, Gennari Claudio, Pigato Mirko, Polyakova Marina, Konstantinov Dmitry, Brunelli Katya, Dabalà Manuele
Department of Industrial Engineering, University of Padua, Via Marzolo 9, 35131 Padova, Italy.
Department of Mechanical Engineering and Metallurgical Technologies, Nosov Magnitogorsk State Technical University, pr. Lenina, 38, 455000 Magnitogorsk, Russia.
Materials (Basel). 2021 Jan 8;14(2):288. doi: 10.3390/ma14020288.

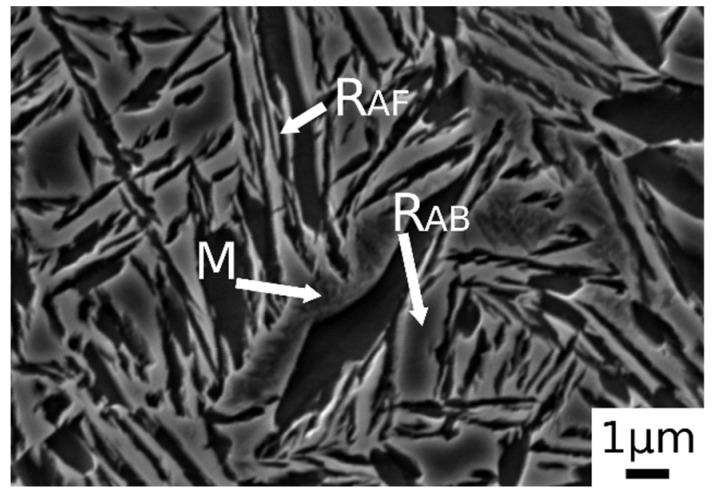

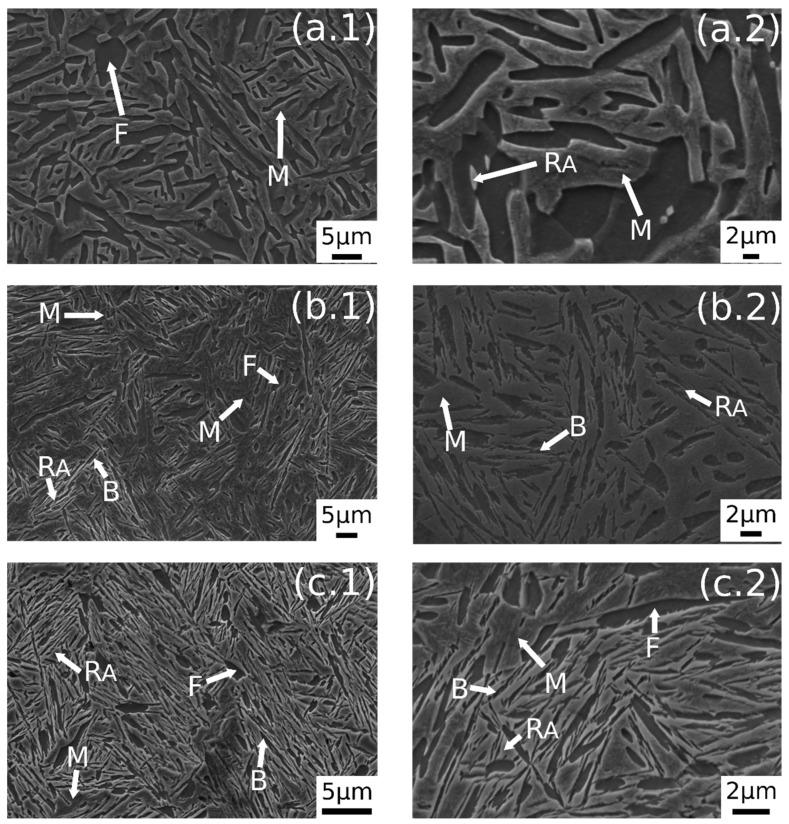

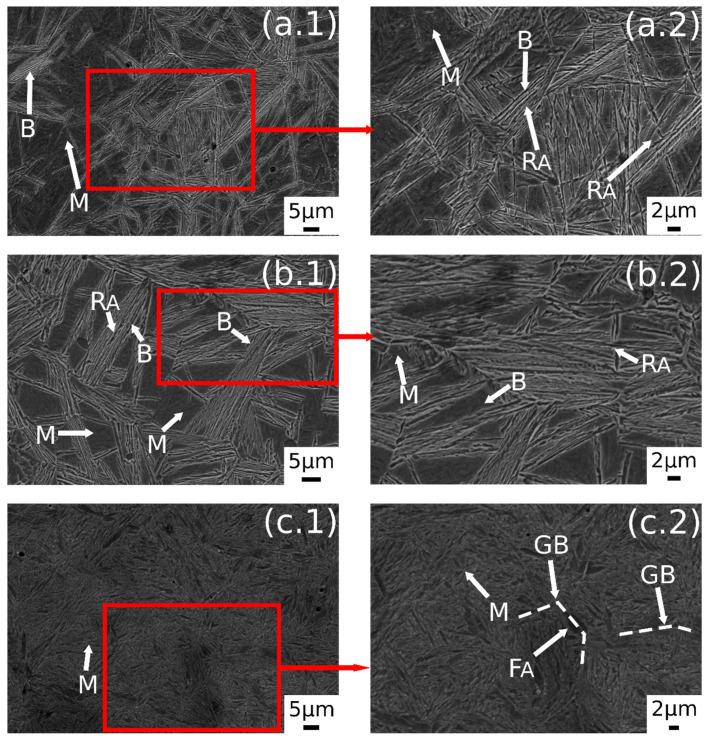

A novel high silicon austempered (AHS) steel has been studied in this work. The effect of different austenitizing temperatures, in full austenitic and biphasic regime, on the final microstructure was investigated. Specimens were austenitized at 780 °C, 830 °C, 850 °C and 900 °C for 30 min and held isothermally at 350 °C for 30 min. A second heat treatment route was performed which consisted of austenitizing at 900 °C for 30 min and austempering at 300 °C, 350 °C and 400 °C for 30 min. Scanning electron microscopy (SEM) and X-ray diffraction (XRD) have been used to evaluate the microstructural evolution. These techniques revealed that the microstructures were composed of carbide-free bainite, ferrite, martensite and retained austenite (RA) in different volume fractions (Vγ). An aqueous borate buffer solution with 0.3 M HBO and 0.075 M NaBO∂10HO (pH = 8.4) was used for corrosion tests in order to evaluate the influence of the different volume fractions of retained austenite on the corrosion properties of the specimens. The results showed that when increasing the austenitization temperatures, the volume fractions of retained austenite reached a maximum value at 850 °C, and decrease at higher temperatures. The corrosion properties were investigated after 30 min and 24 h immersion by means of potentiodynamic polarization (after 30 min) and electrochemical impedance spectroscopy (after both 30 min and 24 h) tests. The corrosion resistance of the samples increased with increases in the volume fraction of retained austenite due to lower amounts of residual stresses.
在本研究中对一种新型高硅奥氏体等温淬火(AHS)钢进行了研究。研究了在完全奥氏体区和双相区不同奥氏体化温度对最终微观组织的影响。将试样在780℃、830℃、850℃和900℃下奥氏体化30分钟,然后在350℃下等温保持30分钟。进行了第二种热处理工艺,即先在900℃下奥氏体化30分钟,然后分别在300℃、350℃和400℃下等温淬火30分钟。利用扫描电子显微镜(SEM)和X射线衍射(XRD)来评估微观组织的演变。这些技术表明,微观组织由不同体积分数(Vγ)的无碳化物贝氏体、铁素体、马氏体和残余奥氏体(RA)组成。为了评估不同体积分数的残余奥氏体对试样耐腐蚀性能的影响,采用含有0.3M HBO和0.075M NaBO₃·10H₂O(pH = 8.4)的硼酸盐缓冲水溶液进行腐蚀试验。结果表明,随着奥氏体化温度的升高,残余奥氏体的体积分数在850℃时达到最大值,在更高温度下降低。通过动电位极化测试(30分钟后)和电化学阻抗谱测试(3小时和24小时后)研究了浸泡30分钟和24小时后的耐腐蚀性能。由于残余应力较低,试样的耐腐蚀性能随着残余奥氏体体积分数的增加而提高。
