Self-Assembly of Discrete Porphyrin/Calix[4]tube Complexes Promoted by Potassium Ion Encapsulation.

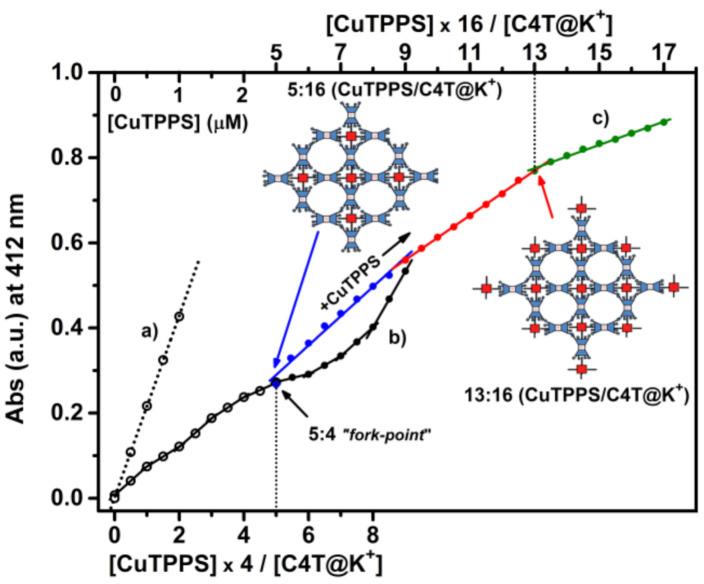

The pivotal role played by potassium ions in the noncovalent synthesis of discrete porphyrin-calixarene nanostructures has been examined. The conformation adopted by the two cavities of octa-cationic calix[4]tube was found to prevent the formation of complexes with well-defined stoichiometry between this novel water-soluble calixarene and the tetra-anionic phenylsulfonate porphyrin . Conversely, preorganization of into a -symmetrical scaffold, triggered by potassium ion encapsulation (@K), allowed us to carry out an efficient hierarchical self-assembly process leading to 2D and 3D nanostructures. The stepwise formation of discrete @K noncovalent assemblies, containing up to 33 molecular elements, was conveniently monitored by UV/vis spectroscopy by following the absorbance of the porphyrin Soret band.
