Sorbonne Université, CNRS, Institut des NanoSciences de Paris, Paris, France.
ONERA - The French Aerospace Lab, Palaiseau, France.
Nat Commun. 2021 Mar 19;12(1):1794. doi: 10.1038/s41467-021-21959-x.

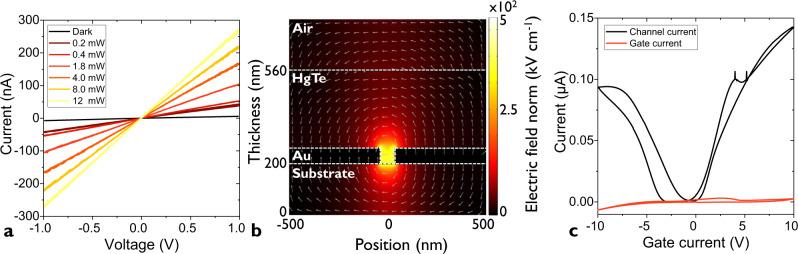

Narrow band gap nanocrystals offer an interesting platform for alternative design of low-cost infrared sensors. It has been demonstrated that transport in HgTe nanocrystal arrays occurs between strongly-coupled islands of nanocrystals in which charges are partly delocalized. This, combined with the scaling of the noise with the active volume of the film, make case for device size reduction. Here, with two steps of optical lithography we design a nanotrench which effective channel length corresponds to 5-10 nanocrystals, matching the carrier diffusion length. We demonstrate responsivity as high as 1 kA W, which is 10 times higher than for conventional µm-scale channel length. In this work the associated specific detectivity exceeds 10 Jones for 2.5 µm peak detection under 1 V at 200 K and 1 kHz, while the time response is as short as 20 µs, making this performance the highest reported for HgTe NC-based extended short-wave infrared detection.
窄带隙纳米晶体为低成本红外传感器的替代设计提供了一个有趣的平台。已经证明,HgTe 纳米晶体阵列中的输运发生在强烈耦合的纳米晶体岛之间,其中电荷部分离域。这一点,再加上噪声随薄膜有源体积的比例变化,使得器件尺寸可以缩小。在这里,我们通过两步光学光刻设计了一个纳米沟槽,其有效沟道长度相当于 5-10 个纳米晶体,与载流子扩散长度相匹配。我们证明了高达 1 kA/W 的响应度,比传统的 µm 级沟道长度高 10 倍。在这项工作中,在 200 K 和 1 kHz 下,在 1 V 时,对于 2.5 µm 的峰值检测,相关的特定探测率超过 10 琼斯,而响应时间短至 20 µs,这使得这种性能成为基于 HgTe NC 的扩展短波红外探测的最高报告性能。
