Holikova Klara, Laakso Hanne, Salo Raimo, Shatillo Artem, Nurmi Antti, Bares Martin, Vanicek Jiri, Michaeli Shalom, Mangia Silvia, Sierra Alejandra, Gröhn Olli
Department of Medical Imaging, St. Anne's University Hospital Brno and Faculty of Medicine, Masaryk University, Brno, Czechia.
A.I. Virtanen Institute for Molecular Sciences, University of Eastern Finland, Kuopio, Finland.
Front Neurosci. 2021 Mar 4;15:625167. doi: 10.3389/fnins.2021.625167. eCollection 2021.

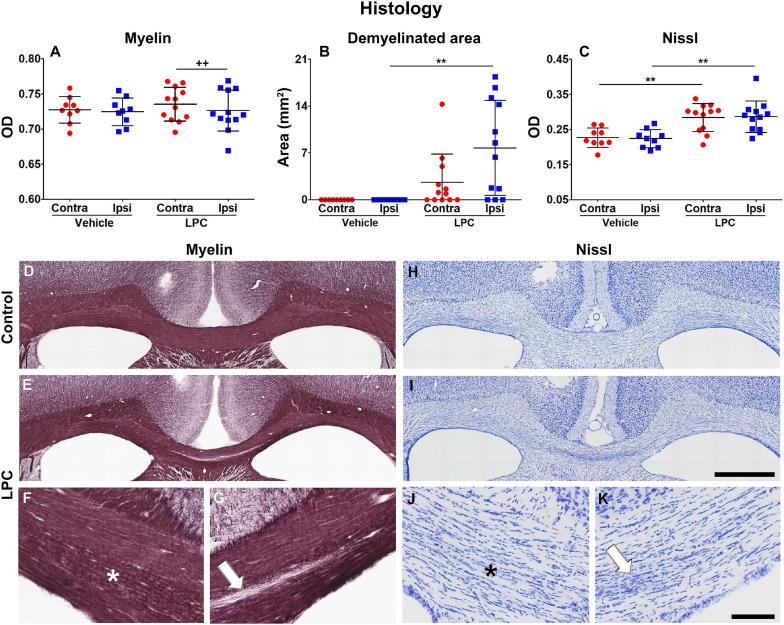

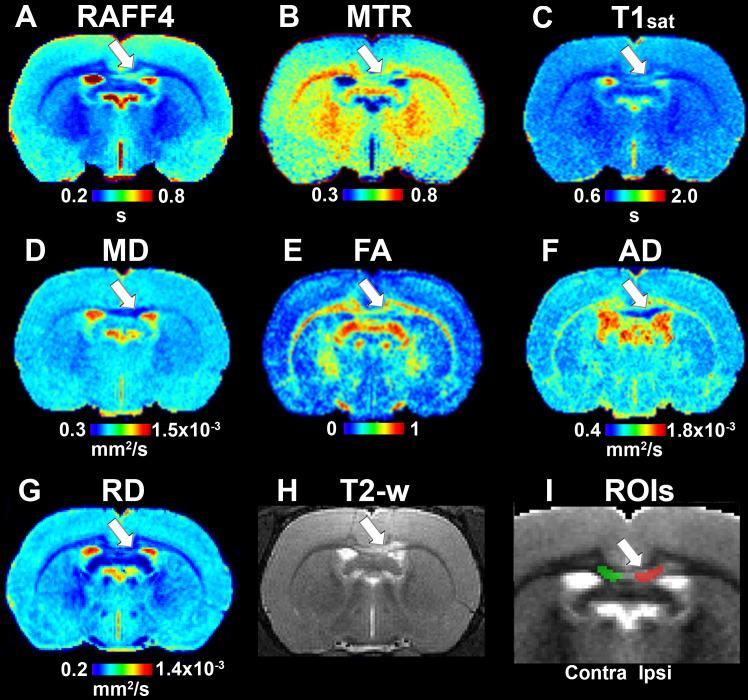

Remyelination is a naturally occurring response to demyelination and has a central role in the pathophysiology of multiple sclerosis and traumatic brain injury. Recently we demonstrated that a novel MRI technique entitled Relaxation Along a Fictitious Field (RAFF) in the rotating frame of rank n (RAFFn) achieved exceptional sensitivity in detecting the demyelination processes induced by lysophosphatidylcholine (LPC) in rat brain. In the present work, our aim was to test whether RAFF4, along with magnetization transfer (MT) and diffusion tensor imaging (DTI), would be capable of detecting the changes in the myelin content and microstructure caused by modifications of myelin sheets around axons or by gliosis during the remyelination phase after LPC-induced demyelination in the corpus callosum of rats. We collected MRI data with RAFF4, MT and DTI at 3 days after injection (demyelination stage) and at 38 days after injection (remyelination stage) of LPC ( = 12) or vehicle ( = 9). Cell density and myelin content were assessed by histology. All MRI metrics detected differences between LPC-injected and control groups of animals in the demyelination stage, on day 3. In the remyelination phase (day 38), RAFF4, MT parameters, fractional anisotropy, and axial diffusivity detected signs of a partial recovery consistent with the remyelination evident in histology. Radial diffusivity had undergone a further increase from day 3 to 38 and mean diffusivity revealed a complete recovery correlating with the histological assessment of cell density attributed to gliosis. The combination of RAFF4, MT and DTI has the potential to differentiate between normal, demyelinated and remyelinated axons and gliosis and thus it may be able to provide a more detailed assessment of white matter pathologies in several neurological diseases.
髓鞘再生是对脱髓鞘的一种自然发生的反应,在多发性硬化症和创伤性脑损伤的病理生理学中起着核心作用。最近我们证明了一种名为旋转坐标系中沿虚拟场的弛豫(RAFF)的新型MRI技术,即n阶RAFF(RAFFn),在检测大鼠脑中溶血磷脂酰胆碱(LPC)诱导的脱髓鞘过程中具有极高的灵敏度。在本研究中,我们的目的是测试RAFF4与磁化传递(MT)和扩散张量成像(DTI)一起,是否能够检测大鼠胼胝体LPC诱导脱髓鞘后的再髓鞘化阶段,轴突周围髓鞘片的改变或胶质增生引起的髓鞘含量和微观结构的变化。我们在注射LPC(n = 12)或载体(n = 9)后3天(脱髓鞘阶段)和注射后38天(再髓鞘化阶段)收集了RAFF4、MT和DTI的MRI数据。通过组织学评估细胞密度和髓鞘含量。所有MRI指标在第3天的脱髓鞘阶段均检测到注射LPC组和对照组动物之间的差异。在再髓鞘化阶段(第38天),RAFF4、MT参数、分数各向异性和轴向扩散率检测到部分恢复的迹象,这与组织学中明显的再髓鞘化一致。径向扩散率从第3天到第38天进一步增加,平均扩散率显示完全恢复,这与归因于胶质增生的细胞密度的组织学评估相关。RAFF4、MT和DTI的组合有可能区分正常、脱髓鞘和再髓鞘化的轴突以及胶质增生,因此它可能能够对几种神经疾病中的白质病变进行更详细的评估。
