Department of Radiology, Affiliated People's Hospital of JiangSu University, Zhenjiang, People's Republic of China.
CAS Key Laboratory of Molecular Imaging, Beijing Key Laboratory of Molecular Imaging, The State Key Laboratory of Management and Control for Complex Systems, Institute of Automation, Chinese Academy of Sciences, Beijing, People's Republic of China.
BMC Med Imaging. 2021 Mar 23;21(1):58. doi: 10.1186/s12880-021-00587-3.
This study aimed to develope and validate a radiomics nomogram by integrating the quantitative radiomics characteristics of No.3 lymph nodes (LNs) and primary tumors to better predict preoperative lymph node metastasis (LNM) in T1-2 gastric cancer (GC) patients.

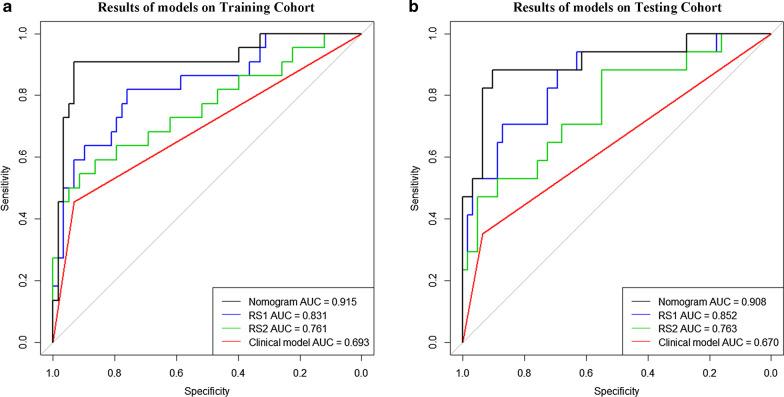

A total of 159 T1-2 GC patients who had undergone surgery with lymphadenectomy between March 2012 and November 2017 were retrospectively collected and divided into a training cohort (n = 80) and a testing cohort (n = 79). Radiomic features were extracted from both tumor region and No. 3 station LNs based on computed tomography (CT) images per patient. Then, key features were selected using minimum redundancy maximum relevance algorithm and fed into two radiomic signatures, respectively. Meanwhile, the predictive performance of clinical risk factors was studied. Finally, a nomogram was built by merging radiomic signatures and clinical risk factors and evaluated by the area under the receiver operator characteristic curve (AUC) as well as decision curve.
Two radiomic signatures, reflecting phenotypes of the tumor and LNs respectively, were significantly associated with LN metastasis. A nomogram incorporating two radiomic signatures and CT-reported LN metastasis status showed good discrimination of LN metastasis in both the training cohort (AUC 0.915; 95% confidence interval [CI] 0.832-0.998) and testing cohort (AUC 0.908; 95% CI 0.814-1.000). The decision curve also indicated its potential clinical usefulness.
The nomogram received favorable predictive accuracy in predicting No.3 LNM in T1-2 GC, and the nomogram showed positive role in predicting LNM in No.4 LNs. The nomogram may be used to predict LNM in T1-2 GC and could assist the choice of therapy.
本研究旨在通过整合第 3 站淋巴结(LN)和原发肿瘤的定量放射组学特征,开发并验证一个放射组学列线图,以更好地预测 T1-2 期胃癌(GC)患者术前淋巴结转移(LNM)。
回顾性收集了 2012 年 3 月至 2017 年 11 月期间接受手术和淋巴结清扫术的 159 例 T1-2 期 GC 患者,分为训练队列(n=80)和测试队列(n=79)。基于每位患者的 CT 图像,从肿瘤区域和第 3 站 LN 中提取放射组学特征。然后,使用最小冗余最大相关性算法选择关键特征,并分别输入到两个放射组学特征中。同时,研究了临床危险因素的预测性能。最后,通过合并放射组学特征和临床危险因素构建列线图,并通过接收者操作特征曲线(AUC)和决策曲线进行评估。
反映肿瘤和 LN 表型的两个放射组学特征与 LN 转移显著相关。纳入两个放射组学特征和 CT 报告的 LN 转移状态的列线图在训练队列(AUC 0.915;95%置信区间[CI] 0.832-0.998)和测试队列(AUC 0.908;95% CI 0.814-1.000)中均能较好地预测 LN 转移。决策曲线也表明了其潜在的临床应用价值。
该列线图在预测 T1-2 期 GC 的第 3 站 LN 转移方面具有良好的预测准确性,且在预测第 4 站 LN 转移方面具有积极作用。该列线图可用于预测 T1-2 期 GC 的 LNM,并可辅助治疗方案的选择。
