利用面部图像通过深度学习(卷积神经网络)创建用于气管插管困难分类的人工智能模型:一项观察性研究。

Creation of an artificial intelligence model for intubation difficulty classification by deep learning (convolutional neural network) using face images: an observational study.

作者信息

Hayasaka Tatsuya, Kawano Kazuharu, Kurihara Kazuki, Suzuki Hiroto, Nakane Masaki, Kawamae Kaneyuki

机构信息

Department of Anesthesiology, Yamagata University Hospital, Yamagata City, Japan.

Department of Medicine, Yamagata University School of Medicine, Yamagata City, Japan.

出版信息

J Intensive Care. 2021 May 6;9(1):38. doi: 10.1186/s40560-021-00551-x.


DOI:10.1186/s40560-021-00551-x
PMID:33952341
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8101256/
Abstract

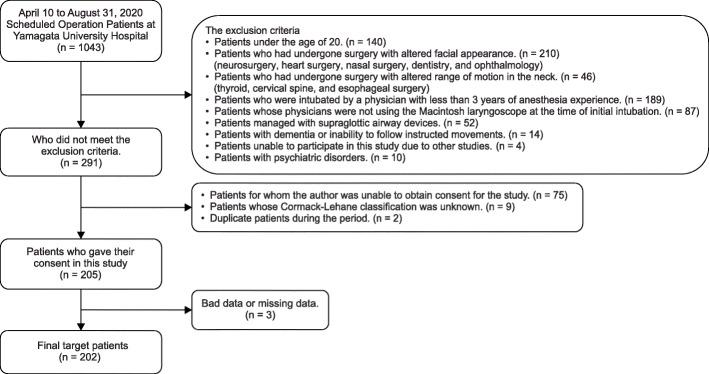

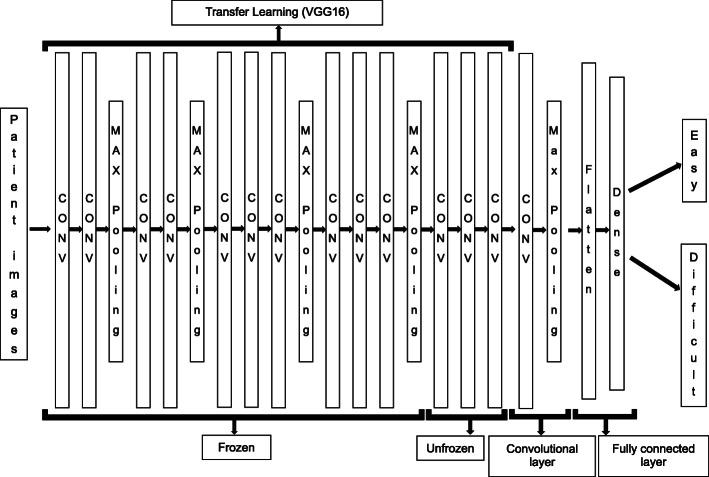

BACKGROUND: Tracheal intubation is the gold standard for securing the airway, and it is not uncommon to encounter intubation difficulties in intensive care units and emergency rooms. Currently, there is a need for an objective measure to assess intubation difficulties in emergency situations by physicians, residents, and paramedics who are unfamiliar with tracheal intubation. Artificial intelligence (AI) is currently used in medical imaging owing to advanced performance. We aimed to create an AI model to classify intubation difficulties from the patient's facial image using a convolutional neural network (CNN), which links the facial image with the actual difficulty of intubation. METHODS: Patients scheduled for surgery at Yamagata University Hospital between April and August 2020 were enrolled. Patients who underwent surgery with altered facial appearance, surgery with altered range of motion in the neck, or intubation performed by a physician with less than 3 years of anesthesia experience were excluded. Sixteen different facial images were obtained from the patients since the day after surgery. All images were judged as "Easy"/"Difficult" by an anesthesiologist, and an AI classification model was created using deep learning by linking the patient's facial image and the intubation difficulty. Receiver operating characteristic curves of actual intubation difficulty and AI model were developed, and sensitivity, specificity, and area under the curve (AUC) were calculated; median AUC was used as the result. Class activation heat maps were used to visualize how the AI model classifies intubation difficulties. RESULTS: The best AI model for classifying intubation difficulties from 16 different images was generated in the supine-side-closed mouth-base position. The accuracy was 80.5%; sensitivity, 81.8%; specificity, 83.3%; AUC, 0.864; and 95% confidence interval, [0.731-0.969], indicating that the class activation heat map was concentrated around the neck regardless of the background; the AI model recognized facial contours and identified intubation difficulties. CONCLUSION: This is the first study to apply deep learning (CNN) to classify intubation difficulties using an AI model. We could create an AI model with an AUC of 0.864. Our AI model may be useful for tracheal intubation performed by inexperienced medical staff in emergency situations or under general anesthesia.

摘要

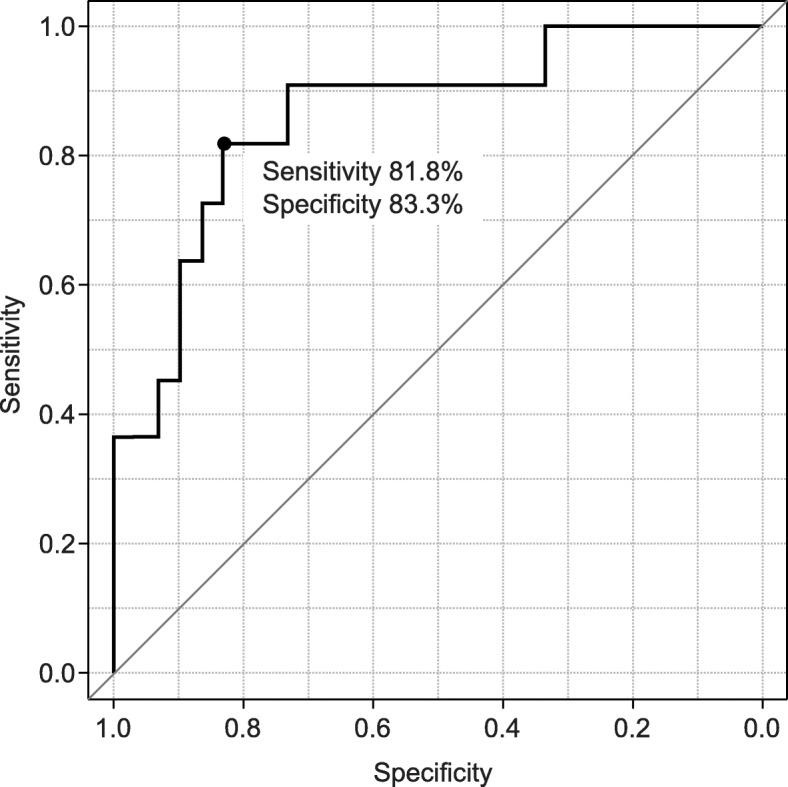

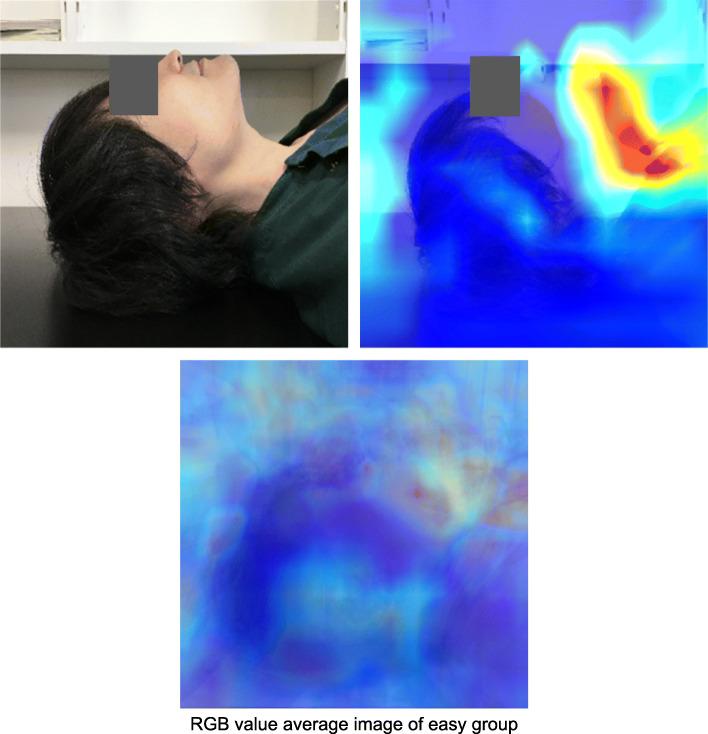

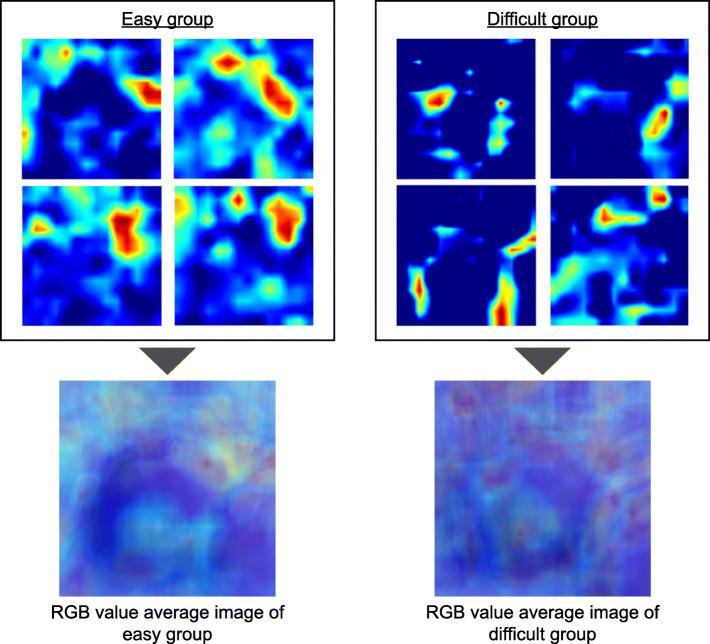

背景:气管插管是确保气道安全的金标准,在重症监护病房和急诊室遇到插管困难并不罕见。目前,需要一种客观的方法,供不熟悉气管插管的医生、住院医师和护理人员在紧急情况下评估插管困难程度。由于先进的性能,人工智能(AI)目前已应用于医学成像领域。我们旨在创建一个人工智能模型,使用卷积神经网络(CNN)从患者面部图像中对插管困难进行分类,该网络将面部图像与实际插管难度联系起来。 方法:纳入2020年4月至8月在山形大学医院计划进行手术的患者。排除面部外观改变、颈部活动范围改变的手术患者,以及由麻醉经验少于3年的医生进行插管的患者。自术后第二天起从患者处获取16张不同的面部图像。所有图像均由麻醉医生判断为“容易”/“困难”,并通过将患者面部图像与插管难度相联系,利用深度学习创建人工智能分类模型。绘制实际插管难度和人工智能模型的受试者工作特征曲线,并计算敏感性、特异性和曲线下面积(AUC);将AUC中位数作为结果。使用类激活热图来可视化人工智能模型如何对插管困难进行分类。 结果:在仰卧位-侧面-闭口-基线位置生成了用于从16张不同图像中分类插管困难的最佳人工智能模型。准确率为80.5%;敏感性为81.8%;特异性为83.3%;AUC为0.864;95%置信区间为[0.731-0.969],表明无论背景如何,类激活热图都集中在颈部周围;人工智能模型识别面部轮廓并确定插管困难程度。 结论:这是第一项应用深度学习(CNN)通过人工智能模型对插管困难进行分类的研究。我们能够创建一个AUC为0.864的人工智能模型。我们的人工智能模型可能有助于无经验的医务人员在紧急情况下或全身麻醉下进行气管插管。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/504329868a85/40560_2021_551_Fig9_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/1d10de06c4c3/40560_2021_551_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/bce78e6be0a8/40560_2021_551_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/de8ddf5c9bae/40560_2021_551_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/8339b63e2d81/40560_2021_551_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/8f773c94c6dc/40560_2021_551_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/d0de204c4acd/40560_2021_551_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/e85815533574/40560_2021_551_Fig7_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/f19f71db2b7e/40560_2021_551_Fig8_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/504329868a85/40560_2021_551_Fig9_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/1d10de06c4c3/40560_2021_551_Fig1_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/bce78e6be0a8/40560_2021_551_Fig2_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/de8ddf5c9bae/40560_2021_551_Fig3_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/8339b63e2d81/40560_2021_551_Fig4_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/8f773c94c6dc/40560_2021_551_Fig5_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/d0de204c4acd/40560_2021_551_Fig6_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/e85815533574/40560_2021_551_Fig7_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/f19f71db2b7e/40560_2021_551_Fig8_HTML.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/08f9/8101256/504329868a85/40560_2021_551_Fig9_HTML.jpg
