Mixed convection in sinusoidal lid driven cavity with non-uniform temperature distribution on the wall utilizing nanofluid.

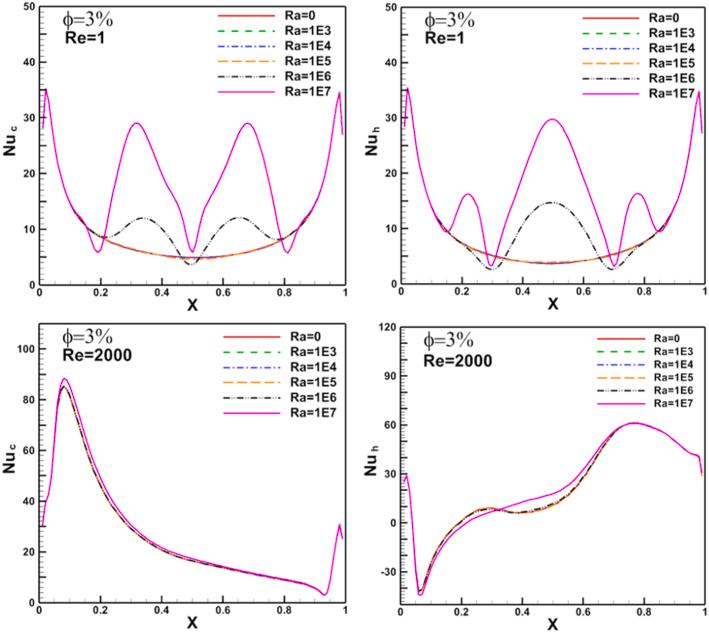

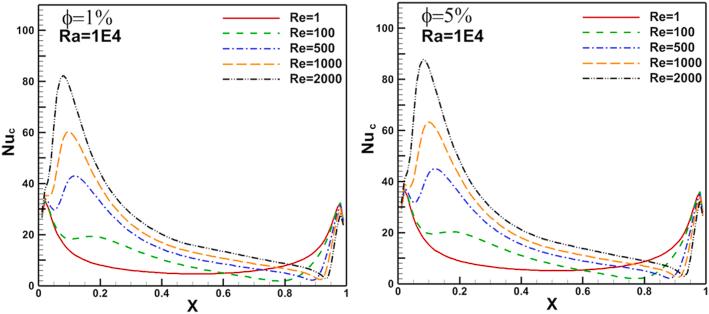

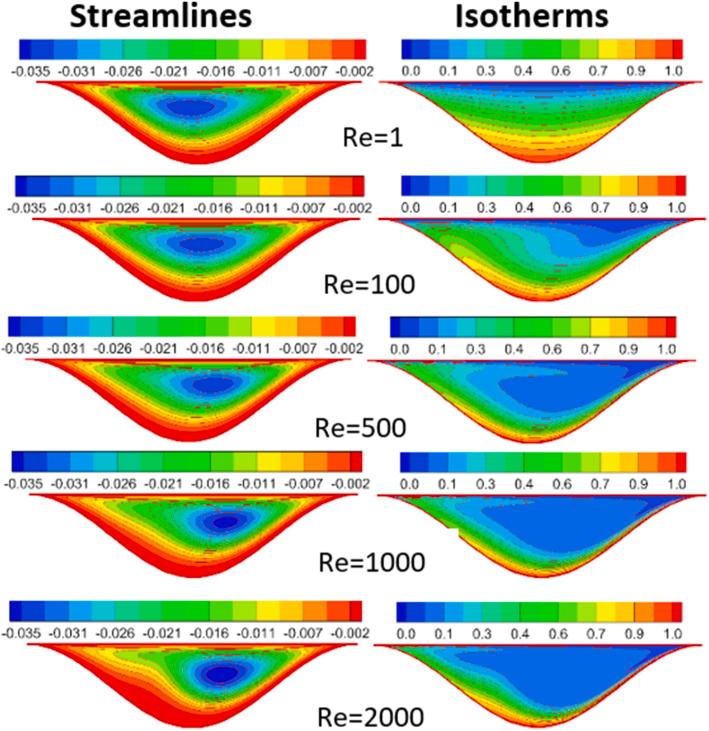

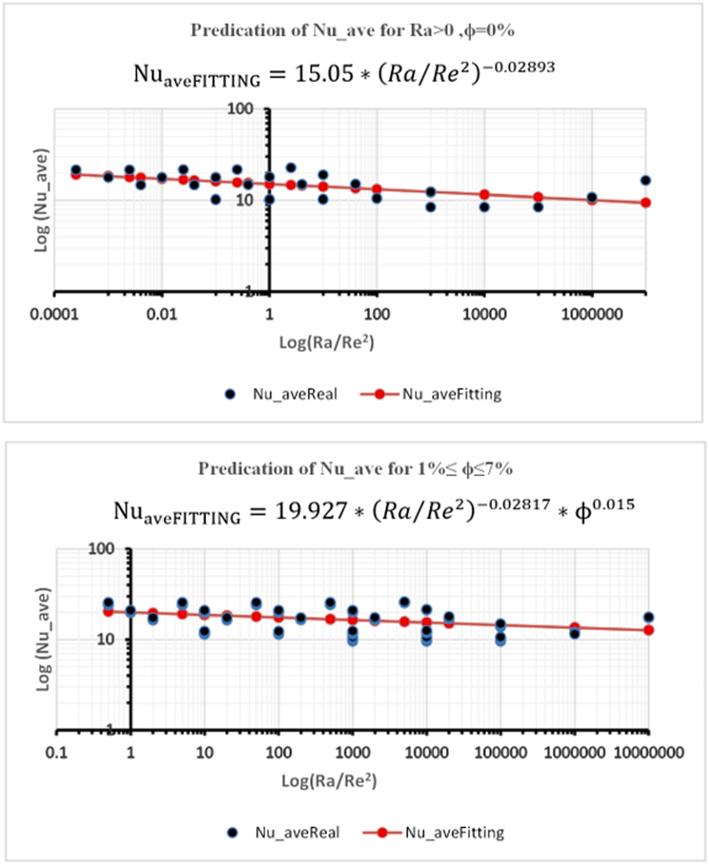

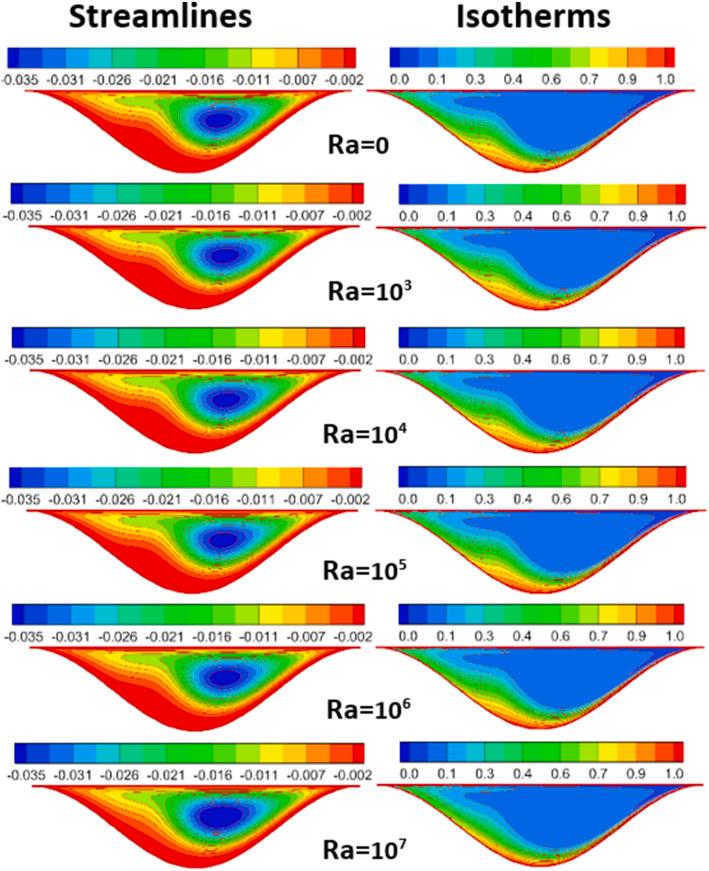

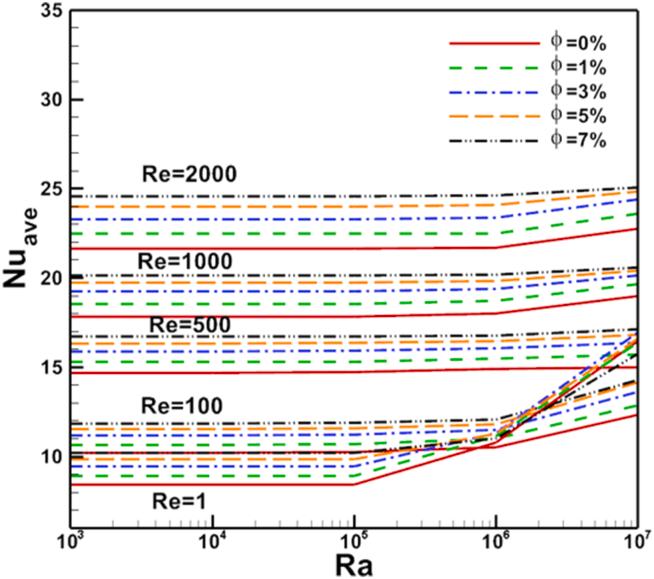

Mixed convection heat transfer of Cu-water nanofluid in an arc cavity with non-uniform heating has been numerically studied. The top flat moving wall is isothermally cooled at Tc and moved with a constant velocity. While the heated arc stationary wall of the cavity is maintained at a hot temperature Th. FORTRAN code is used to solve the mass, momentum, and energy equations in dimensionless form with suitable boundary conditions. In this study, the Reynolds number changed from 1 to 2000, and the Rayleigh number changed from 0 to 10. Also, the range of nanoparticles volume fraction extends from ϕ = 0 to 0.07. Stream vorticity method selected for the discretization of flow and energy equations. The present results are compared with the previous results for the validation part, where the results found a good agreement with the others works. The isotherms are regulated near the arc-shape wall causing a steep temperature gradient at these regions and the local and average heat transfer rate increases with increased volume fraction or Reynolds number or Rayleigh number. Finally, Correlation equations of the average Nusselt number from numerical results are presented.
