3-2型聚偏氟乙烯基磁电薄膜中CoFeO插层氧化石墨烯片二维磁致伸缩填料的效应
Effect of the Two-Dimensional Magnetostrictive Fillers of CoFeO-Intercalated Graphene Oxide Sheets in 3-2 Type Poly(vinylidene fluoride)-Based Magnetoelectric Films.
作者信息
Baek Geunryeol, Yang Su-Chul
机构信息
Department of Chemical Engineering (BK21 FOUR Graduate Program), Dong-A University, Busan 49315, Korea.
出版信息
Polymers (Basel). 2021 May 28;13(11):1782. doi: 10.3390/polym13111782.

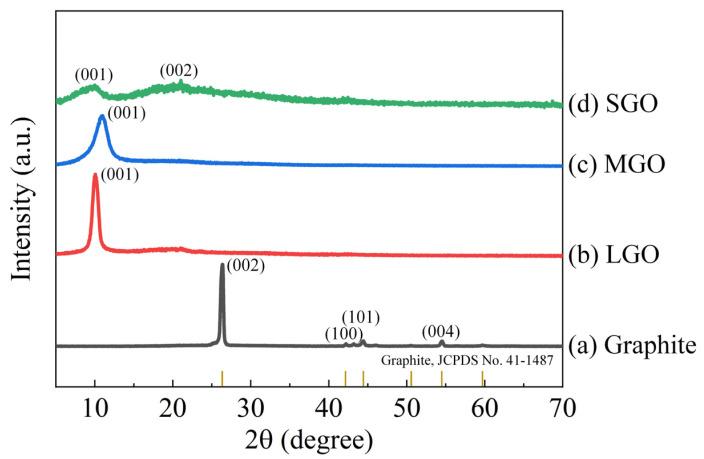

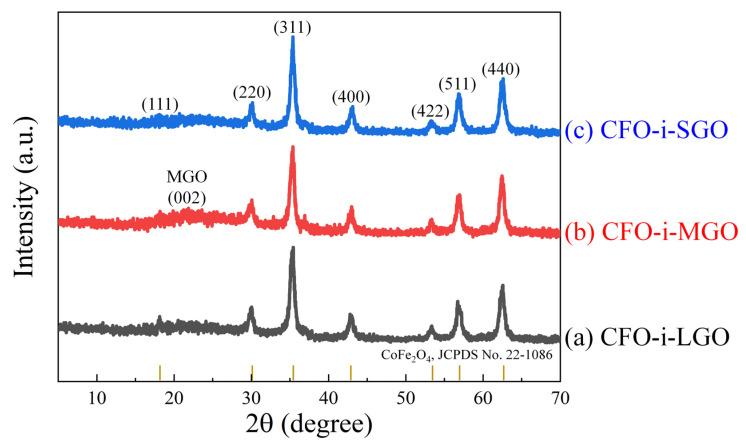

In the last decade, magnetoelectric (ME) polymer films have been developed by including zero-dimensional or one-dimensional magnetostrictive fillers in a piezoelectric polymer matrix. Existing reports on ME polymer films reveal that the shape of the magnetostrictive fillers is a critical determinant of the polymeric phase conformation, strain transfer between the piezoelectric and magnetostrictive phases, and dipole alignment in the films. In this study, to investigate the effect of two-dimensional (2D) magnetostrictive fillers on piezoelectric, magnetic, and magnetoelectric responses, 3-2 type ME films were prepared using CoFeO-intercalated graphene oxide (CFO-i-GO) fillers and poly(vinylidene fluoride) (PVDF) polymers. The 2D fillers of CFO-i-GO were hydrothermally synthesized by CFO intercalation into the interlayers of GO sheets with different lateral sizes, which were controlled by ultrasonication treatment. It was found that the large-lateral-size GO (LGO), medium-lateral-size GO (MGO), and small-lateral-size GO (SGO) fillers in the PVDF-based ME films exhibited a lateral size effect on CFO intercalation, polymeric phase conformation, dipole alignment, and magnetoelectric responses. A maximum ME coefficient () of 3.0 mV/cm∙Oe was achieved with a strong linearity (r) of 0.9992 at an off-resonance frequency () of 1 kHz and applied direct current (dc) magnetic field () of ± 1000 Oe. The 3-2 type polymer-based ME films with reliable ME responses have potential for use in high-feasibility ME devices for biomedical sensing applications.

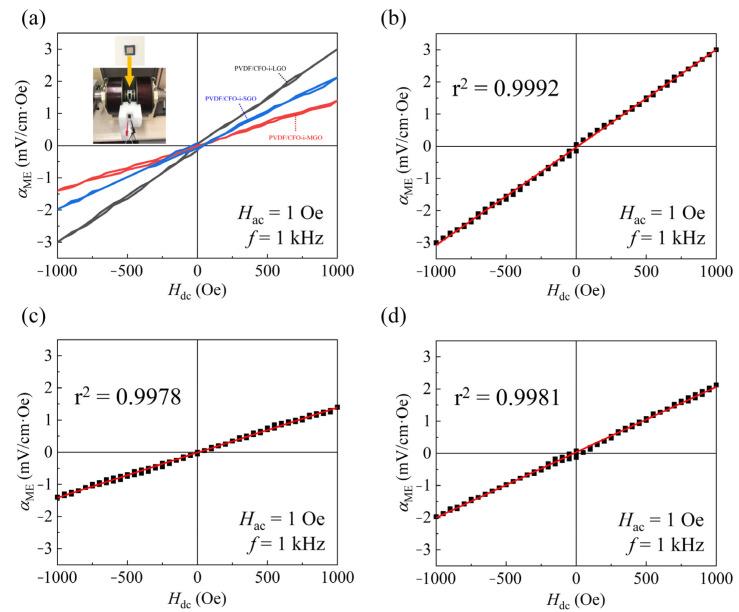

在过去十年中,通过在压电聚合物基体中加入零维或一维磁致伸缩填料,已开发出磁电(ME)聚合物薄膜。现有关于ME聚合物薄膜的报道表明,磁致伸缩填料的形状是聚合物相构象、压电相和磁致伸缩相之间的应变传递以及薄膜中偶极排列的关键决定因素。在本研究中,为了研究二维(2D)磁致伸缩填料对压电、磁和磁电响应的影响,使用钴铁氧体插层氧化石墨烯(CFO-i-GO)填料和聚偏二氟乙烯(PVDF)聚合物制备了3-2型ME薄膜。通过将CFO插层到不同横向尺寸的氧化石墨烯片层间,利用超声处理控制横向尺寸,水热合成了CFO-i-GO的二维填料。研究发现,基于PVDF的ME薄膜中的大横向尺寸氧化石墨烯(LGO)、中等横向尺寸氧化石墨烯(MGO)和小横向尺寸氧化石墨烯(SGO)填料在CFO插层、聚合物相构象、偶极排列和磁电响应方面表现出横向尺寸效应。在1 kHz的非共振频率()和±1000 Oe的外加直流(dc)磁场()下,获得了3.0 mV/cm∙Oe的最大ME系数(),线性度(r)高达0.9992。具有可靠磁电响应的3-2型聚合物基ME薄膜在用于生物医学传感应用的高可行性磁电装置中具有应用潜力。
