Prospective study on the Eustachian tube function during Frenzel maneuver in a hypobaric/hyperbaric pressure chamber.

INTRODUCTION

The Frenzel maneuver describes a technique for middle ear equalizing which is frequently used by apnea divers. It offers advantages compared to the most commonly used techniques such as the Valsalva or Toynbee maneuver. Until now, there is insufficient literature about the pressure dynamics and Eustachian tube (ET) function during the Frenzel maneuver. The aim of the present study was to characterize the ET function during the Frenzel maneuver.

MATERIALS AND METHODS

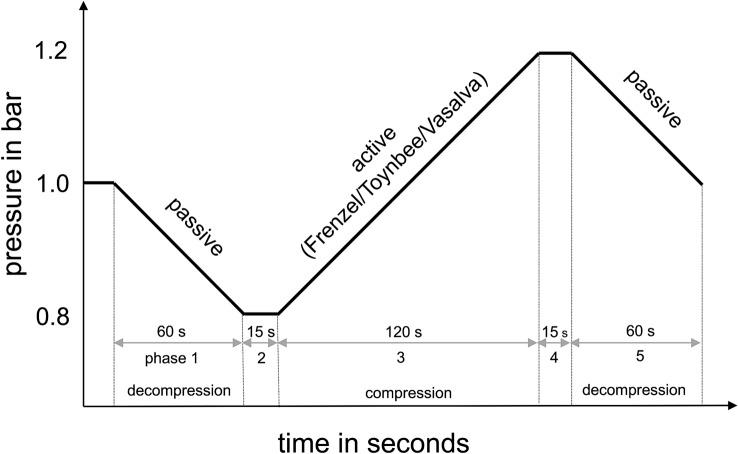

By means of an established standardized profile of compression and decompression in a hypo/hyperbaric pressure chamber, we examined different parameters such as the ET opening pressure (ETOP), ET opening duration (ETOD), and ET opening frequency (ETOF) in 11 experienced apnea divers and compared them to the parameters during the Valsalva and Toynbee maneuver.

RESULTS

Standard values for ETOP, ETOD, and ETOF could be established for the Frenzel maneuver under standardized conditions in a hypo/hyperbaric pressure chamber. Compared to the Frenzel maneuver, ETOP was higher and ETOD longer (both p < 0.001) during the Valsalva maneuver whereas ETOP was lower and ETOD shorter (both p < 0.001) during the Toynbee maneuver. No difference regarding ETOF was observed between the Frenzel, Valsalva, and Toynbee maneuver.

DISCUSSION

The Frenzel maneuver was shown to be at least as effective as the Valsalva maneuver concerning ET opening. We believe that knowledge of the Frenzel technique might facilitate the pressure equalization during diving and recommend implementation of an appropriate equalization training in apnea and scuba diving education.
