Zhou Xiaohong, Vovk Evgeny I, Liu Yang, Guan Cairu, Yang Yong
School of Physical Science and Technology, ShanghaiTech University, Shanghai, China.
Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai, China.
Front Chem. 2021 May 31;9:694559. doi: 10.3389/fchem.2021.694559. eCollection 2021.

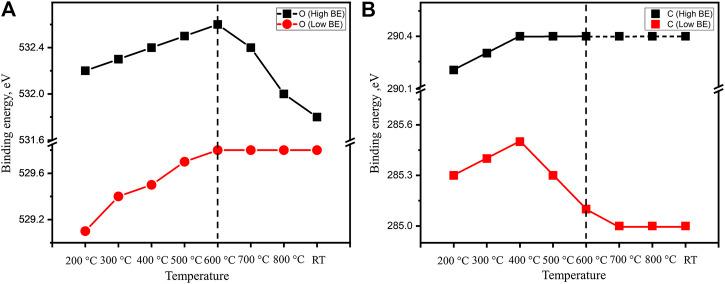

Lanthanum-containing materials are widely used in oxidative catalytic and electrocatalytic reactions such as oxidative coupling of methane (OCM) and solid oxide fuel cells (SOFCs). However, many of these materials are highly susceptible to air contamination which means characterization results generally cannot be associated with their reactivity. In this study, the activation processes of an -prepared bulk LaOCO sample and an as-prepared La(OH) sample are investigated by X-ray photoelectron spectroscopy (XPS), X-ray diffraction (XRD), and online mass spectroscopy (MS). Results indicate that the LaOCO sample, during linear heating to 800°C, always contains some carbonates near the surface region, which supports a two-step model of bulk carbonate decomposition through surface sites. The La(OH) sample structure evolution is more complex due to contaminations from air exposure. Together with TGA results, online mass analysis of water and CO signal loss showed that three major catalyst structure phase change steps and a preheating up to 800°C are required for the as-prepared material to be transferred to LaO. This process is carefully investigated combining the three methodologies. XPS and XRD data further reveal transformations of variety of surface structures and forms including hybrid phases with hydroxyl, carbonates, and oxide as the sample heated to different temperatures within the range from 200 to 800°C. The results provide useful insights on the activation and deactivation of La-contained materials.
含镧材料广泛应用于氧化催化和电催化反应,如甲烷氧化偶联(OCM)和固体氧化物燃料电池(SOFC)。然而,这些材料中的许多对空气污染高度敏感,这意味着表征结果通常无法与其反应活性相关联。在本研究中,通过X射线光电子能谱(XPS)、X射线衍射(XRD)和在线质谱(MS)研究了预制备的块状LaOCO样品和预制备的La(OH)样品的活化过程。结果表明,LaOCO样品在加热至800°C的线性升温过程中,表面区域附近始终含有一些碳酸盐,这支持了通过表面位点进行块状碳酸盐分解的两步模型。由于空气暴露造成的污染,La(OH)样品的结构演变更为复杂。结合热重分析(TGA)结果,对水和CO信号损失的在线质谱分析表明,预制备的材料转变为LaO需要三个主要的催化剂结构相变步骤以及高达800°C的预热。结合这三种方法对该过程进行了仔细研究。XPS和XRD数据进一步揭示了在200至800°C范围内将样品加热至不同温度时,包括具有羟基、碳酸盐和氧化物的混合相在内的各种表面结构和形式的转变。这些结果为含镧材料的活化和失活提供了有用的见解。
