Yang Jianchao, Tang Weijian, Yuan Ruihan, Chen Yu, Wang Jing, Wu Yihui, Yin Wan-Jian, Yuan Ningyi, Ding Jianning, Zhang Wen-Hua
Sichuan Research Center of New Materials, Institute of Chemical Materials, China Academy of Engineering Physics 596 Yinhe Road, Shuangliu Chengdu 610200 China
Jiangsu Collaborative Innovation Center of Photovoltaic Science and Engineering, Changzhou University Changzhou 213164 China
Chem Sci. 2020 Dec 17;12(6):2050-2059. doi: 10.1039/d0sc06354a.

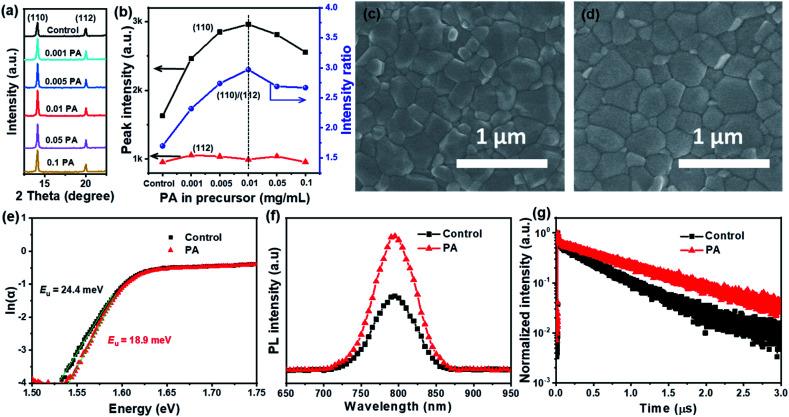

Trap-dominated non-radiative charge recombination is one of the key factors that limit the performance of perovskite solar cells (PSCs), which was widely studied in methylammonium (MA) containing PSCs. However, there is a need to elucidate the defect chemistry of thermally stable, MA-free, cesium/formamidinium (Cs/FA)-based perovskites. Herein, we show that d-penicillamine (PA), an edible antidote for treating heavy metal ions, not only effectively passivates the iodine vacancies (Pb defects) through coordination with the -SH and -COOH groups in PA, but also finely tunes the crystallinity of Cs/FA-based perovskite film. Benefiting from these merits, a reduction of non-radiative recombination and an increase in photoluminescence lifetime have been achieved. As a result, the champion MA-free device exhibits an impressive power conversion efficiency (PCE) of 22.4%, an open-circuit voltage of 1.163 V, a notable fill factor of 82%, and excellent long-term operational stability. Moreover, the defect passivation strategy can be further extended to a mini module (substrate: 4 × 4 cm, active area: 7.2 cm) as well as a wide-bandgap (∼1.73 eV) Cs/FA perovskite system by delivering PCEs of 16.3% and 20.2%, respectively, demonstrating its universality in defect passivation for efficient PSCs.
陷阱主导的非辐射电荷复合是限制钙钛矿太阳能电池(PSC)性能的关键因素之一,这在含甲胺(MA)的PSC中得到了广泛研究。然而,有必要阐明热稳定、无MA、基于铯/甲脒(Cs/FA)的钙钛矿的缺陷化学。在此,我们表明,d-青霉胺(PA)是一种用于治疗重金属离子的可食用解毒剂,它不仅通过与PA中的-SH和-COOH基团配位有效地钝化碘空位(Pb缺陷),还能精细调节基于Cs/FA的钙钛矿薄膜的结晶度。受益于这些优点,实现了非辐射复合的减少和光致发光寿命的增加。结果,不含MA的冠军器件表现出令人印象深刻的22.4%的功率转换效率(PCE)、1.163 V的开路电压、82%的显著填充因子以及出色的长期运行稳定性。此外,通过分别提供16.3%和20.2%的PCE,缺陷钝化策略可以进一步扩展到微型模块(基板:4×4 cm,有源面积:7.2 cm)以及宽带隙(~1.73 eV)的Cs/FA钙钛矿体系,证明了其在高效PSC缺陷钝化中的通用性。
