Mitani Sohei, Sato Eriko, Kawaguchi Naoto, Sawada Shun, Sakamoto Kayo, Kitani Takashi, Sanada Tomoyoshi, Yamada Hiroyuki, Hato Naohito
Department of Otolaryngology-Head and Neck Surgery Ehime University Graduate School of Medicine Shitsukawa, Toon Ehime Japan.
Department of Radiology Ehime University Graduate School of Medicine Shitsukawa, Toon Ehime Japan.
Laryngoscope Investig Otolaryngol. 2021 May 19;6(3):432-437. doi: 10.1002/lio2.581. eCollection 2021 Jun.

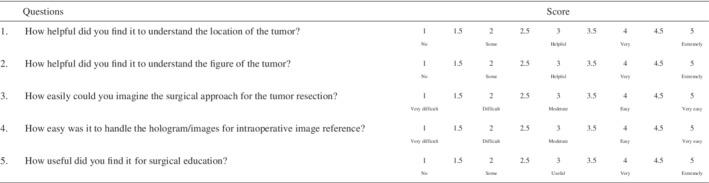

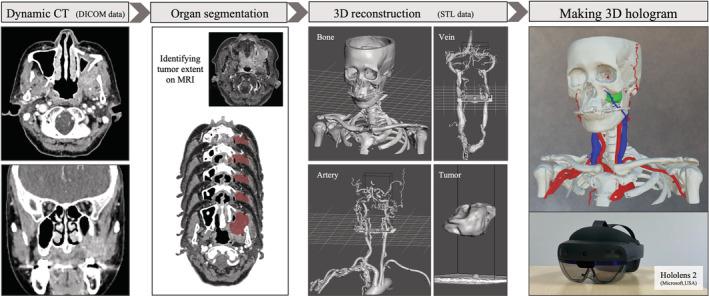

OBJECTIVE: We report our first experience of using a case-specific three-dimensional (3D) hologram for tumor resection in otolaryngology to show the proof of concept. In addition, a questionnaire was administered to assess the usefulness of the mixed reality technique in otolaryngology. METHODS: A case-specific 3D hologram was developed from enhanced images of dynamic computed tomography, with reference to contrast-enhanced magnetic resonance images, and used for preoperative planning and intraoperative image reference. To evaluate the usefulness of the 3D hologram with head mount displays (HMDs), 18 attendings and resident otolaryngologists completed a questionnaire with the Likert scale. RESULTS: The case-specific 3D hologram on HMDs was successfully used by means of easy gesture-handling without any monitors preoperatively and intraoperatively. The experience of picturing the tumor localization and evaluating the surgical approach was statistically better using the 3D hologram on HMDs than using the computer images ( < .01). Similarly, the holograms were observed to be better for intraoperative application and surgical education than computer images ( < .01). CONCLUSION: We demonstrated the use of a case-specific 3D hologram for tumor resection in otolaryngology. The technology may be useful for preoperative planning and intraoperative image reference, especially for challenging cases, and surgical education. LEVEL OF EVIDENCE: NA.
目的:我们报告了在耳鼻喉科使用特定病例三维(3D)全息图进行肿瘤切除的首次经验,以证明其概念的可行性。此外,还进行了一项问卷调查,以评估混合现实技术在耳鼻喉科的实用性。 方法:根据动态计算机断层扫描的增强图像,并参考对比增强磁共振图像,制作特定病例的3D全息图,并将其用于术前规划和术中图像参考。为了评估头戴式显示器(HMD)辅助的3D全息图的实用性,18名耳鼻喉科主治医师和住院医师完成了一份采用李克特量表的问卷。 结果:术前和术中,通过简单的手势操作,无需任何监视器,成功使用了HMD辅助的特定病例3D全息图。使用HMD辅助的3D全息图来描绘肿瘤位置和评估手术入路,在统计学上比使用计算机图像的体验更好(<0.01)。同样,与计算机图像相比,全息图在术中应用和手术教学方面表现更佳(<0.01)。 结论:我们展示了特定病例3D全息图在耳鼻喉科肿瘤切除中的应用。该技术可能有助于术前规划和术中图像参考,特别是对于具有挑战性的病例以及手术教学。 证据级别:无。
