Aluminium-Based Plasmonic Sensors in Ultraviolet.

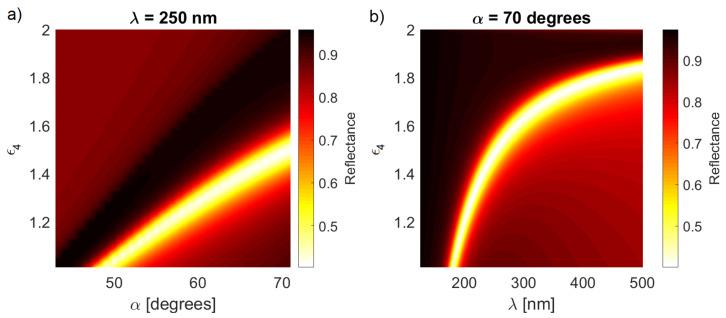

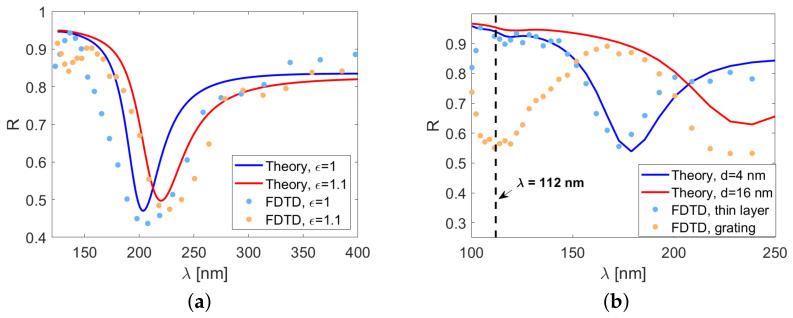

We theoretically investigate the surface plasmon polaritons (SPPs) generated on an Al film covered by an AlO layer in the context of their application as refractive index sensors. The calculated reflection spectra indicate SPP resonance excited by ultraviolet light, which was affected by the thickness of both the metal and the oxide layers on the surface. With optimized geometry, the system can work as a tunable sensor with a wide UV wavelength range λ∼ 150-300 nm. We report a quality factor of up to 10 and a figure of merit on the order of 9, and these are comparable to the performance of more complicated UV plasmonic nanostructures and allow for the detection of a 1% change of the refraction index. The sensor can operate on the basis of either the incidence angle or wavelength changes. The effect of oxide surface roughness is also investigated with an emphasis on amplitude-based refraction index sensing.
