Analysis of EDM Performance, through a Thermal-Electrical Model with a Trunk-Conical Discharge Channel, Using a Steel Tool and an Aluminium Workpiece.

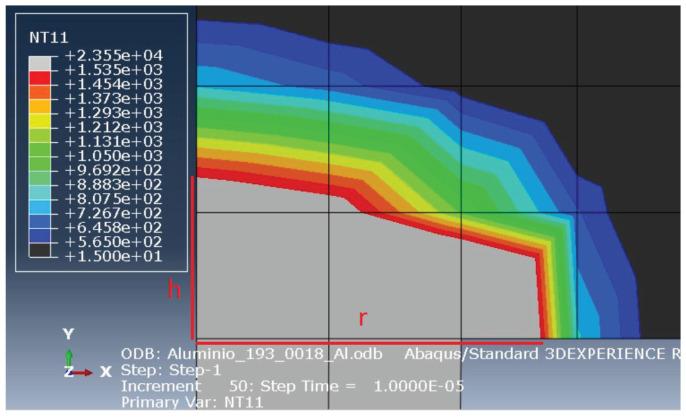

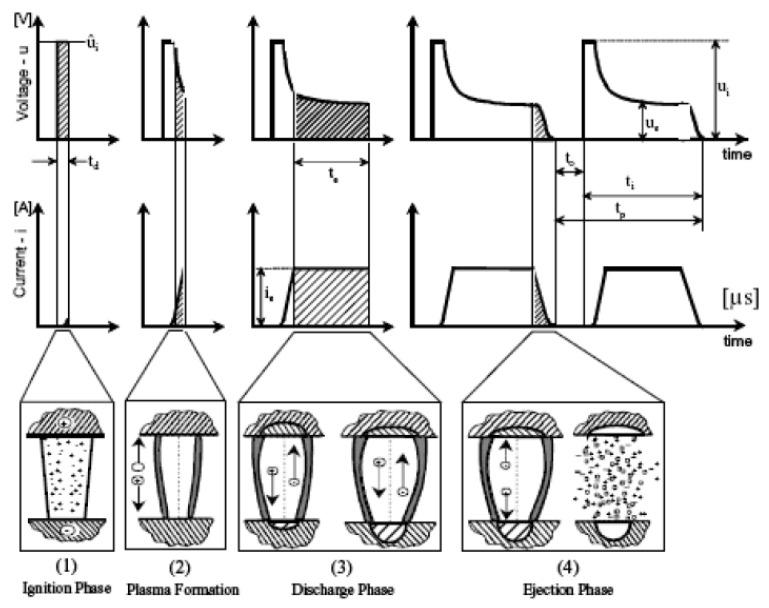

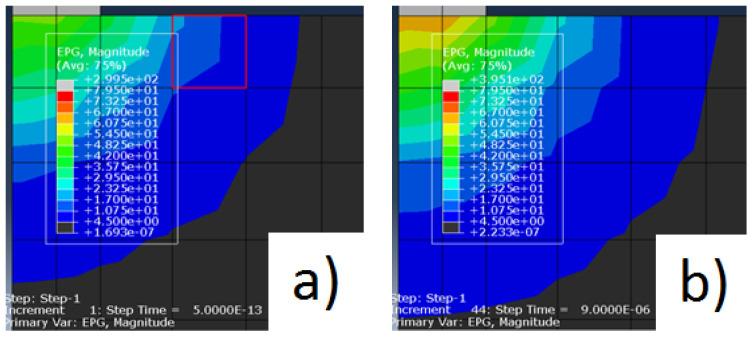

In this article, a finite element (FE) thermal-electrical model with a trunk-conical discharge channel is employed to simulate individual EDM discharges with a time-on of 18 μs up to 320 μs, which are subsequently compared with the experimental results to validate the model. The discharge channel is a trunk-conical electrical conductor which dissipates heat by the Joule heating effect, being the correspondent factor equal to 1. Instead of the usual copper-iron electrode combination, steel (DIN CK45) and aluminium alloys (DIN 3.4365) are the implemented materials on both the tool and the workpiece, respectively. The numerical results were measured using the melting temperature of the materials as the boundary of material removal. The results obtained with the thermal-electrical model, namely the tool wear ratio, the tool wear rate, the material removal rate, and the surface roughness, are in good agreement with experimental results, showing that the new FE model is capable of predicting accurately with different materials for the electrodes.
