Electrochemical Methods Laboratory-Analytical and Applied Chemistry Department at Institut Químic de Sarrià, Universitat Ramon Llull, Via Augusta, 390, 08017 Barcelona, Spain.
Tractivus SL, Via Augusta, 394, 08017 Barcelona, Spain.
Sensors (Basel). 2021 Jun 18;21(12):4185. doi: 10.3390/s21124185.

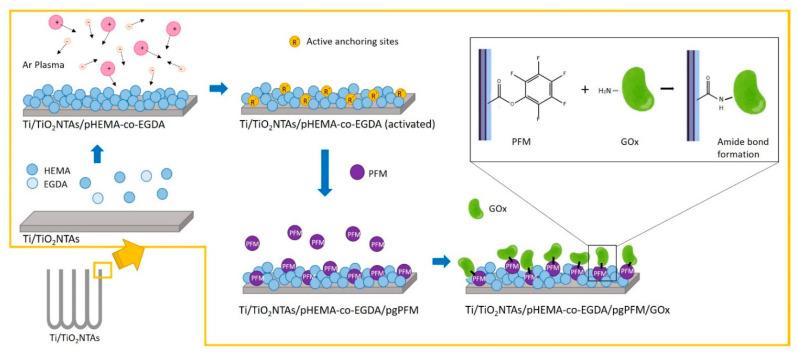

Bioanalytical methods, in particular electrochemical biosensors, are increasingly used in different industrial sectors due to their simplicity, low cost, and fast response. However, to be able to reliably use this type of device, it is necessary to undertake in-depth evaluation of their fundamental analytical parameters. In this work, analytical parameters of an amperometric biosensor based on covalent immobilization of glucose oxidase (GOx) were evaluated. GOx was immobilized using plasma-grafted pentafluorophenyl methacrylate (pgPFM) as an anchor onto a tailored HEMA-co-EGDA hydrogel that coats a titanium dioxide nanotubes array (TiONTAs). Finally, chitosan was used to protect the enzyme molecules. The biosensor offered outstanding analytical parameters: repeatability (RSD = 1.7%), reproducibility (RSD = 1.3%), accuracy (deviation = 4.8%), and robustness (RSD = 2.4%). In addition, the Ti/TiONTAs/ppHEMA-co-EGDA/pgPFM/GOx/Chitosan biosensor showed good long-term stability; after 20 days, it retained 89% of its initial sensitivity. Finally, glucose concentrations of different food samples were measured and compared using an official standard method (HPLC). Deviation was lower than 10% in all measured samples. Therefore, the developed biosensor can be considered to be a reliable analytical tool for quantification measurements.
生物分析方法,特别是电化学生物传感器,由于其简单、低成本和快速响应的特点,在不同的工业领域得到了越来越多的应用。然而,为了能够可靠地使用这种类型的设备,有必要对其基本分析参数进行深入评估。在这项工作中,评估了基于共价固定化葡萄糖氧化酶(GOx)的电流型生物传感器的分析参数。GOx 采用等离子体接枝五氟苯基甲基丙烯酸酯(pgPFM)作为锚定物固定在定制的 HEMA-co-EGDA 水凝胶上,该水凝胶覆盖二氧化钛纳米管阵列(TiONTAs)。最后,壳聚糖被用来保护酶分子。该生物传感器具有出色的分析参数:重复性(RSD = 1.7%)、再现性(RSD = 1.3%)、准确性(偏差 = 4.8%)和稳健性(RSD = 2.4%)。此外,Ti/TiONTAs/ppHEMA-co-EGDA/pgPFM/GOx/Chitosan 生物传感器表现出良好的长期稳定性;20 天后,它保留了初始灵敏度的 89%。最后,使用官方标准方法(HPLC)测量和比较了不同食品样品的葡萄糖浓度。在所有测量的样品中,偏差均低于 10%。因此,开发的生物传感器可以被认为是一种用于定量测量的可靠分析工具。
