Liang Sihui, Dai Hairong, Zhang Huayin, Li Jian, Zhang Qiuping, Xu Qian, Wang Chunmin
Department of Nutrition and Food Hygiene, School of Public Health, Southeast University, Nanjing 210009, China.
Suzhou Center for Disease Control and Prevention, Suzhou 215100, China.
Se Pu. 2021 Jun;39(6):624-632. doi: 10.3724/SP.J.1123.2020.12026.
Tetracyclines and fluoroquinolones are common antibacterial drugs used in aquaculture, and their residues may pose a risk to human health. The low concentration of drug residues and complex matrixes such as fats and proteins in aquatic products necessitate the urgent development of efficient sample pretreatment methods. Solid phase extraction (SPE) is the most common sample pretreatment method, in which the core is an adsorbent. Compared with traditional SPE adsorbents, nanofiber mat (NFsM) has more interaction sites because of their large specific surface area. Furthermore, NFsMs modified with specific functional groups can significantly improve the extraction efficiency of tetracyclines and fluoroquinolones. Polydopamine (PDA) is spontaneously synthesized by the oxidative self-polymerization of dopamine-hydrochloride in alkaline solutions (pH>7.5). Because of its rich amino and catechol groups, PDA can form stacking, electrostatic attraction, hydrophobic interaction, and hydrogen bonding interactions with target molecules. By exploiting the above advantages, polystyrene (PS) NFsM, as a template, was prepared by the electrostatic spinning method, and PDA-PS NFsM was obtained by functional modification of PDA through self-polymerization. Fourier transform infrared spectroscopy (FT-IR) and field-emission scanning electron microscopy (FESEM) were used to characterize the synthesized PS NFsM and PDA-PS NFsM. It was proved that PDA was successfully modified on the PS NFsM, with the SEM images revealing a rough outer core shell structure and an inner honeycomb structure. Subsequently, the handmade SPE column with PDA-PS NFsM was completed. A novel and efficient screening analytical method based on PDA-PS NFsM for the simultaneous determination of three tetracyclines (tetracycline (TET), chlortetracycline (CTC), and oxytetracycline (OTC)) and three fluoroquinolones (enrofloxacin (ENR), ciprofloxacin (CIP), and norfloxacin (NOR)) in fish by ultra performance liquid chromatography-tandem mass spectrometry (UPLC-MS/MS) was established. The SPE procedure was optimized to develop an efficient method for sample preparation. Evaluate parameters including the amount of NFsM usage, ionic strength, flow rate of the sample solution, composition of eluent, and breakthrough volume were investigated. Only (20±0.1) mg of PDA-PS NFsM was sufficient to completely adsorb the targets, and the analytes retained on NFsM could be eluted by 1 mL of formic acid-ethyl acetate (containing 20% methanol) (1∶99, v/v). The residues were redissolved in 0.1 mL 10% methanol aqueous solution containing 0.2% formic acid. In addition, no adjustment of the pH and ionic strength of the sample solutions was required, and the breakthrough volume was 50 mL. The limits of detection (LODs) and limits of quantification (LOQs) of the six target compounds were measured at 3 times and 10 times the signal-to-noise ratio (), respectively. The LODs and LOQs were 0.3-1.5 μg/kg and 1.0-5.0 μg/kg, respectively. The linear ranges of the six target compounds were LOQ-1000 μg/kg, and the coefficient of determination () was greater than 0.999. To evaluate the accuracy and precision, blank spiked samples at three levels (low, medium, and high) were prepared for the recovery experiments, and each level with six parallel samples (=6). The recoveries ranged from 94.37% to 102.82%, with intra-day and inter-day relative standard deviations of 2.38% to 8.06% and 4.10% to 9.10%, respectively. To evaluate the purification capacity of PDA-PS NFsM, the matrix effects before and after SPE were calculated and compared. Matrix effects before SPE were -12.98% to -38.68%. After the completion of SPEbased on PDA-PS NFsM, the matrix effect of each target analyte was significantly reduced to -2.15% to -7.36%, which proved the significant matrix removal capacity of PDA-PS NFsM. Finally, the practicality of this method was evaluated by using it to analyze real samples. This SPE method based on PDA-PS NFsM is efficient, practical, and environmentally friendly, and it has great potential for use in the routine monitoring of drug residues in fish.

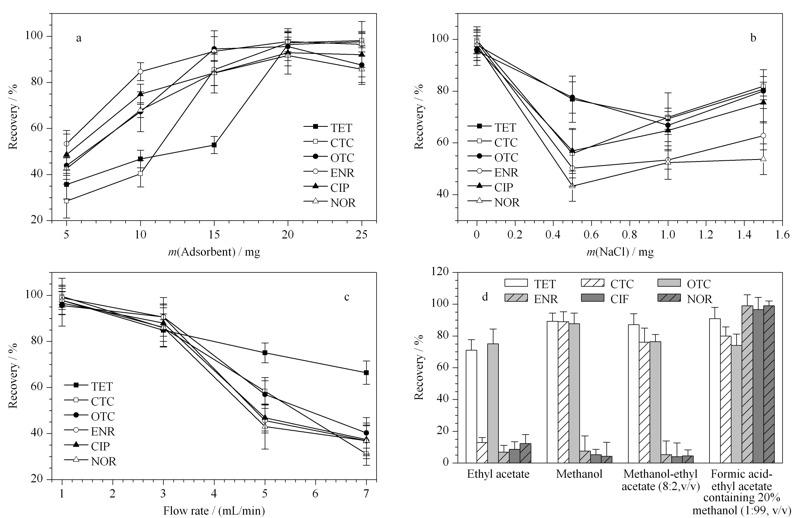

四环素和氟喹诺酮类是水产养殖中常用的抗菌药物,其残留可能对人类健康构成风险。水产品中药物残留浓度低且含有脂肪和蛋白质等复杂基质,因此迫切需要开发高效的样品预处理方法。固相萃取(SPE)是最常用的样品预处理方法,其核心是吸附剂。与传统的SPE吸附剂相比,纳米纤维毡(NFsM)因其较大的比表面积而具有更多的相互作用位点。此外,用特定官能团修饰的NFsM可以显著提高四环素和氟喹诺酮类的萃取效率。聚多巴胺(PDA)是由盐酸多巴胺在碱性溶液(pH>7.5)中氧化自聚合自发合成的。由于其富含氨基和邻苯二酚基团,PDA可以与目标分子形成堆积、静电吸引、疏水相互作用和氢键相互作用。利用上述优势,以聚苯乙烯(PS)NFsM为模板,通过静电纺丝法制备了PDA-PS NFsM,并通过PDA的自聚合功能修饰得到了PDA-PS NFsM。采用傅里叶变换红外光谱(FT-IR)和场发射扫描电子显微镜(FESEM)对合成的PS NFsM和PDA-PS NFsM进行了表征。结果表明,PDA成功修饰在PS NFsM上,扫描电镜图像显示其具有粗糙的外核壳结构和内部蜂窝结构。随后,完成了装有PDA-PS NFsM的手工SPE柱。建立了一种基于PDA-PS NFsM的高效液相色谱-串联质谱(UPLC-MS/MS)同时测定鱼类中三种四环素(四环素(TET),金霉素(CTC)和土霉素(OTC))和三种氟喹诺酮类(恩诺沙星(ENR)、环丙沙星(CIP)和诺氟沙星(NOR))的新型高效筛选分析方法。对SPE程序进行了优化,以开发一种高效的样品制备方法。研究了包括NFsM用量、离子强度、样品溶液流速、洗脱液组成和穿透体积等评估参数。仅(20±0.1)mg的PDA-PS NFsM就足以完全吸附目标物,保留在NFsM上的分析物可用1 mL甲酸-乙酸乙酯(含20%甲醇)(1∶99,v/v)洗脱。残留物重新溶解于0.1 mL含0.2%甲酸的10%甲醇水溶液中。此外,无需调节样品溶液的pH值和离子强度,穿透体积为50 mL。六种目标化合物的检测限(LOD)和定量限(LOQ)分别在信噪比()的3倍和10倍处测定。LOD和LOQ分别为0.3-1.5 μg/kg和1.0-5.0 μg/kg。六种目标化合物的线性范围为LOQ-1000 μg/kg,测定系数()大于0.999。为评估准确性和精密度,制备了三个加标水平(低、中、高)的空白加标样品进行回收率实验,每个水平有六个平行样品(=6)。回收率范围为94.37%至102.82%,日内和日间相对标准偏差分别为2.38%至8.06%和4.10%至9.10%。为评估PDA-PS NFsM的净化能力,计算并比较了SPE前后的基质效应。SPE前的基质效应为-12.98%至-38.68%。基于PDA-PS NFsM完成SPE后,各目标分析物的基质效应显著降低至-2.15%至-7.36%,这证明了PDA-PS NFsM具有显著的基质去除能力。最后,通过分析实际样品评估了该方法的实用性。这种基于PDA-PS NFsM的SPE方法高效、实用且环保,在鱼类药物残留的常规监测中具有很大的应用潜力。
