Dose distribution effects of spot-scanning proton beam therapy equipped with a multi-leaf collimator for pediatric brain tumors.

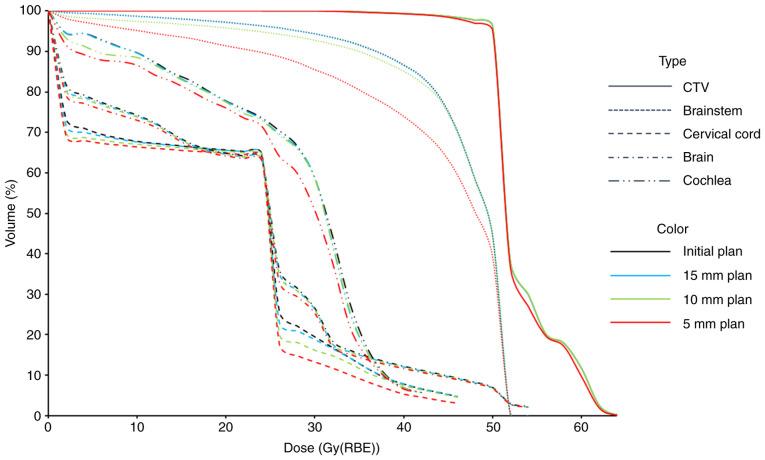

The present study simulated the effect of spot-scanning proton beam therapy (PBT) performed using a device equipped with a multi-leaf collimator (MLC) to calculate the dose distribution. Simulation studies using 18 pediatric patients with brain tumors in the posterior fossa were performed. Treatment plans were created for the MLC at different stages: Fully open (initial plan), fully closed to allow an irradiated area extending to 15 mm from the clinical target volume (CTV) (15-mm plan), or closing only the leaves where an organ at risk (OAR) overlapped with a border at 10 or 5 mm from the CTV (10- and 5-mm plans, respectively). The mean dose values for the brainstem, cervical cord, brain and cochlea in all MLC closure plans decreased as the MLC was closed (P=9.9×10, P=1.3×10, P=2.1×10 and P=2.0×10, respectively). The maximum dose (D) values of the cervical cord and cochlea in all MLC closure plans were also decreased as the MLC was closed (P=3.0×10 and P=1.1×10, respectively). The dose to the CTV was almost unchanged. In 10 patients, the D of the brain in all MLC-closure plans was higher than that of the initial plan, but the maximum increase was only 0.8 gray relative biological effectiveness [Gy(RBE)]. In conclusion, the existing MLC installed in the treatment device can be used to decrease the OAR dose significantly using spot-scanning PBT without a large capital investment. The dose from the scattered particles was small.
