Department of Chemical and Biomolecular Engineering, BK21 Plus program, KAIST, 291 Daehak-ro, Yuseong-gu, Daejeon, 34141, Republic of Korea.
Institute for The BioCentury, KAIST, 291 Daehak-ro, Yuseong-gu, Daejeon, 34141, Republic of Korea.
Microb Cell Fact. 2021 Jul 24;20(1):145. doi: 10.1186/s12934-021-01631-1.
trans-cinnamic acid (t-CA) is a phenylpropanoid with a broad spectrum of biological activities including antioxidant and antibacterial activities, and it also has high potential in food and cosmetic applications. Although significant progress has been made in the production of t-CA using microorganisms, its relatively low product titers still need to be improved. In this study, we engineered Corynebacterium glutamicum as a whole-cell catalyst for the bioconversion of L-phenylalanine (L-Phe) into t-CA and developed a repeated bioconversion process.

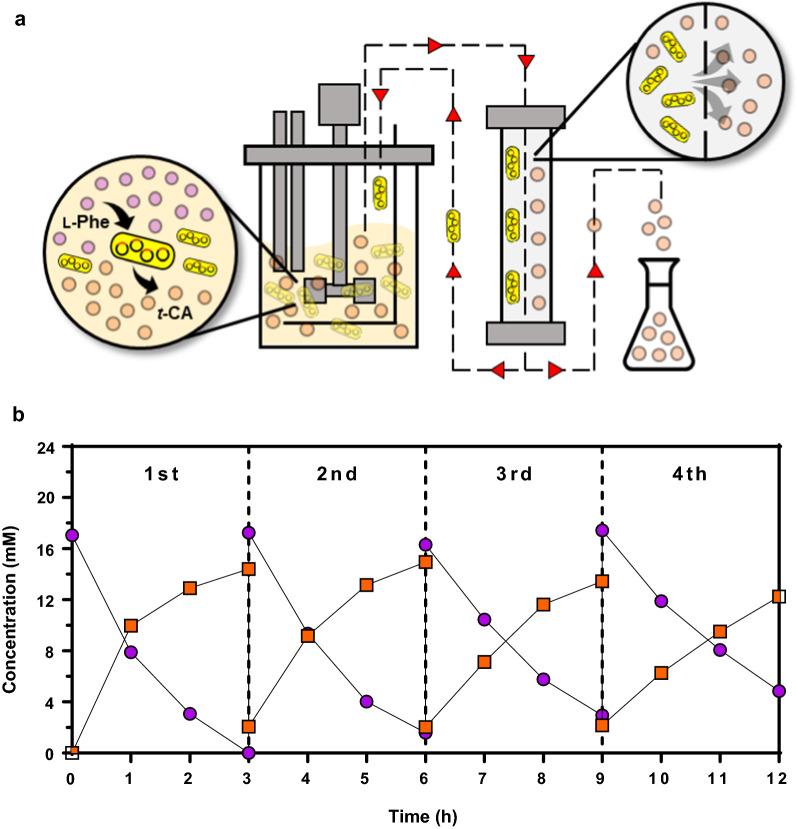

An expression module based on a phenylalanine ammonia lyase-encoding gene from Streptomyces maritimus (SmPAL), which mediates the conversion of L-Phe into t-CA, was constructed in C. glutamicum. Using the strong promoter P and ribosome binding site (RBS) (in front of gene 10 of the T7 phage), and a high-copy number plasmid, SmPAL could be expressed to levels as high as 39.1% of the total proteins in C. glutamicum. Next, to improve t-CA production at an industrial scale, reaction conditions including temperature and pH were optimized; t-CA production reached up to 6.7 mM/h in a bioreactor under optimal conditions (50 °C and pH 8.5, using NaOH as base solution). Finally, a recycling system was developed by coupling membrane filtration with the bioreactor, and the engineered C. glutamicum successfully produced 13.7 mM of t-CA (24.3 g) from 18.2 mM of L-Phe (36 g) and thus with a yield of 75% (0.75 mol/mol) through repetitive supplementation.
We developed a highly efficient bioconversion process using C. glutamicum as a biocatalyst and a micromembrane-based cell recycling system. To the best of our knowledge, this is the first report on t-CA production in C. glutamicum, and this robust platform will contribute to the development of an industrially relevant platform for the production of t-CA using microorganisms.
反式肉桂酸(t-CA)是一种具有广泛生物活性的苯丙烷类化合物,包括抗氧化和抗菌活性,在食品和化妆品应用方面也具有很高的潜力。尽管使用微生物生产 t-CA 已经取得了重大进展,但它的产品产率仍然相对较低,需要进一步提高。在本研究中,我们将谷氨酸棒杆菌工程化为全细胞催化剂,用于将 L-苯丙氨酸(L-Phe)生物转化为 t-CA,并开发了重复生物转化过程。
构建了一个基于海洋链霉菌(Streptomyces maritimus)苯丙氨酸氨裂解酶编码基因(SmPAL)的表达模块,该模块介导 L-Phe 转化为 t-CA。在谷氨酸棒杆菌中,使用强启动子 P 和核糖体结合位点(RBS)(在 T7 噬菌体基因 10 之前)以及高拷贝数质粒,SmPAL 的表达水平可高达谷氨酸棒杆菌总蛋白的 39.1%。接下来,为了在工业规模上提高 t-CA 的产量,优化了包括温度和 pH 值在内的反应条件;在最佳条件下(50°C 和 pH 8.5,使用 NaOH 作为碱溶液),在生物反应器中 t-CA 的产量达到了 6.7 mM/h。最后,通过膜过滤与生物反应器耦合开发了回收系统,工程化的谷氨酸棒杆菌成功地从 18.2 mM 的 L-Phe(36 g)生产了 13.7 mM 的 t-CA(24.3 g),产率为 75%(0.75 mol/mol),通过重复补料实现。
我们使用谷氨酸棒杆菌作为生物催化剂和基于微膜的细胞回收系统开发了一种高效的生物转化过程。据我们所知,这是首次在谷氨酸棒杆菌中报告 t-CA 的生产,这个强大的平台将有助于开发使用微生物生产 t-CA 的工业相关平台。
