Fujiwara Junya, Yokoyama Ai, Seike Musashi, Vogel Nicolas, Rey Marcel, Oyama Keigo, Hirai Tomoyasu, Nakamura Yoshinobu, Fujii Syuji
Division of Applied Chemistry, Graduate School of Engineering Osaka Institute of Technology, 5-16-1, Omiya, Asahi-ku Osaka 535-8585 Japan.
Department of Applied Chemistry, Faculty of Engineering Osaka Institute of Technology, 5-16-1 Omiya, Asahi-ku Osaka 535-8585 Japan
Mater Adv. 2021 Jun 11;2(14):4604-4609. doi: 10.1039/d1ma00398d. eCollection 2021 Jul 20.

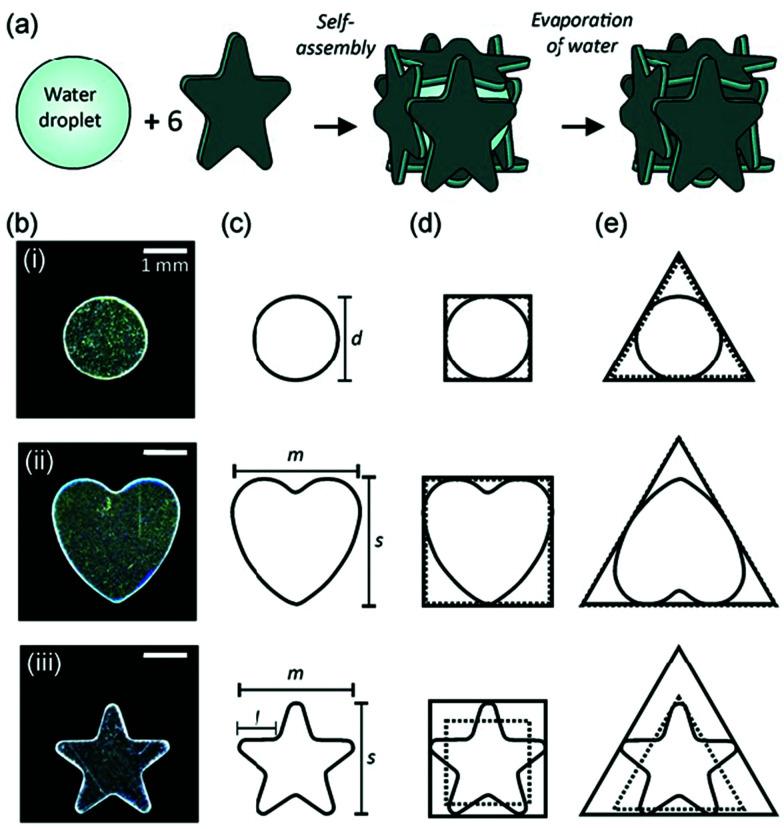

Polyhedral liquid marbles were fabricated using hydrophobic polymer plates in the shape of a circle, a heart and a star as a stabilizer and water as an inner liquid phase. Boxes could be fabricated by the evaporation of the inner water from the liquid marbles. The fabrication efficiency and stability of these boxes as a function of the plate shape were investigated. Functional materials such as polymers and colloidal particles were successfully introduced into the boxes.
使用圆形、心形和星形的疏水性聚合物板作为稳定剂，以水作为内部液相来制备多面体液体弹珠。通过液体弹珠内部水分的蒸发可以制造出盒子。研究了这些盒子的制造效率和稳定性与板形状之间的关系。聚合物和胶体颗粒等功能材料已成功引入盒子中。
