拉曼针关节镜术用于活体软骨的分子评估。
Raman needle arthroscopy for in vivo molecular assessment of cartilage.
机构信息
Department of Mechanical Engineering, Boston University, Boston, Massachusetts, USA.
Department of Biomedical Engineering, Boston University, Boston, Massachusetts, USA.
出版信息
J Orthop Res. 2022 Jun;40(6):1338-1348. doi: 10.1002/jor.25155. Epub 2021 Aug 18.

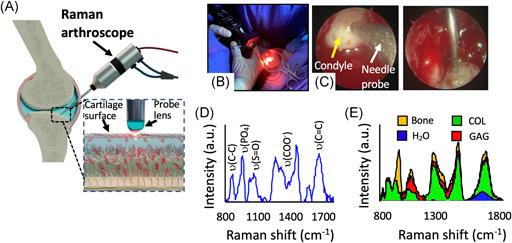

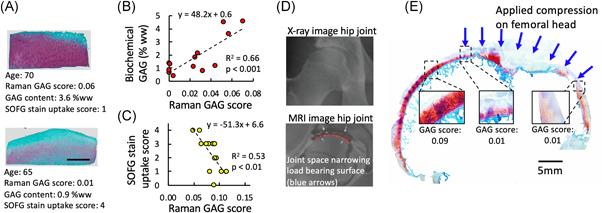

The development of treatments for osteoarthritis (OA) is burdened by the lack of standardized biomarkers of cartilage health that can be applied in clinical trials. We present a novel arthroscopic Raman probe that can "optically biopsy" cartilage and quantify key extracellular matrix (ECM) biomarkers for determining cartilage composition, structure, and material properties in health and disease. Technological and analytical innovations to optimize Raman analysis include (1) multivariate decomposition of cartilage Raman spectra into ECM-constituent-specific biomarkers (glycosaminoglycan [GAG], collagen [COL], water [H O] scores), and (2) multiplexed polarized Raman spectroscopy to quantify superficial zone (SZ) COL anisotropy via a partial least squares-discriminant analysis-derived Raman collagen alignment factor (RCAF). Raman measurements were performed on a series of ex vivo cartilage models: (1) chemically GAG-depleted bovine cartilage explants (n = 40), (2) mechanically abraded bovine cartilage explants (n = 30), (3) aging human cartilage explants (n = 14), and (4) anatomical-site-varied ovine osteochondral explants (n = 6). Derived Raman GAG score biomarkers predicted 95%, 66%, and 96% of the variation in GAG content of GAG-depleted bovine explants, human explants, and ovine explants, respectively (p < 0.001). RCAF values were significantly different for explants with abrasion-induced SZ COL loss (p < 0.001). The multivariate linear regression of Raman-derived ECM biomarkers (GAG and H O scores) predicted 94% of the variation in elastic modulus of ovine explants (p < 0.001). Finally, we demonstrated the first in vivo Raman arthroscopy assessment of an ovine femoral condyle through intraarticular entry into the synovial capsule. This study advances Raman arthroscopy toward a transformative low-cost, minimally invasive diagnostic platform for objective monitoring of treatment outcomes from emerging OA therapies.
治疗骨关节炎 (OA) 的发展受到缺乏标准化软骨健康生物标志物的阻碍,这些生物标志物可应用于临床试验。我们提出了一种新的关节镜拉曼探头,可对软骨进行“光学活检”,并定量关键细胞外基质 (ECM) 生物标志物,以确定健康和疾病状态下软骨的组成、结构和材料特性。为了优化拉曼分析,我们进行了技术和分析方面的创新,包括 (1) 将软骨拉曼光谱分解为 ECM 成分特异性生物标志物(糖胺聚糖 [GAG]、胶原蛋白 [COL]、水 [H2O] 分数),以及 (2) 采用偏最小二乘法判别分析衍生的拉曼胶原蛋白取向因子 (RCAF) 进行多通道偏振拉曼光谱分析,以定量浅层区 (SZ) COL 各向异性。对一系列离体软骨模型进行了拉曼测量:(1) 化学 GAG 耗竭的牛软骨标本 (n = 40),(2) 机械磨蚀的牛软骨标本 (n = 30),(3) 老化的人软骨标本 (n = 14),以及 (4) 解剖部位不同的绵羊骨软骨标本 (n = 6)。衍生的拉曼 GAG 分数生物标志物分别预测了 GAG 耗竭牛标本、人标本和绵羊标本中 GAG 含量变化的 95%、66%和 96% (p < 0.001)。具有磨蚀诱导的 SZ COL 损失的标本的 RCAF 值有显著差异 (p < 0.001)。基于拉曼衍生的 ECM 生物标志物 (GAG 和 H2O 分数) 的多元线性回归预测了绵羊标本弹性模量变化的 94% (p < 0.001)。最后,我们通过关节内进入滑膜囊,首次在体内进行了绵羊股骨髁的拉曼关节镜评估。这项研究推进了拉曼关节镜技术向一种变革性的低成本、微创诊断平台的发展,用于客观监测新兴 OA 疗法的治疗效果。
