Karlas Angelos, Kallmayer Michael, Bariotakis Michael, Fasoula Nikolina-Alexia, Liapis Evangelos, Hyafil Fabien, Pelisek Jaroslav, Wildgruber Moritz, Eckstein Hans-Henning, Ntziachristos Vasilis
Chair of Biological Imaging, Central Institute for Translational Cancer Research (TranslaTUM), Technical University of Munich, Munich, Germany.
Helmholtz Zentrum München, Institute of Biological and Medical Imaging, Neuherberg, Germany.
Photoacoustics. 2021 Jul 9;23:100283. doi: 10.1016/j.pacs.2021.100283. eCollection 2021 Sep.

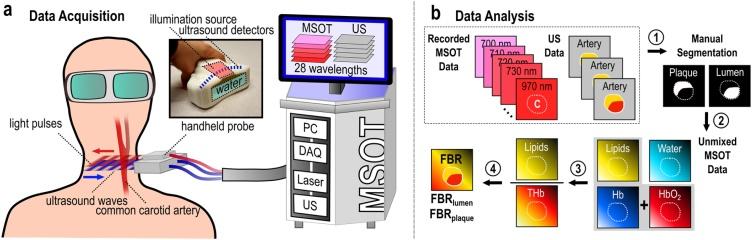

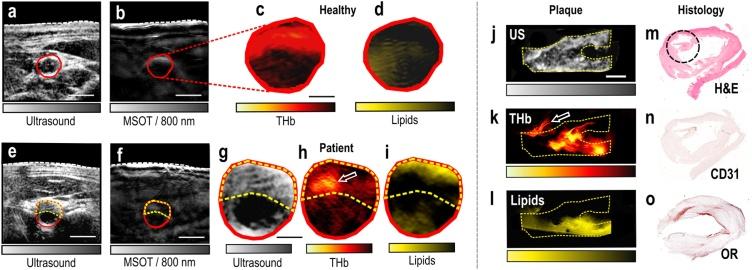

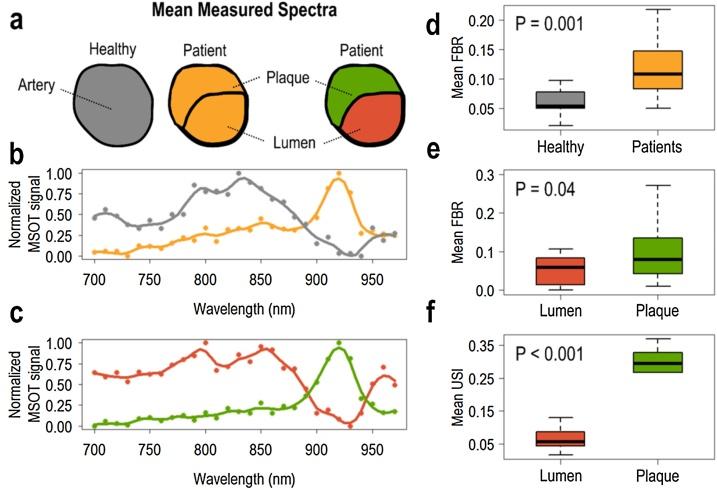

Several imaging techniques aim at identifying features of carotid plaque instability but come with limitations, such as the use of contrast agents, long examination times and poor portability. Multispectral optoacoustic tomography (MSOT) employs light and sound to resolve lipid and hemoglobin content, both features associated with plaque instability, in a label-free, fast and highly portable way. Herein, 5 patients with carotid atherosclerosis, 5 healthy volunteers and 2 excised plaques, were scanned with handheld MSOT. Spectral unmixing allowed visualization of lipid and hemoglobin content within three ROIs: whole arterial cross-section, plaque and arterial lumen. Calculation of the fat-blood-ratio (FBR) value within the ROIs enabled the differentiation between patients and healthy volunteers (P = 0.001) and between plaque and lumen in patients (P = 0.04). Our results introduce MSOT as a tool for molecular imaging of human carotid atherosclerosis and open new possibilities for research and clinical assessment of carotid plaques.
