Engineering Research Center of Technical Textiles, Ministry of Education, College of Textiles, Donghua University, Shanghai, 201620, China.
Key Laboratory of Eco-Textiles (Ministry of Education), Nonwoven Technology Laboratory, Jiangnan University, Wuxi, 214122, China.
Adv Sci (Weinh). 2021 Oct;8(19):e2101727. doi: 10.1002/advs.202101727. Epub 2021 Aug 11.

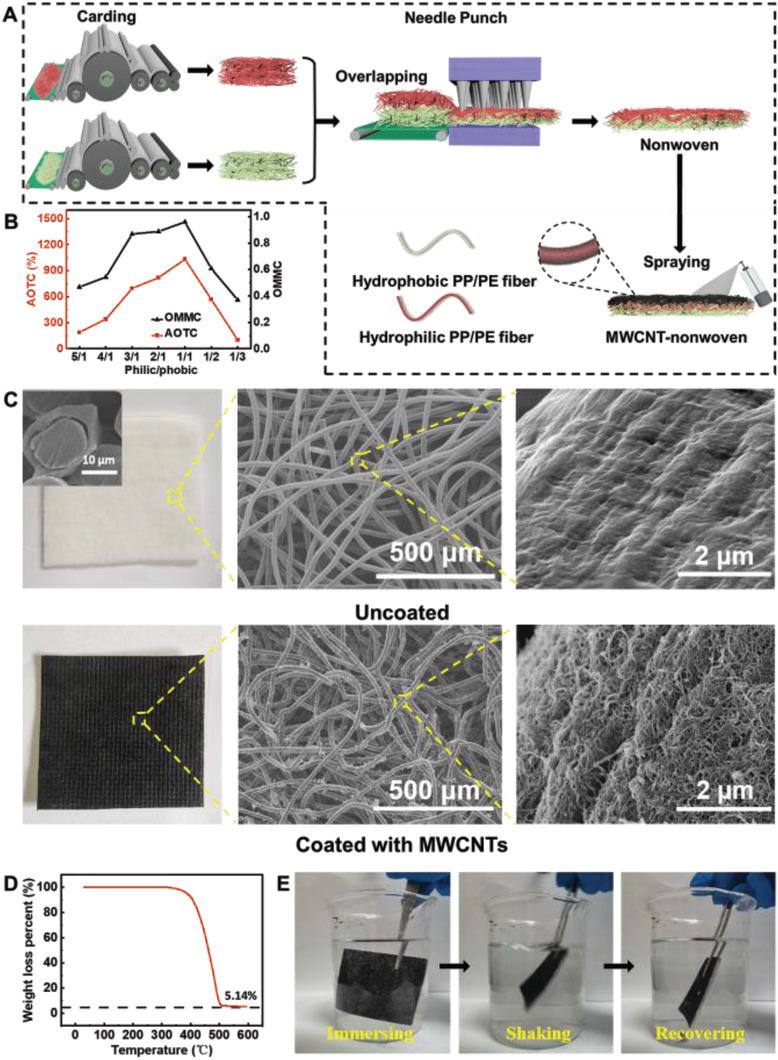

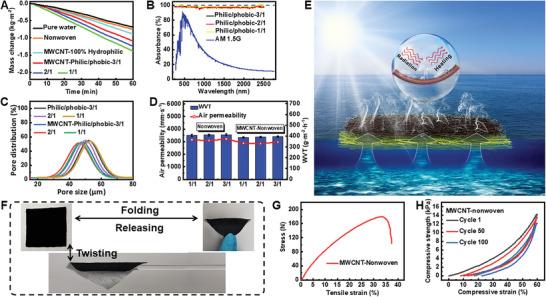

Solar vapor generation technology is promising in seawater desalination, sewage purification, and other fields. However, wide application of this technology is still largely confined due to its high cost and difficulties for scalable production. In this study, an ever-floating solar evaporator is fabricated by coating multiwall carbon nanotubes on a bicomponent nonwoven composed of polypropylene/polyethylene core-sheath fibers. This all-fiber structure is highly porous and ultralight, with large specific area (for efficient water evaporation), interconnected channels (for easy vapor escape), and low thermal conductivity (to avoid heat loss). The unique unidirectional water-transfer behavior of the nonwoven enables it to spontaneously pump an adjustable amount of water for interfacial solar heating and a delicate balance between water supply and loss may accelerate the evaporation speed of water. These distinct benefits endow the solar evaporator with excellent evaporation rates of 1.44 kg m h under the simulated irradiation of 1 sun and 12.81 kg m d under natural sunlight. Moreover, the evaporator can be fabricated by using low-cost materials and industrialized methods (overall cost ≈2.4 USD m ), making one believe its practical significance for commercial solar steam evaporation.
太阳能蒸汽发生技术在海水淡化、污水净化等领域具有广阔的应用前景。然而,由于其成本高和规模化生产困难,该技术的广泛应用仍受到很大限制。在本研究中,通过在由聚丙烯/聚乙烯芯鞘纤维组成的双组分无纺物上涂覆多壁碳纳米管,制备了一种始终漂浮的太阳能蒸发器。这种全纤维结构具有高多孔性、超轻、大比表面积(用于高效水蒸发)、相互连通的通道(用于水蒸气容易逸出)和低热导率(以避免热量损失)。无纺物独特的单向水传递行为使其能够自动泵送可调节量的水进行界面太阳能加热,并且供水和损失之间的精细平衡可能会加速水的蒸发速度。这些独特的优势使太阳能蒸发器在模拟 1 个太阳辐照下的蒸发速率达到 1.44 kg·m 小时,在自然光下的蒸发速率达到 12.81 kg·m 天。此外,该蒸发器可以使用低成本材料和工业化方法制造(总制造成本约为 2.4 美元·米),这使其在商业太阳能蒸汽蒸发方面具有实际意义。
