Ghent University - Imec, Department of Information Technology, Ghent, Belgium.
Swiss Tropical and Public Health Institute, CH-4002 Basel, Switzerland.
PLoS Comput Biol. 2021 Oct 28;17(10):e1009460. doi: 10.1371/journal.pcbi.1009460. eCollection 2021 Oct.

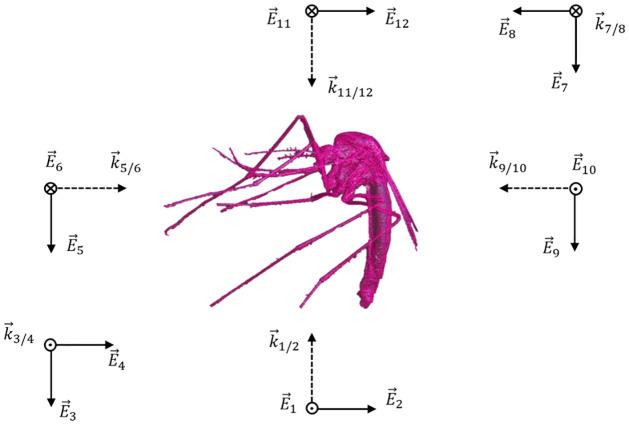

Fifth generation networks (5G) will be associated with a partial shift to higher carrier frequencies, including wavelengths comparable in size to insects. This may lead to higher absorption of radio frequency (RF) electromagnetic fields (EMF) by insects and could cause dielectric heating. The yellow fever mosquito (Aedes aegypti), a vector for diseases such as yellow and dengue fever, favors warm climates. Being exposed to higher frequency RF EMFs causing possible dielectric heating, could have an influence on behavior, physiology and morphology, and could be a possible factor for introduction of the species in regions where the yellow fever mosquito normally does not appear. In this study, the influence of far field RF exposure on A. aegypti was examined between 2 and 240 GHz. Using Finite Difference Time Domain (FDTD) simulations, the distribution of the electric field in and around the insect and the absorbed RF power were found for six different mosquito models (three male, three female). The 3D models were created from micro-CT scans of real mosquitoes. The dielectric properties used in the simulation were measured from a mixture of homogenized A. aegypti. For a given incident RF power, the absorption increases with increasing frequency between 2 and 90 GHz with a maximum between 90 and 240 GHz. The absorption was maximal in the region where the wavelength matches the size of the mosquito. For a same incident field strength, the power absorption by the mosquito is 16 times higher at 60 GHz than at 6 GHz. The higher absorption of RF power by future technologies can result in dielectric heating and potentially influence the biology of this mosquito.
第五代网络(5G)将与向更高载波频率的部分转移相关联,包括与昆虫大小相当的波长。这可能导致昆虫对射频(RF)电磁场(EMF)的更高吸收,并可能导致介电加热。黄热病蚊子(埃及伊蚊)是黄热病和登革热等疾病的传播媒介,喜欢温暖的气候。暴露于可能导致介电加热的更高频率 RF EMF 可能会对行为、生理和形态产生影响,并可能成为该物种在黄热病蚊子通常不存在的地区引入的一个可能因素。在这项研究中,研究了远场 RF 暴露对 A. aegypti 的影响,频率范围在 2 到 240 GHz 之间。使用时域有限差分(FDTD)模拟,找到了昆虫内部和周围的电场分布以及吸收的 RF 功率,对于六个不同的蚊子模型(三个雄性,三个雌性)。3D 模型是从真实蚊子的微 CT 扫描创建的。模拟中使用的介电特性是从均匀混合的 A. aegypti 中测量的。对于给定的入射 RF 功率,在 2 到 90 GHz 之间,吸收随频率的增加而增加,在 90 到 240 GHz 之间达到最大值。吸收在与蚊子大小匹配的波长区域最大。对于相同的入射场强,60 GHz 时蚊子吸收的功率比 6 GHz 时高 16 倍。未来技术对 RF 功率的更高吸收可能导致介电加热,并可能影响这种蚊子的生物学特性。
