Physical and Electrochemical Properties of Soluble 3,4-Ethylenedioxythiophene (EDOT)-Based Copolymers Synthesized Direct (Hetero)Arylation Polymerization.

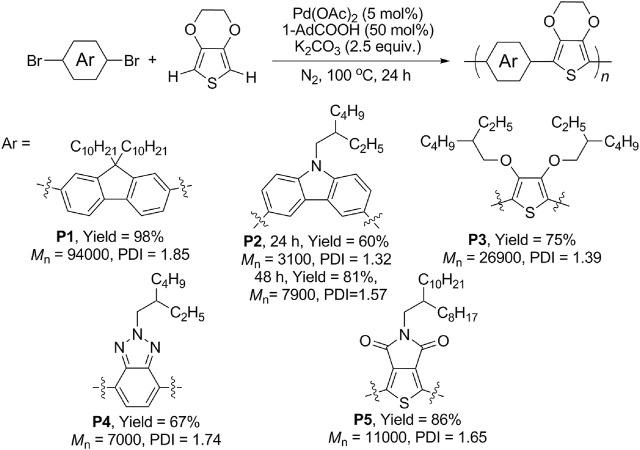

Over the past decades, π-conjugated polymers (CPs) have drawn more and more attention and been essential materials for applications in various organic electronic devices. Thereinto, conjugated polymers based on the 3,4-ethylenedioxythiophene (EDOT) backbone are among the high-performance materials. In order to investigate the structure-property relationships of EDOT-based polymers and further improve their electrochemical properties, a series of organic solvent-soluble EDOT-based alternative copolymers consisting of electron-rich fragments (fluorene , carbazole , and 3,4-alkoxythiophene ) or electron-deficient moieties (benzotriazole and thieno[3,4-]pyrrole-4,6-dione ) were synthesized direct C-H (hetero)arylation polymerization (DHAP) in moderate to excellent yields (60-98%) with medium to high molecular weights ( = 3,100-94,000 Da). Owing to their various electronic and structural properties, different absorption spectra ( = 476, 380, 558, 563, and 603 nm) as well as different specific capacitances of 70, 68, 75, 51, and 25 F/g with 19, 10, 21, 26, and 69% of capacity retention after 1,000 cycles were observed for , respectively. After careful study through multiple experimental measurements and theoretical calculation, appropriate electronic characteristics, small molecular conformation differences between different oxidative states, and well-ordered molecular stacking could improve the electrochemical performance of CPs.
