Department of Biological Science, Florida State University, Tallahassee, FL.
San Diego Biomedical Research Institute, La Jolla, CA.
J Cell Biol. 2021 Dec 6;220(12). doi: 10.1083/jcb.202103078. Epub 2021 Nov 16.

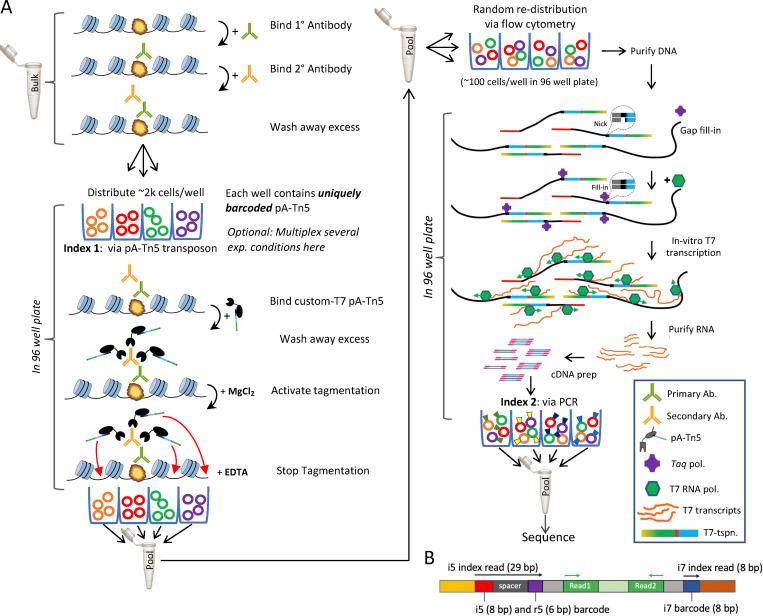

Chromatin profiling in single cells has been extremely challenging and almost exclusively limited to histone proteins. In cases where single-cell methods have shown promise, many require highly specialized equipment or cell type-specific protocols and are relatively low throughput. Here, we combine the advantages of tagmentation, linear amplification, and combinatorial indexing to produce a high-throughput single-cell DNA binding site mapping method that is simple, inexpensive, and capable of multiplexing several independent samples per experiment. Targeted insertion of promoters sequencing (TIP-seq) uses Tn5 fused to proteinA to insert a T7 RNA polymerase promoter adjacent to a chromatin protein of interest. Linear amplification of flanking DNA with T7 polymerase before sequencing library preparation provides ∼10-fold higher unique reads per single cell compared with other methods. We applied TIP-seq to map histone modifications, RNA polymerase II (RNAPII), and transcription factor CTCF binding sites in single human and mouse cells.
单细胞中的染色质谱分析极具挑战性,几乎仅限于组蛋白蛋白。在单细胞方法显示出前景的情况下,许多方法需要高度专业化的设备或特定于细胞类型的方案,并且相对通量较低。在这里,我们结合了标签酶切、线性扩增和组合索引的优势,产生了一种高通量的单细胞 DNA 结合位点映射方法,该方法简单、廉价,并能够在每个实验中对多个独立样本进行多重化。靶向插入启动子测序 (TIP-seq) 使用融合到 proteinA 的 Tn5 将 T7 RNA 聚合酶启动子插入到感兴趣的染色质蛋白的附近。在测序文库制备之前,用 T7 聚合酶对侧翼 DNA 进行线性扩增,与其他方法相比,每个单细胞的独特读取数增加了约 10 倍。我们应用 TIP-seq 来绘制人类和小鼠单细胞中的组蛋白修饰、RNA 聚合酶 II (RNAPII) 和转录因子 CTCF 结合位点。
