关于小型化蓝色微型发光二极管中载流子复合的机制

On the mechanism of carrier recombination in downsized blue micro-LEDs.

作者信息

Chen Po-Wei, Hsiao Po-Wen, Chen Hsuan-Jen, Lee Bo-Sheng, Chang Kai-Ping, Yen Chao-Chun, Horng Ray-Hua, Wuu Dong-Sing

机构信息

Department of Materials Science and Engineering & Innovation and Development Center of Sustainable Agriculture, National Chung Hsing University, Taichung, 40227, Taiwan.

Epileds Technologies, Incorporated, Tainan, 74148, Taiwan.

出版信息

Sci Rep. 2021 Nov 23;11(1):22788. doi: 10.1038/s41598-021-02293-0.

DOI:10.1038/s41598-021-02293-0
PMID:34815512
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC8611052/
Abstract

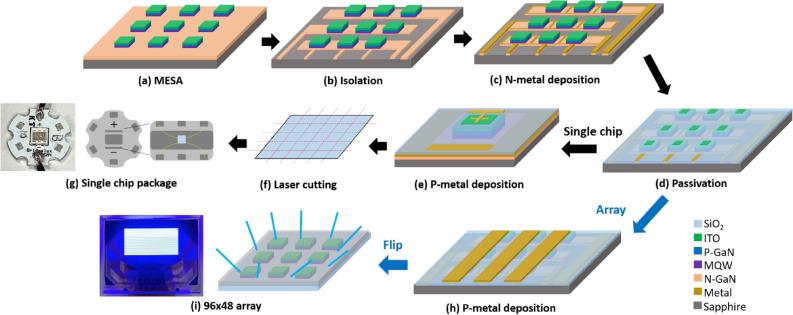

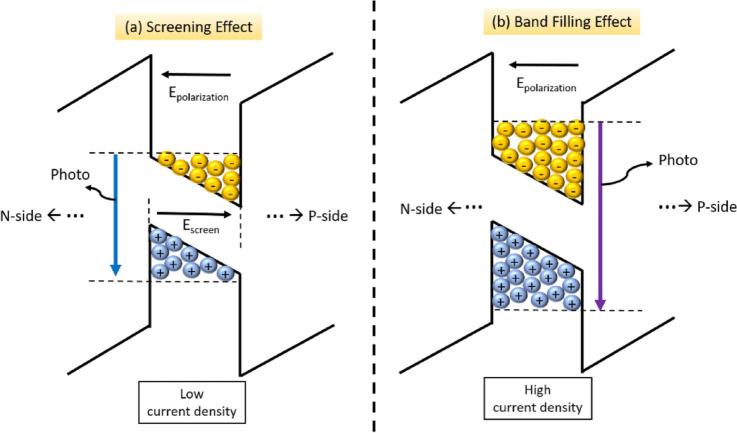

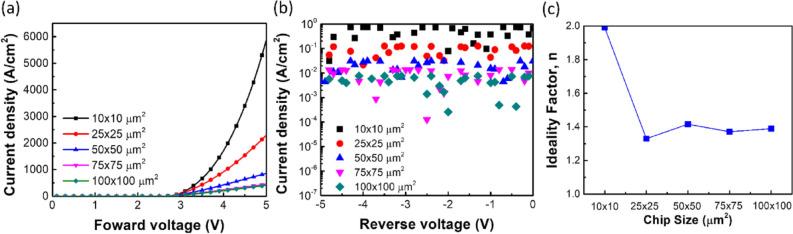

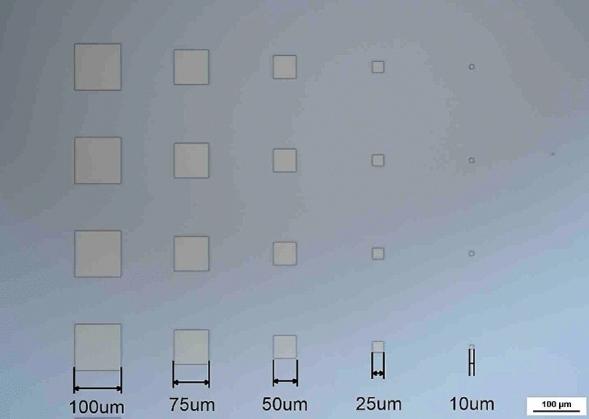

The mechanism of carrier recombination in downsized μ-LED chips from 100 × 100 to 10 × 10 μm on emission performance was systemically investigated. All photolithography processes for defining the μ-LED pattern were achieved by using a laser direct writing technique. This maskless technology achieved the glass-mask-free process, which not only can improve the exposure accuracy but also save the development time. The multi-functional SiO film as a passivation layer successfully reduced the leakage current density of μ-LED chips compared with the μ-LED chips without passivation layer. As decreasing the chip size to 10 × 10 μm, the smallest chip size exhibited the highest ideality factor, which indicated the main carrier recombination at the high-defect-density zone in μ-LED chip leading to the decreased emission performance. The blue-shift phenomenon in the electroluminescence spectrum with decreasing the μ-LED chip size was due to the carrier screening effect and the band filling effect. The 10 × 10 μm μ-LED chip exhibited high EQE values in the high current density region with a less efficiency droop, and the max-EQE value was 18.8%. The luminance of 96 × 48 μ-LED array with the chip size of 20 × 20 μm exhibited a high value of 516 nits at the voltage of 3 V.

摘要

系统研究了尺寸从100×100μm缩小到10×10μm的μ-LED芯片中载流子复合对发光性能的影响机制。用于定义μ-LED图案的所有光刻工艺均通过激光直写技术实现。这种无掩膜技术实现了无玻璃掩膜工艺,不仅可以提高曝光精度,还能节省显影时间。与没有钝化层的μ-LED芯片相比,作为钝化层的多功能SiO膜成功降低了μ-LED芯片的漏电流密度。随着芯片尺寸减小到10×10μm,最小尺寸的芯片表现出最高的理想因子,这表明μ-LED芯片中高缺陷密度区域的主要载流子复合导致发光性能下降。随着μ-LED芯片尺寸减小,电致发光光谱中的蓝移现象是由于载流子屏蔽效应和能带填充效应。10×10μm的μ-LED芯片在高电流密度区域表现出较高的外量子效率(EQE)值,效率 droop 较小,最大EQE值为18.8%。芯片尺寸为20×20μm的96×48μ-LED阵列在3V电压下的亮度表现出516 nits的高值。
