三维计算机断层扫描支气管造影和血管造影辅助胸腔镜肺段切除术和肺叶切除术治疗原发性肺癌

Thoracoscopic segmentectomy and lobectomy assisted by three-dimensional computed-tomography bronchography and angiography for the treatment of primary lung cancer.

作者信息

Wu Yun-Jiang, Shi Qing-Tong, Zhang Yong, Wang Ya-Li

机构信息

Department of Thoracic Surgery, The Affiliated Hospital of Yangzhou University, Yangzhou University, Yangzhou 225009, Jiangsu Province, China.

Department of Radiology, The Affiliated Hospital of Yangzhou University, Yangzhou University, Yangzhou 225009, Jiangsu Province, China.

出版信息

World J Clin Cases. 2021 Dec 6;9(34):10494-10506. doi: 10.12998/wjcc.v9.i34.10494.

Abstract

BACKGROUND

Anatomical segmentectomy has been proposed as a substitution for lobectomy for early-stage lung cancer. However, it requires technical meticulousness due to the complex anatomical variations of segmental vessels and bronchi.

AIM

To assess the safety and feasibility of three-dimensional computed-tomography bronchography and angiography (3D-CTBA) in performing video-assisted thoracoscopic surgery (VATS) for lung cancers.

METHODS

In this study, we enrolled 123 patients who consented to undergo thoracoscopic segmentectomy and lobectomy assisted by 3D-CTBA between May 2017 and June 2019. The image data of enhanced computed tomography (CT) scans was reconstructed three-dimensionally by the Mimics software. The results of preoperative 3D-CTBA, in combination with intraoperative navigation, guided the surgery.

RESULTS

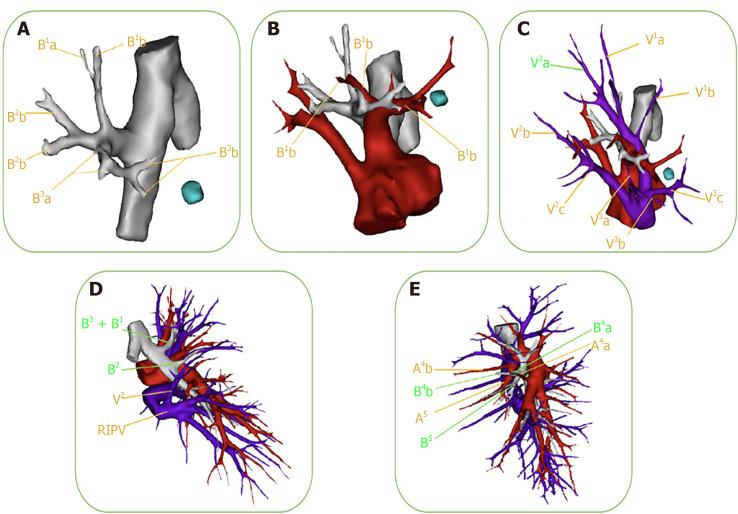

A total of 59 women and 64 men were enrolled, of whom 57 (46.3%) underwent segmentectomy and 66 (53.7%) underwent lobectomy. The majority of tumor appearance on CT was part-solid ground-glass nodule (pGGN; 55.3%). The mean duration of chest tube placement was 3.5 ± 1.6 d, and the average length of postoperative hospital stay was 6.8 ± 1.8 d. Surgical complications included one case of pneumonia and four cases of prolonged air leak lasting > 5 d. Notably, there was no intraoperative massive hemorrhage, postoperative intensive-care unit stay, or 30-d mortality. Preoperative 3D-CTBA images can display clearly and vividly the targeted structure and the variations of vessels and bronchi. To reduce the risk of locoregional recurrence, the application of 3D-CTBA with a virtual 3D surgical margin help the VATS surgeon determine accurate distances and positional relations among the tumor, bronchial trees, and the intersegmental vessels. Three-dimensional navigation was performed to confirm the segmental structure, precisely cut off the targeted segment, and avoid intersegmental veins injury.

CONCLUSION

VATS and 3D-CTBA worked in harmony in our study. This combination also provided a new pattern of transition from lesion-directed location of tumors to computer-aided surgery for the management of early lung cancer.

摘要

背景

解剖性肺段切除术已被提议作为早期肺癌肺叶切除术的替代术式。然而,由于肺段血管和支气管复杂的解剖变异,该手术需要精湛的技术。

目的

评估三维计算机断层扫描支气管造影和血管造影(3D-CTBA)在肺癌电视辅助胸腔镜手术(VATS)中的安全性和可行性。

方法

本研究纳入了2017年5月至2019年6月期间同意接受3D-CTBA辅助胸腔镜肺段切除术和肺叶切除术的123例患者。增强计算机断层扫描(CT)扫描的图像数据由Mimics软件进行三维重建。术前3D-CTBA的结果结合术中导航指导手术。

结果

共纳入59例女性和64例男性,其中57例(46.3%)接受了肺段切除术,66例(53.7%)接受了肺叶切除术。CT上大多数肿瘤表现为部分实性磨玻璃结节(pGGN;55.3%)。胸腔闭式引流管放置的平均时间为3.5±1.6天,术后平均住院时间为6.8±1.8天。手术并发症包括1例肺炎和4例持续>5天的持续性漏气。值得注意的是,没有术中大出血、术后入住重症监护病房或30天死亡率。术前3D-CTBA图像能够清晰、生动地显示目标结构以及血管和支气管的变异。为降低局部复发风险,应用带有虚拟三维手术切缘的3D-CTBA有助于VATS外科医生确定肿瘤、支气管树和肺段间血管之间的准确距离和位置关系。进行三维导航以确认肺段结构,精确切除目标肺段,并避免肺段间静脉损伤。

结论

在我们的研究中,VATS和3D-CTBA协同发挥作用。这种联合也为早期肺癌的治疗提供了一种从肿瘤病灶定位到计算机辅助手术的新模式。
