评估 5G 网络中移动电话天线对人体的暴露水平。
Assessment of Human Exposure Levels Due to Mobile Phone Antennas in 5G Networks.
机构信息
Institute of Electronics, Computer and Telecommunication Engineering (IEIIT), National Research Council, 20133 Milano, Italy.
Department of Electronics, Information and Bioengineering (DEIB), Politecnico di Milano, 20133 Milano, Italy.
出版信息
Int J Environ Res Public Health. 2022 Jan 29;19(3):1546. doi: 10.3390/ijerph19031546.

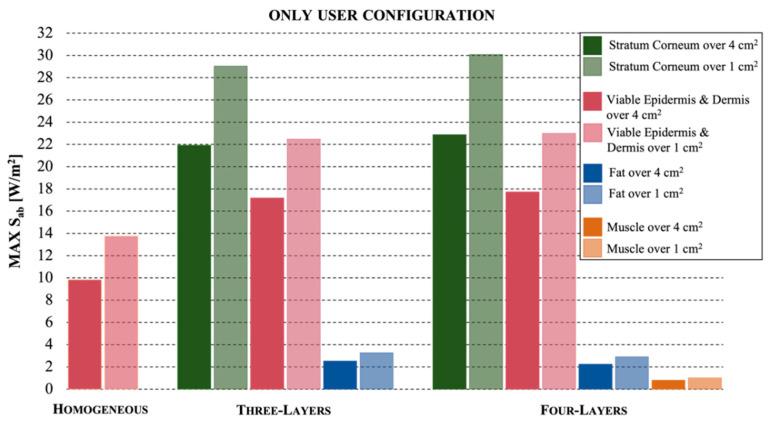

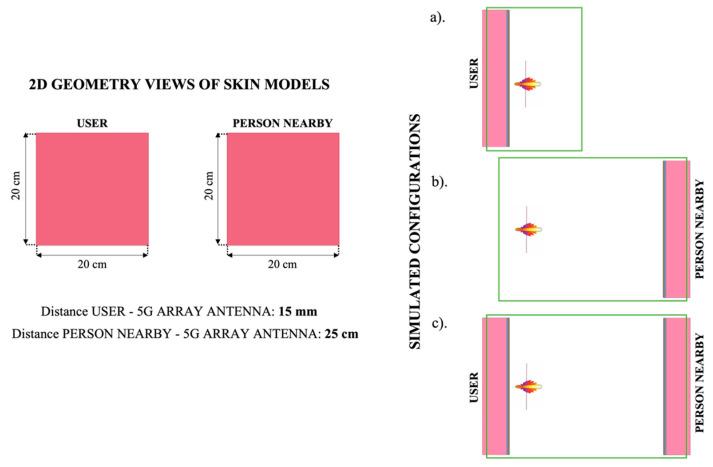

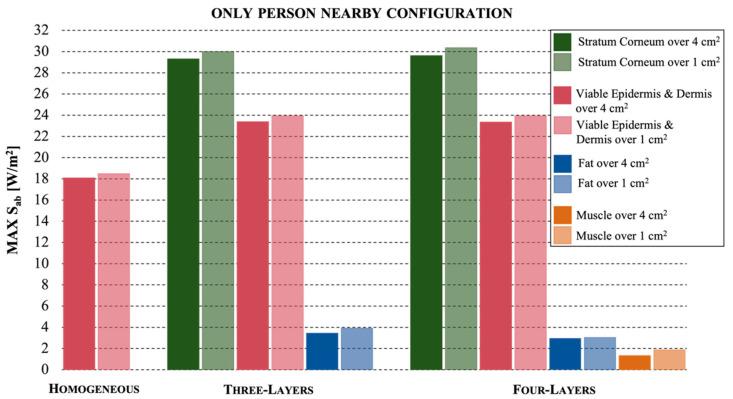

The recent deployment of 5G networks is bringing benefits to the population but it is also raising public concern about human RF-EMF exposure levels. This is particularly relevant considering the next 5G mobile devices, which are placed in close proximity to the subjects. Therefore, the aim of the following paper is focused on expanding the knowledge of the exposure levels in 5G exposure scenarios, specifically for mobile applications, using computational methods. The mobile antenna was designed considering the 5G technology innovations (i.e., mm-wave spectrum, beamforming capability, high gain and wide coverage), resulting in a phased-array antenna with eight elements at the working frequency of 27 GHz. To assess the exposure levels, different types of skin models with different grades of details and layers were considered. Furthermore, not only was the presence of a mobile phone user simulated, but also that of a person in their proximity, who could be hit by the main beam of the phased-array antenna. All the simulations were conducted in Sim4Life platform, where the exposure levels were assessed in terms of absorbed power density averaged over 4 cm and 1 cm, following the ICNIRP guidelines. The results highlighted that the use of the homogeneous skin model led to the absorbed power density peaks being greatly underestimated, with respect to those obtained in multilayer skin models. Furthermore, interestingly, we found that the exposure levels obtained for the person passing nearby were slightly higher than those experienced by the mobile phone user himself. Finally, using the allowed input power for real mobile applications, all the values remained below the limits indicated by the ICNIRP guidelines.
最近 5G 网络的部署给人们带来了好处,但也引起了公众对人体射频电磁场暴露水平的担忧。考虑到即将推出的近体 5G 移动设备,这些设备将放置在与人体非常接近的位置,这一点尤其重要。因此,本文的目的是使用计算方法扩展对 5G 暴露场景中暴露水平的了解,特别是针对移动应用。移动天线的设计考虑了 5G 技术的创新(即毫米波频谱、波束赋形能力、高增益和广覆盖),从而在 27GHz 的工作频率下形成了一个具有八个单元的相控阵天线。为了评估暴露水平,考虑了不同类型的皮肤模型,这些模型具有不同的详细程度和层。此外,不仅模拟了移动电话用户的存在,还模拟了附近的人的存在,此人可能会被相控阵天线的主波束击中。所有的模拟都是在 Sim4Life 平台上进行的,根据 ICNIRP 指南,以平均 4cm 和 1cm 上的吸收功率密度来评估暴露水平。结果表明,与多层皮肤模型相比,使用均匀皮肤模型会大大低估吸收功率密度峰值。此外,有趣的是,我们发现,经过附近的人的暴露水平略高于移动电话用户本人的暴露水平。最后,使用真实移动应用允许的输入功率,所有值都低于 ICNIRP 指南所指示的限值。
