Zhang Yunsheng, Chen Zixin, Zheng Hao, Chen Runze, Ma Chunfeng, Zhang Guangzhao
Faculty of Materials Science and Engineering, South China University of Technology, Guangzhou, 510640, P. R. China.
Adv Sci (Weinh). 2022 May;9(14):e2200268. doi: 10.1002/advs.202200268. Epub 2022 Mar 10.

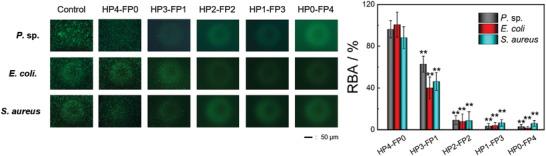

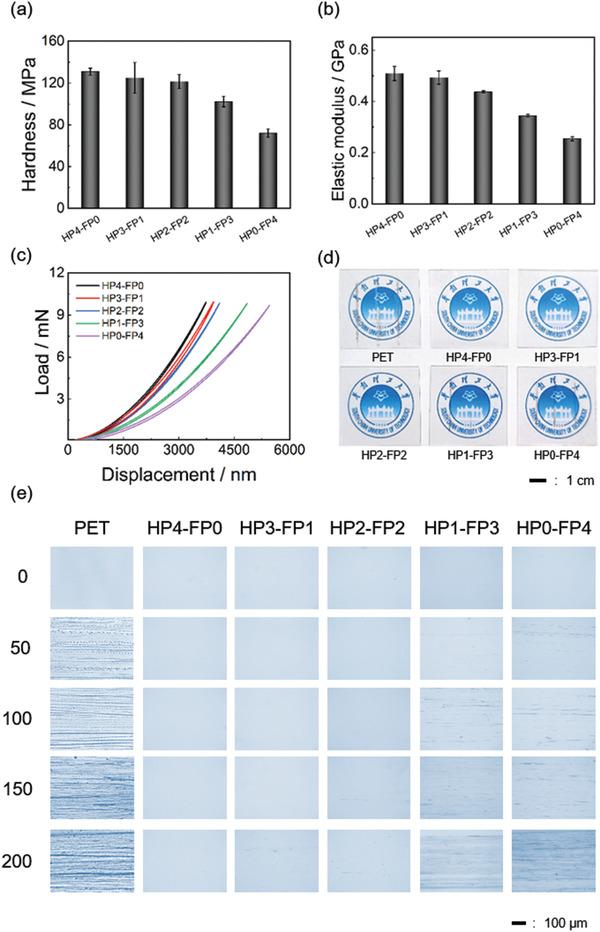

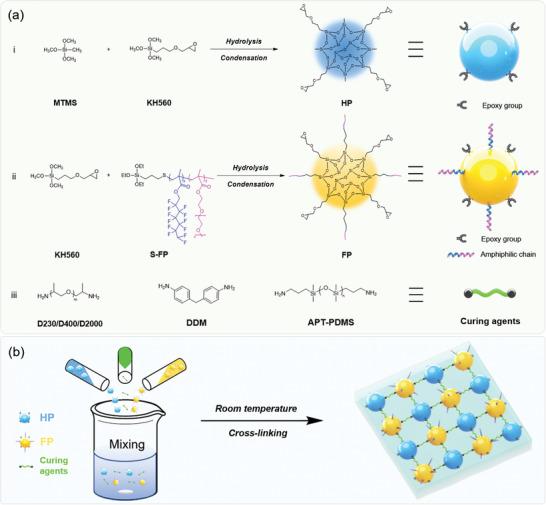

Hard yet flexible coatings with multi-functionalities are useful for foldable displays and marine industries but rare. In this study, a highly cross-linked multifunctional hybrid coating with ceramic-like hardness and polymer-like flexibility is reported. The coating is prepared via a step-by-step strategy, where two types of epoxy-oligosiloxane nanoclusters are first synthesized by sol-gel chemistry, and amine-terminated curing agents are used to cross-link them at room temperature. The coating is highly transparent (>92% transmittance), hard (6-7H), and flexible (10 mm bending diameter) because of the unique combination of siloxane nanoclusters and polymer networks. Meanwhile, since the coating contains fouling-resistant telomer and low-surface-tension liquid lubricant polydimethylsiloxane (PDMS), it exhibits excellent anti-biofouling and self-cleaning properties. The results indicate that the mechanical and antifouling properties of the coating can be easily tuned and prove that the step-by-step strategy is a promising and universal method. The novel coatings can meet the needs of applications in foldable displays, marine industries, and other fields.
具有多功能性的坚硬且柔韧的涂层在可折叠显示器和海洋工业中很有用,但却很罕见。在本研究中,报道了一种具有类陶瓷硬度和类聚合物柔韧性的高度交联多功能混合涂层。该涂层通过分步策略制备,首先通过溶胶-凝胶化学合成两种类型的环氧-低聚硅氧烷纳米团簇,并使用胺端基固化剂在室温下将它们交联。由于硅氧烷纳米团簇和聚合物网络的独特组合,该涂层具有高透明度(透光率>92%)、硬度高(6-7H)和柔韧性好(弯曲直径10毫米)。同时,由于该涂层含有防污端粒和低表面张力液体润滑剂聚二甲基硅氧烷(PDMS),它具有优异的抗生物污损和自清洁性能。结果表明,该涂层的机械性能和防污性能可以很容易地调节,并证明分步策略是一种有前景的通用方法。这种新型涂层可以满足可折叠显示器、海洋工业和其他领域的应用需求。
