Department of Materials Science and Engineering, KTH Royal Institute of Technology, SE-100 44 Stockholm, Sweden.
Colloids Surf B Biointerfaces. 2022 Jun;214:112465. doi: 10.1016/j.colsurfb.2022.112465. Epub 2022 Mar 23.

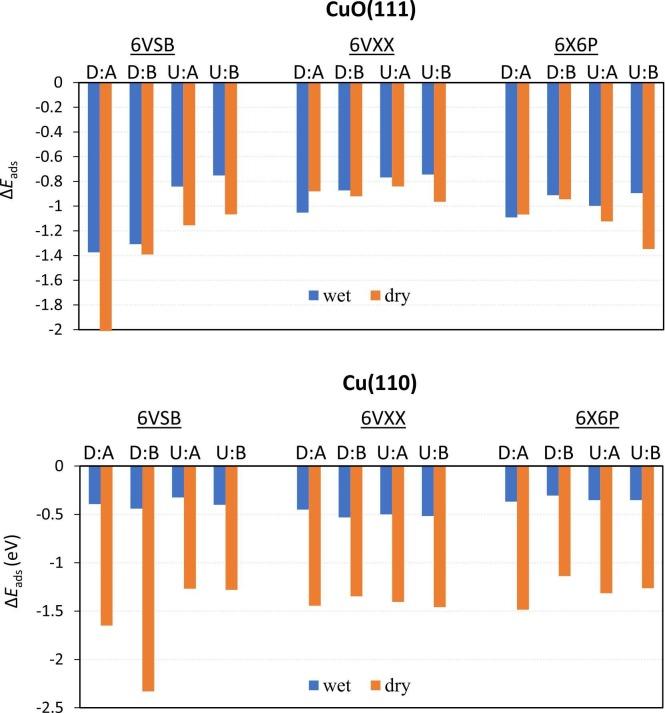

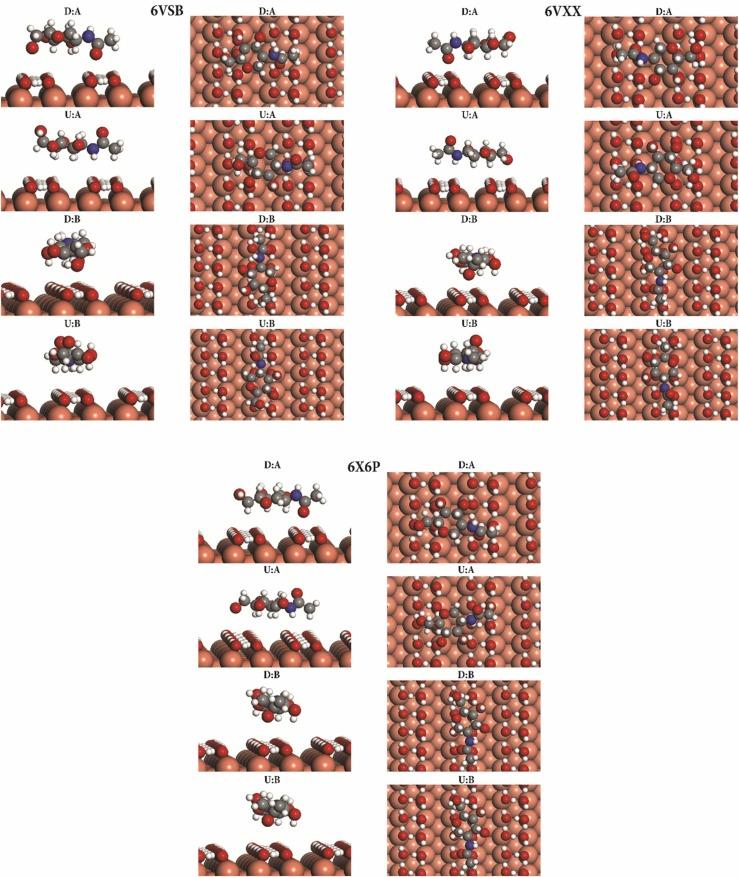

Despite their importance there is little knowledge at the atomic scale on the interactions between fragments of SARS-CoV-2 and inorganic materials. Such knowledge is important to understand the survival of the virus at surfaces and for the development of antiviral materials. Here is reported a study of the interactions between glucoside monomers of the tip of the S1 subunit of SARS-CoV-2 spike protein with dry and wet surfaces of CuO and Cu, performed with dispersion corrected density functional theory-DFT. The three glucoside monomers that constitute the tip of S1: 6VSB, 6VXX and 6X6P, were adsorbed onto dry and wet CuO(111) and Cu(110) with different orientations and surface alignments. There are large differences-of up to 1.3 eV-in binding energies between these monomers and the surfaces. These differences depend on: the type of surface; if the surface is wet or dry; if the glucosidic O-atom points towards or away from the surfaces; and to a smaller extent on the surface alignment of the monomers. All monomers bind strongly to the surfaces via molecular adsorption that does not involve bond breaking in the monomers at this stage. 6VSB has the larger adsorption energies-that reach 2.2 eV-due to its larger dipole moment. Both materials bind the monomers more strongly when their surfaces are dry. At Cu(110) the bonds are on average 1 eV stronger when the surface is dry when compared to wet. The difference between dry and wet CuO(111) is smaller, in the order of 0.2 eV. Overall, it is here shown that the stability of the monomers of the tip of the spike protein of the virus is very different at different surfaces. For a given surface the larger binding energies in dry conditions could explain the differences in the surface stability of the spike protein depending on the presence of moisture.
尽管它们很重要,但目前人们对 SARS-CoV-2 片段与无机材料之间的相互作用在原子尺度上知之甚少。这种知识对于了解病毒在表面的存活以及开发抗病毒材料非常重要。本文报道了使用色散校正密度泛函理论(DFT)研究 SARS-CoV-2 刺突蛋白 S1 亚基顶端糖苷单体与 CuO 和 Cu 的干燥和湿润表面之间相互作用的研究。构成 S1 顶端的三个糖苷单体:6VSB、6VXX 和 6X6P,以不同的取向和表面排列吸附在干燥和湿润的 CuO(111)和 Cu(110)上。这些单体与表面之间的结合能存在很大差异,最大可达 1.3 eV。这些差异取决于:表面类型;表面是干燥还是湿润;糖苷 O 原子指向表面还是远离表面;以及单体的表面排列在较小程度上。所有单体都通过分子吸附强烈结合到表面上,在这个阶段单体中没有键断裂。6VSB 具有较大的吸附能,可达 2.2 eV,这是由于其较大的偶极矩。当表面干燥时,两种材料都能更强烈地结合单体。与湿润时相比,Cu(110)表面干燥时的键平均要强 1 eV。干燥和湿润的 CuO(111)之间的差异较小,约为 0.2 eV。总体而言,本文表明病毒刺突蛋白顶端单体在不同表面上的稳定性非常不同。对于给定的表面,干燥条件下较大的结合能可以解释刺突蛋白表面稳定性取决于水分存在的差异。
