Disentangling Component Dynamics in an All-Polymer Nanocomposite Based on Single-Chain Nanoparticles by Quasielastic Neutron Scattering.

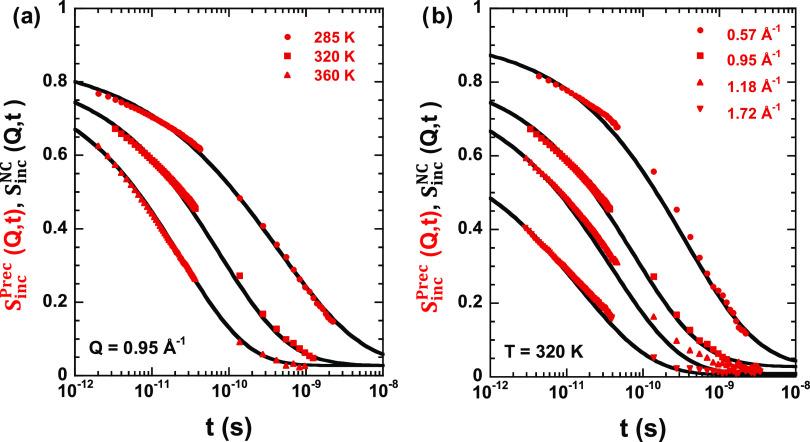

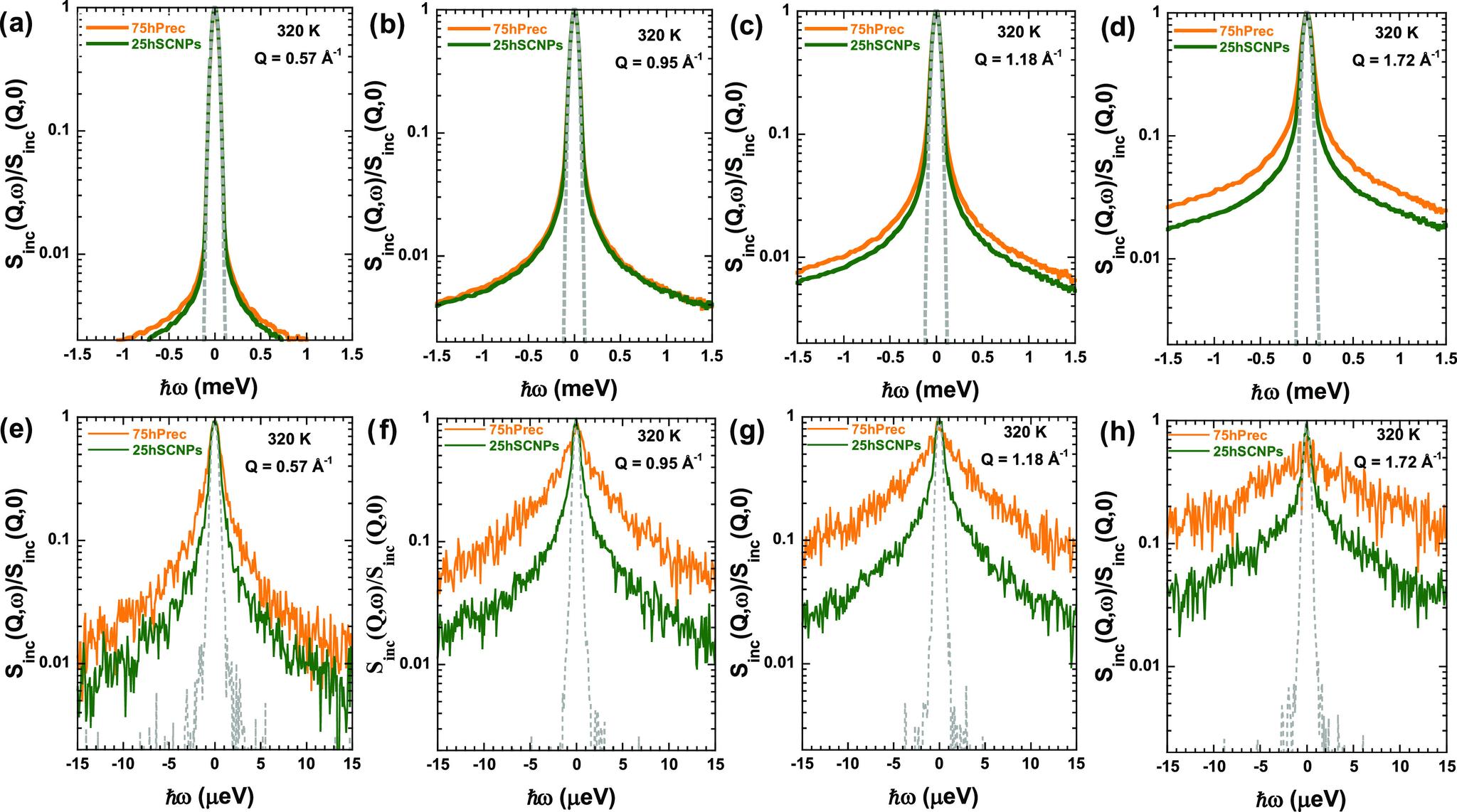

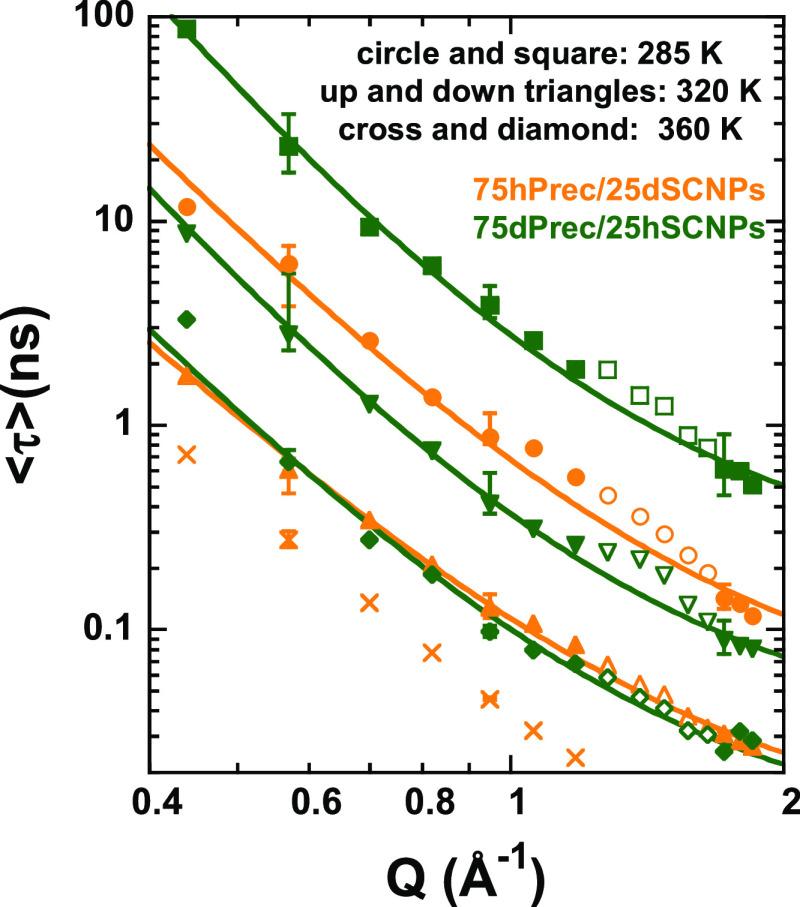

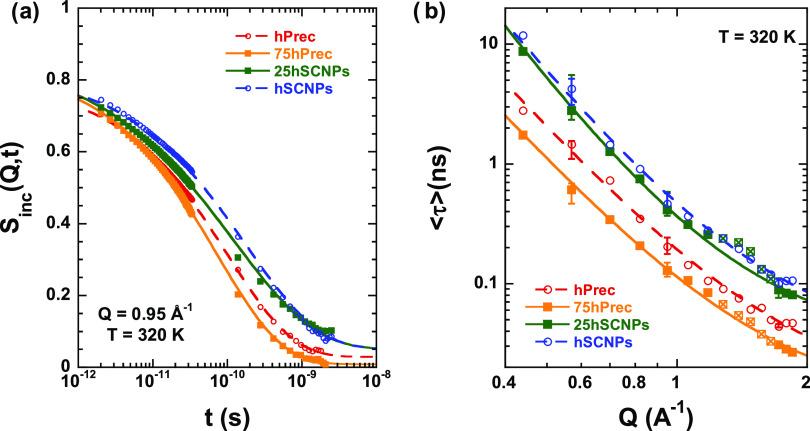

We have investigated an all-polymer nanocomposite (NC) consisting of single-chain nanoparticles (SCNPs) immersed in a matrix of linear chains of their precursors (25/75% composition in weight). The SCNPs were previously synthesized via "click" chemistry, which induces intramolecular cross-links in the individual macromolecules accompanied by a slight shift (5-8 K) of the glass transition temperature toward higher values and a broadening of the dynamic response with respect to the raw precursor material. The selective investigation of the dynamics of the NC components has been possible by using properly isotopically labeled materials and applying quasielastic neutron scattering techniques. Results have been analyzed in the momentum transfer range where the coherent scattering contribution is minimal, as determined by complementary neutron diffraction experiments with polarization analysis. We observe the development of dynamic heterogeneity in the intermediate scattering function of the NC components, which grows with increasing time. Local motions in the precursor matrix of the NC are accelerated with respect to the reference bulk behavior, while the displacements of SCNPs' hydrogens show enhanced deviations from Gaussian and exponential behavior compared with the pure melt of SCNPs. The resulting averaged behavior in the NC coincides with that of the pure precursor, in accordance with the macroscopic observations by differential scanning calorimetry (DSC) experiments.
