Institute of Radiation Medicine, Chinese Academy of Medical Sciences and Peking Union Medical College, Tianjin, People's Republic of China.
Shanghai Institute of Quality Inspection and Technical Research, Shanghai, People's Republic of China.
Int J Nanomedicine. 2022 Mar 25;17:1381-1395. doi: 10.2147/IJN.S353803. eCollection 2022.
Hepatocellular carcinoma (HCC), arising from hepatocytes, is the most common primary liver cancer. It is urgent to develop novel therapeutic approaches to improve the grim prognosis of advanced HCC. 10-hydroxycamptothecin (HCPT) has good antitumor activity in cells; however, its hydrophobicity limits its application in the chemotherapy of HCC. Recently, nanoscale porphyrin metal-organic frameworks have been used as drug carriers due to their low biotoxicity and photodynamic properties.

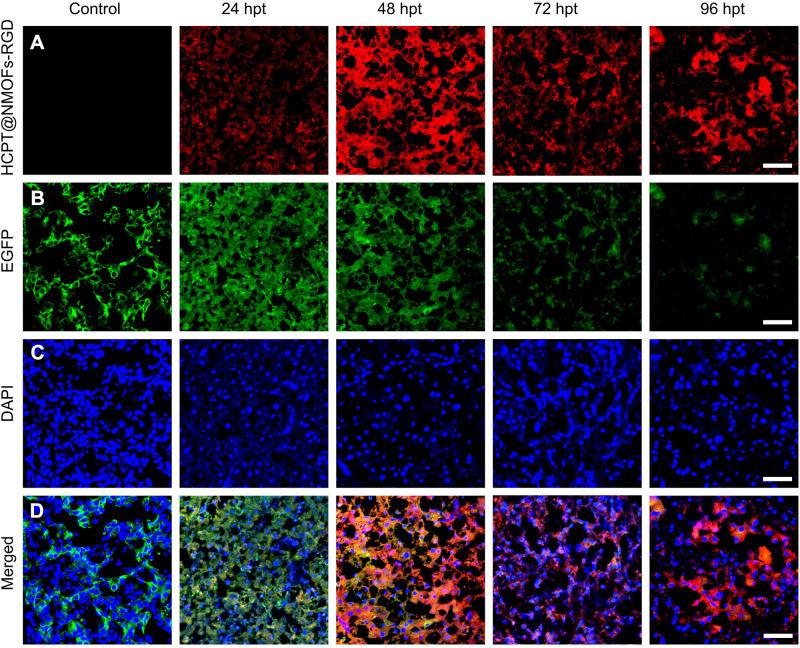

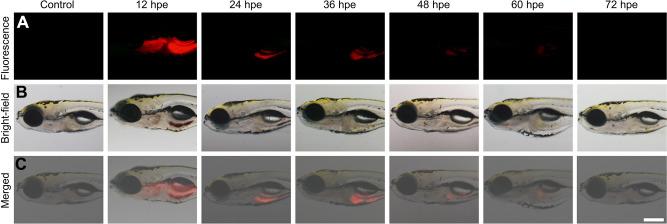

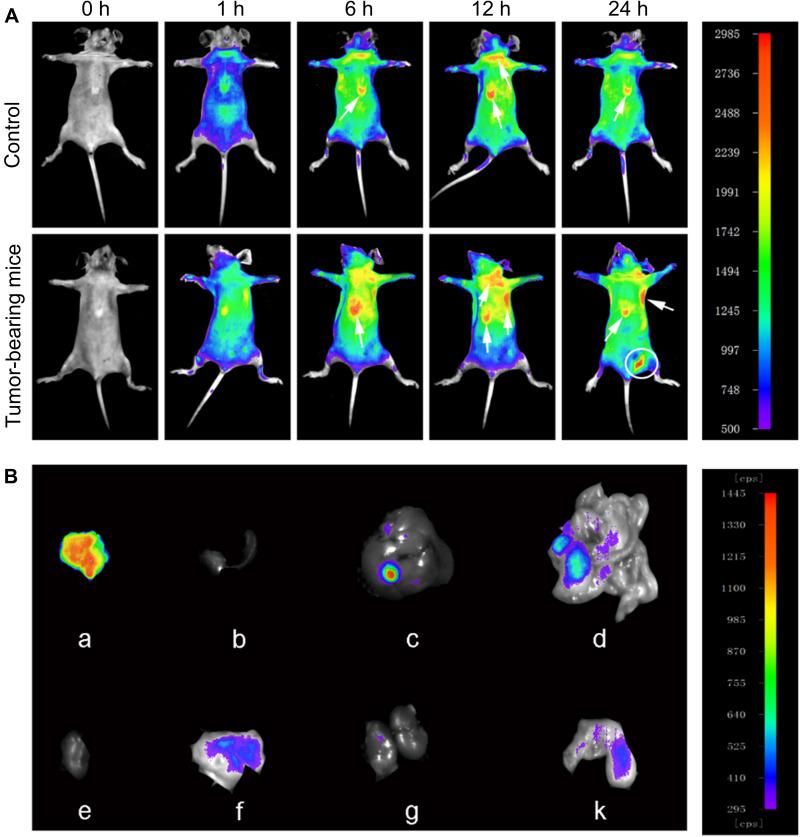

Nanoscale zirconium porphyrin metal-organic frameworks (NMOFs) were coated with arginine-glycine-aspartic acid (RGD) peptide to prepare NMOFs-RGD first. The HepG2 cell line, zebrafish embryos and larvae were used to test the biotoxicity and fluorescence imaging capability of NMOFs-RGD both in vitro and in vivo. Then, NMOFs were used as the skeleton, HCPT was assembled into the pores of NMOFs, while RGD peptide was wrapped around to synthesize a novel kind of nanocomposites, HCPT@NMOFs-RGD. The tissue distribution and chemo- and photodynamic therapeutic effects of HCPT@NMOFs-RGD were evaluated in a doxycycline-induced zebrafish HCC model and xenograft mouse model.

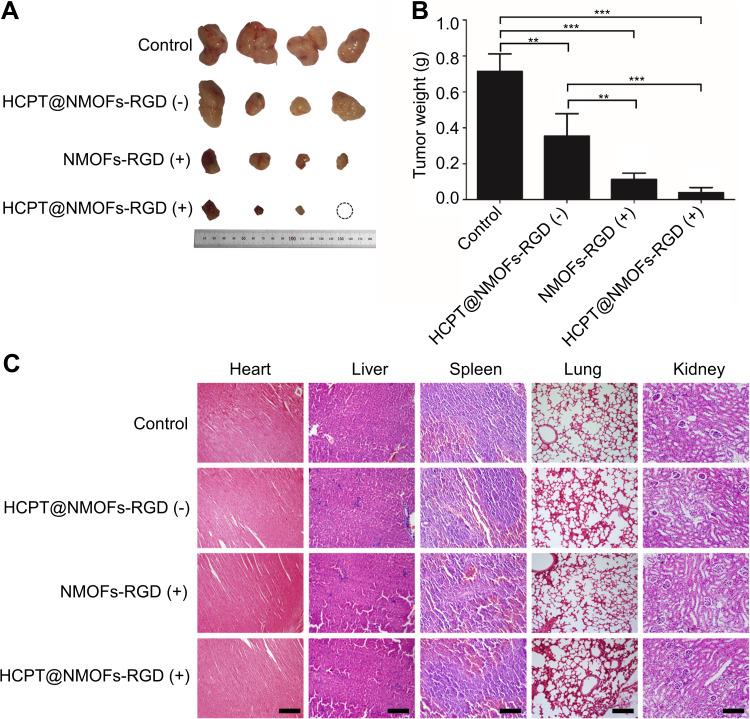

NMOFs-RGD had low biotoxicity, good biocompatibility and excellent imaging capability. In HCC-bearing zebrafish, HCPT@NMOFs-RGD were specifically enriched in the tumor by binding specifically to integrin αβ and led to a reduction in tumor volume. Moreover, the xenografts in mice were eliminated remarkably following HCPT@NMOFs-RGD treatment with laser irradiation, while little morphological change was found in other main organs.
The nanocomposites HCPT@NMOFs-RGD accomplish tumor targeting and play synergistic chemo- and photodynamic therapeutic effects on HCC, offering a novel imaging-guided drug delivery and theranostic platform.
肝细胞癌(HCC)起源于肝细胞,是最常见的原发性肝癌。迫切需要开发新的治疗方法来改善晚期 HCC 的严峻预后。10-羟基喜树碱(HCPT)在细胞中具有良好的抗肿瘤活性;然而,其疏水性限制了其在 HCC 化疗中的应用。最近,纳米卟啉金属-有机骨架由于其低生物毒性和光动力特性而被用作药物载体。
首先用精氨酸-甘氨酸-天冬氨酸(RGD)肽包裹纳米级锆卟啉金属-有机骨架(NMOFs)制备 NMOFs-RGD。体外和体内分别用 HepG2 细胞系、斑马鱼胚胎和幼虫测试 NMOFs-RGD 的生物毒性和荧光成像能力。然后,以 NMOFs 为骨架,将 HCPT 组装到 NMOFs 的孔中,同时包裹 RGD 肽,合成一种新型纳米复合材料 HCPT@NMOFs-RGD。在强力霉素诱导的斑马鱼 HCC 模型和异种移植小鼠模型中评价了 HCPT@NMOFs-RGD 的组织分布及化疗和光动力治疗效果。
NMOFs-RGD 具有低生物毒性、良好的生物相容性和优异的成像能力。在荷 HCC 的斑马鱼中,HCPT@NMOFs-RGD 通过特异性结合整合素αβ特异性富集在肿瘤中,导致肿瘤体积缩小。此外,激光照射后,携带 HCPT@NMOFs-RGD 的异种移植小鼠肿瘤明显消除,而其他主要器官未见明显形态变化。
纳米复合材料 HCPT@NMOFs-RGD 实现了肿瘤靶向,并对 HCC 发挥协同化疗和光动力治疗作用,为肿瘤的靶向治疗提供了一种新的成像指导药物输送和治疗平台。
