以多孔阳极氧化铝膜为模板制备中空管状TpBD共价有机框架和豆荚状ZIF-8/H-TpBD COF管。

Preparation of hollow tubular TpBD COF and pod-like ZIF-8/H-TpBD COF tubes using a porous anodic aluminum oxide membrane as template.

作者信息

He Jiayuan, Mo Rijian, Jiang Guangzheng, He Lei, Zhou Chunxia, Qian Zhong-Ji, Hong Pengzhi, Li Chengyong

机构信息

College of Food Science and Technology, Guangdong Ocean University Zhanjiang 524088 China.

Shenzhen Institute of Guangdong Ocean University Shenzhen Guangdong 518114 China

出版信息

RSC Adv. 2021 Nov 29;11(60):38293-38296. doi: 10.1039/d1ra06062g. eCollection 2021 Nov 23.

DOI:10.1039/d1ra06062g
PMID:35498114
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC9044036/
Abstract

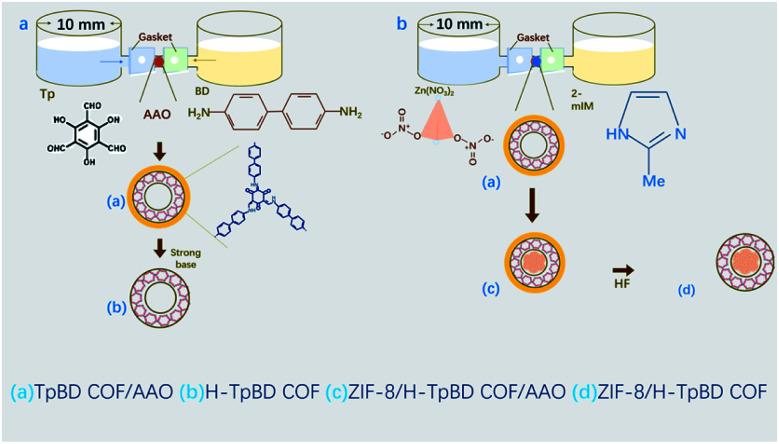

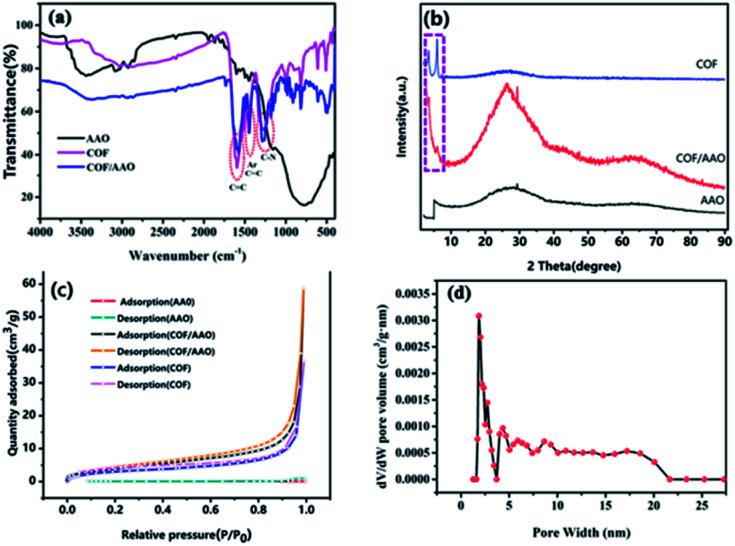

By sacrificing a porous anodic aluminum oxide (AAO) membrane as a template, hollow tubular TpBD (H-TpBD) covalent organic framework (COF) tubes were synthesized and zeolitic imidazolate framework (ZIF-8) nanoparticles were creatively synthesized in H-TpBD tubes at room temperature. H-TpBD COF tubes and ZIF-8/H-TpBD COF tubes were procured by using a strong base or acid to remove the AAO membrane. Then they were analyzed by X-ray diffraction, Fourier infrared spectroscopy, scanning electron microscope, transmission electron microscope, Surprisingly, the obtained TpBD COF has a very small aperture (1.8 nm), thinner tube thickness (50 nm), high stability, and a smooth and homogeneous surface. And the pod-like ZIF-8/H-TpBD COF with complete tubular structure was also obtained.

摘要

通过牺牲多孔阳极氧化铝（AAO）膜作为模板，合成了中空管状的TpBD（H-TpBD）共价有机框架（COF）管，并在室温下于H-TpBD管中创造性地合成了沸石咪唑框架（ZIF-8）纳米颗粒。通过使用强碱或强酸去除AAO膜来获得H-TpBD COF管和ZIF-8/H-TpBD COF管。然后通过X射线衍射、傅里叶红外光谱、扫描电子显微镜、透射电子显微镜对它们进行分析。令人惊讶的是，所获得的TpBD COF具有非常小的孔径（1.8纳米）、更薄的管壁厚度（50纳米）、高稳定性以及光滑且均匀的表面。并且还获得了具有完整管状结构的豆荚状ZIF-8/H-TpBD COF。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/643f73a19b5b/d1ra06062g-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/107e4605416e/d1ra06062g-s1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/da16799be811/d1ra06062g-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/06cab0f965ae/d1ra06062g-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/bd3e1dc188ad/d1ra06062g-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/80dff4c1040f/d1ra06062g-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/643f73a19b5b/d1ra06062g-f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/107e4605416e/d1ra06062g-s1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/da16799be811/d1ra06062g-f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/06cab0f965ae/d1ra06062g-f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/bd3e1dc188ad/d1ra06062g-f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/80dff4c1040f/d1ra06062g-f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/fb92/9044036/643f73a19b5b/d1ra06062g-f5.jpg
